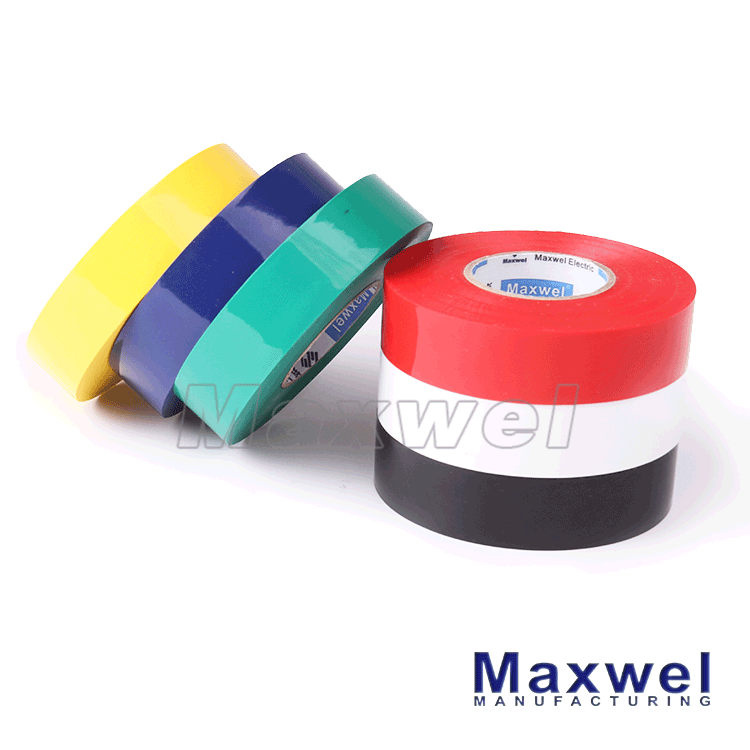

PVC Insulation Tape for Pipe

Name: PVC Insulation Tape for Pipe
Brand: all-electronics-online.com
SKU: 704122265
Availability: InStock
Rating: 4.3 (90 reviews)

Price:	US $ 0.073/Roll
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Roll
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	PVC Tape
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Backing:	PVC
Adhesive:	Rubber
Thickness:	0.19mm
Elongation:	200%
Temperature:	80 Degree
Tensile(N/Cm):	30
Common Size:	19mm0.13mm10 Yard
Adhension(N/Cm):	1.5
Voltage Breakdown:	More Than 40kv/Mm
Features And Application:	Wrapping Electric Wires and Cables
Application:	Electrical Winding Insulation
Type:	Insulation Tape
Chemistry:	Hybrid Insulation
Thermal Rating:	250 250
Maximum Voltage:	>100KV
Material:	PVC

Product Description

PVC Insulation Electrical tape

The common exporting size is 0.19mm*0.13mm*10 yard

Features:
1. Width: 18, 19, 20, 25, and 50mm
2. Total thickness: 0.15mm
3. Raw material: Vinyl film
4. Tensile: 15N/cm
5. Elongation: ≤ 260
6. Dielectric strength: ≥ 25kV/mm
7. Colors: Black, yellow, and red

Available in log rolls and finished cutting rolls
Excellent elongation and dielectric strength, no residue
Suitable for wrapping electrical wires, cables, and automobile harness
With RoHS certifications
Quality guarantee!
Competive price!
Promot delivery!
Perfect serice!
Standard exporting package
Free samples are provided, frieght collect

Code	Backing	Adhesive	Thickness (mm)	Adhesion (N/cm)	Tensile (N/cm)	Elongation (%)	Temperature (°C)	Voltage Breakdown (KV/mm)


100D	PVC	rubber	0.1	1.5	14	160	80	≥40
110D	PVC	rubber	0.11	1.5	15	160	80	≥40
130D	PVC	rubber	0.13	1.5	17	160	80	≥40
150D	PVC	rubber	0.15	1.5	22	200	80	≥40
165D	PVC	rubber	0.165	1.5	25	200	80	≥40
180D	PVC	rubber	0.18	1.5	28	200	80	≥40
190D	PVC	rubber	0.19	1.5	28	200	80	≥40
200D	PVC	rubber	0.2	1.5	30	220	80	≥40
100Z	PVC	rubber	0.1	1.5	14	160	80	≥40
110Z	PVC	rubber	0.11	1.5	15	160	80	≥40
130Z	PVC	rubber	0.13	1.5	17	160	80	≥40
150Z	PVC	rubber	0.15	1.5	22	200	80	≥40
165Z	PVC	rubber	0.165	1.5	25	200	80	≥40
180Z	PVC	rubber	0.18	1.5	28	200	80	≥40
190Z	PVC	rubber	0.19	1.5	28	200	80	≥40
200Z	PVC	rubber	0.2	1.5	30	220	80	≥40

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
