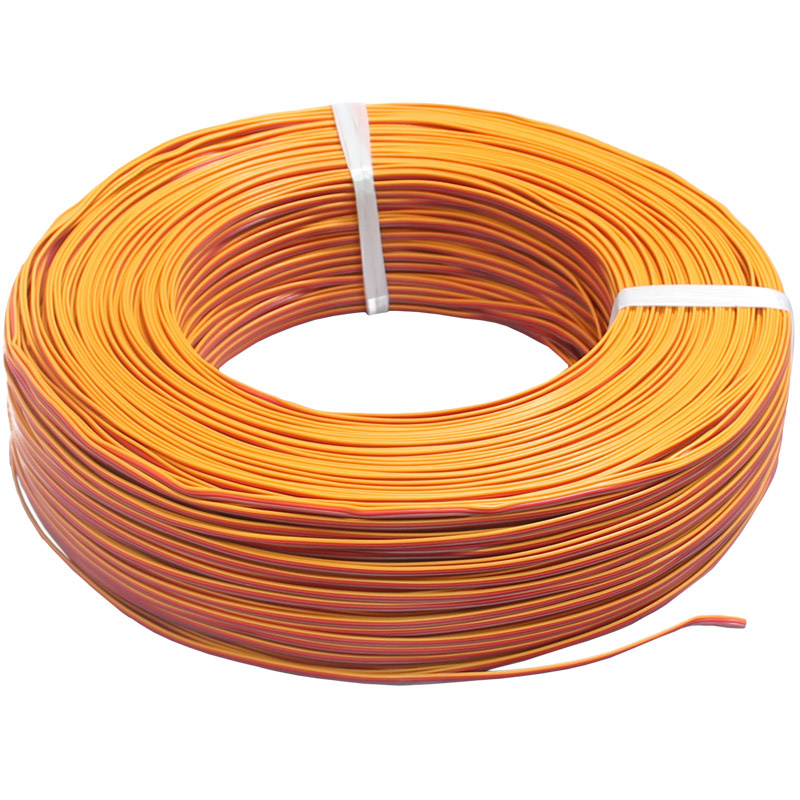

PVC Parallel Power Cable (PDW08)

Name: PVC Parallel Power Cable (PDW08)
Brand: all-electronics-online.com
SKU: 739660115
Availability: InStock
Rating: 4.7 (134 reviews)

Price:	US $ 0.05-10/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PDW08
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PVC Parallel Power Cable:	(Pdw08)
Type:	Insulated
Application:	Underground
Certification:	SGS
Conductor Type:	Stranded
Insulation Material:	PVC
Brand:	Dewei
Conductor Material:	Tinned Copper&Bare Copper

Product Description

pvc parallel power cable(PDW08
Nominal Voltage:300V
Rated Temperature :60ºC,75ºC,90ºC,105ºC
Conductor:Tinned copper&bare copper
Insulator:PVC
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect

NOTE:
first style and second style for ues in the household clocks,fans,radios and similar appliance
thirty style for heavy -duty use in dample locations,especially suitable for refrigerators and room--size air conditioners.
fourth style for use in chain link of chain suspended light-ing fixtures

Style	No.of core	AWG	con.of conductor.(MM)	Thickness of insulator(MM)	over diameter(MM)	Packing(MT/COIL)
First	2	18#	41/0.08	0.76	2.7*5.4	305
First	3	18#	41/0.08	0.76	2.7*8.0	305
Second	2	18#	41/0.08	1.14	3.4*6.8	305
	2	16#	65/0.0.08	1.14	3.7*7.4	305
	3	18#	41/0.0.08	1.14	3.5*8.6	305
	3	16#	65/0.08	1.14	3.8*9.6	305
Third	2	18#	41/0.08	1.52	4.4*8.7	305
	2	16#	65/0.08	1.52	4.8*9.8	150
	2	14#	41/0.08	2.03	6.0*12.0	150
	2	12#	65/0.08	2.41	7.4*14.0	150
	2	10#	104/0.08	2.79	9.1*18.2	150
	3	18#	41/0.08	1.52	4.4*10.7	305
	3	16#	65/0.08	1.52	4.8*11.8	150
	3	14#	41/0.08	2.03	6.0*14.5	150
	3	12#	65/0.08	2.41	7.4*16.5	150
	3	10#	104/0.08	2.79	9.1*18.8	150
Fourth	2	18#	41/0.08	1.02	3.3*5.8	305

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
