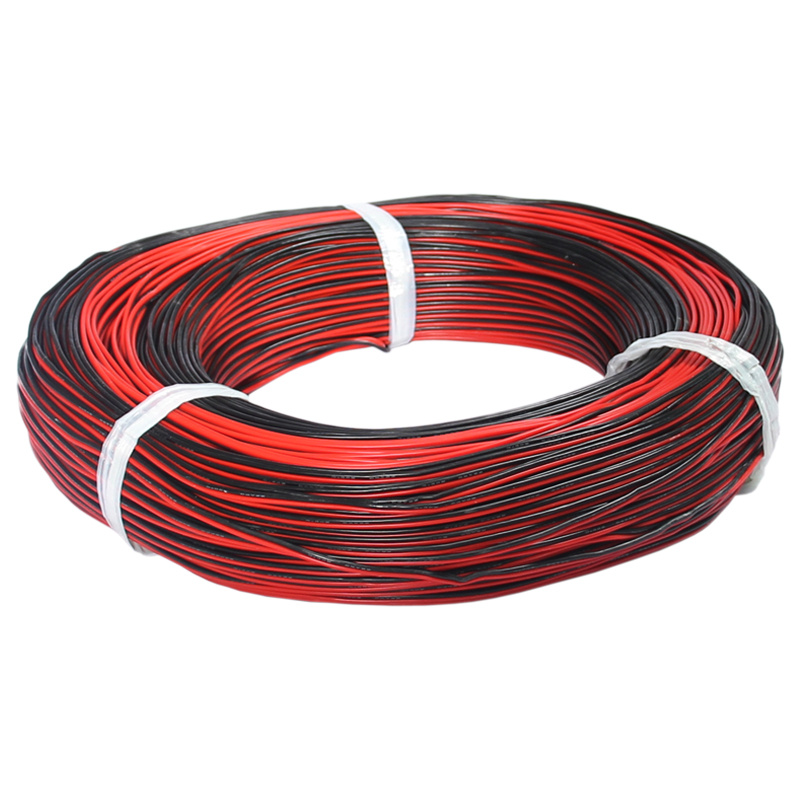

PVC Parallel Wire (24AWG PDW07)

Name: PVC Parallel Wire (24AWG PDW07)
Brand: all-electronics-online.com
SKU: 755793255
Availability: InStock
Rating: 4.9 (67 reviews)

Price:	US $ 0.05-8/Meter
Trade Terms:	FOB
Min Order:	3000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	PDW07
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PVC Parallel Cable(Pdw07)--24AWG:	(Pdw07)--24AWG
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Brand:	Dewei Wire

Product Description

Pvc parallel cable(PDW07)--24AWG

Nominal Voltage: 300V
Rated Temperature: 80º C

Conductor: Tinned copper&bare copper
Insulator: PVC
O. D. Tolerance: ± 0.10mm

Color: Black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow. Ect
Con. Of conductor.: 11/0.16
No. Of core: 2

Thickness of insulator: 0.41MM
Over diameter: 1.5*3.0MM

Packing: 610M/COIL

AWG	con.of conductor.	no.of core	Thickness of insulator	over diameter	Packing
AWG	NO/mm		mm	mm	mt/coils
26#	7/0.16	2	0.41	1.3*2.6	610
24#	11/0.16	2	0.41	1.5*3.0	610
22#	17/0.16	2	0.41	1.7*3.4	610
20#	26/0.18	2	0.41	1.9*3.8	610
18#	41/0.18	2	0.41	2.2*4.4	610

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
