| Prod Model: |
pvc Sheathed cable |
| Name: |
PVC Sheathed Flexible Control Fire Alarm Cable |
| Insulation: |
PVC |
| Color: |
Red; Also Available with a Black or Orange Jacket |
| Rated Voltage: |
300/500V |
| Temperature Range: |
-50 to +80c |
| Flame Retardant: |
VDE 0482-332-1-2/IEC 60332-1 |
| Standard: |
Ekm71573 Ekm71100, Ekm71373 |
| Minimum Bending Radius: |
Flexing Inf. 7,5 X Cable Diameter |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Brand: |
Jiukai or OEM |
Product Description

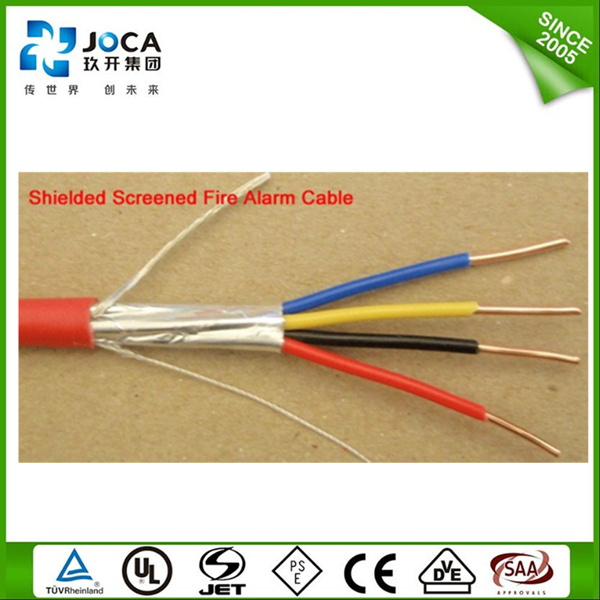

PVC Sheathed Flexible Control Cable Fire Alarm Cable
Product Description & ParametersFor internal wiring in switchboard of electrical applicance & wiring board of power distribution unit, connecting
FPLP Unshielded Fire Alarm Cable Compliances:
- NEC Article 760
- UL Type FPLP (UL: 75°C, 300V)
- California State Fire Marshall Approved
- Designed to meet NFPA 262 and CSA FT-6 Steiner Tunnel Fire Tests for Plenum Applications

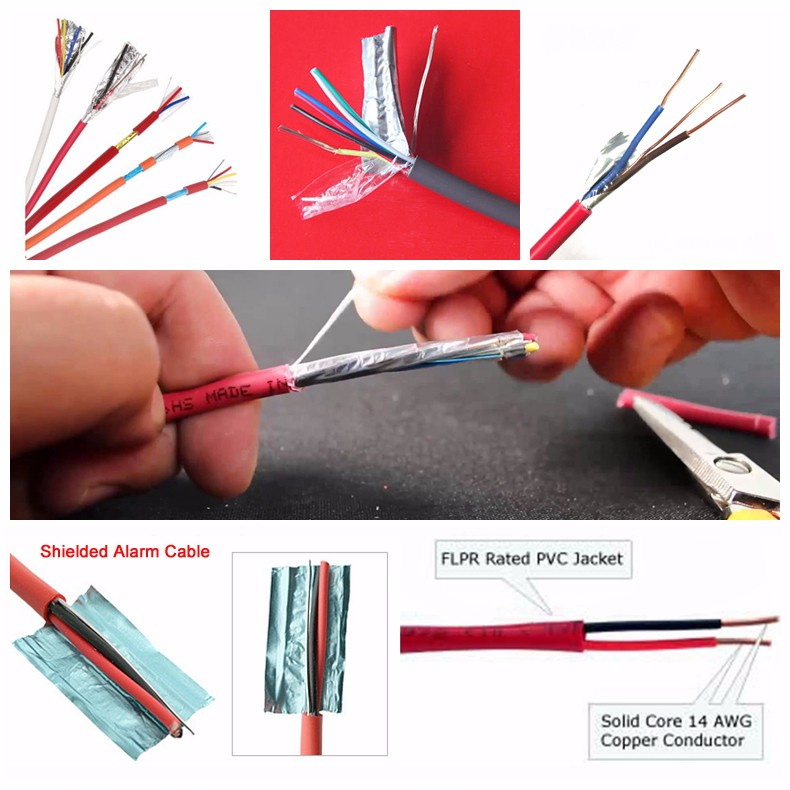

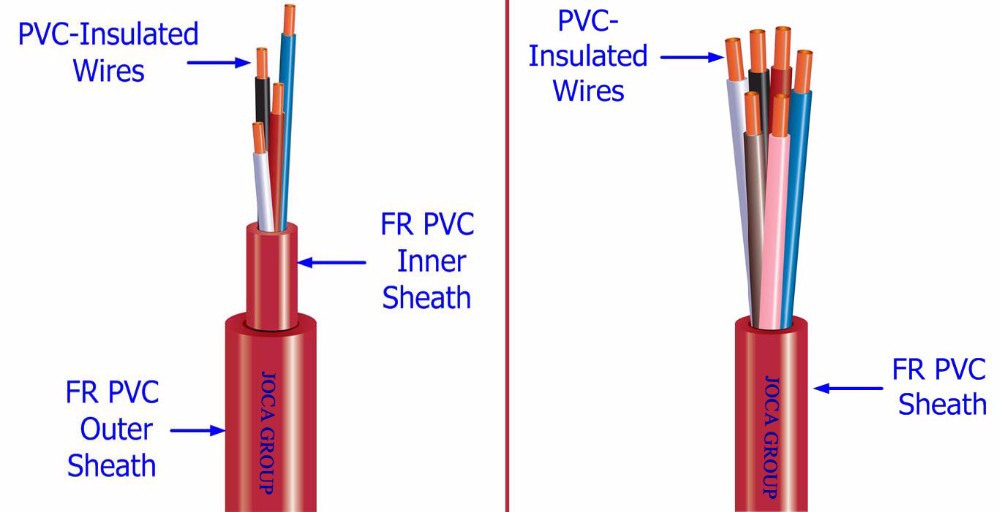

FPLP Unshielded Fire Alarm Cable Construction:
- Conductor:
- Solid Bare Copper, Fully Annealed per ASTM B3
- Insulation:
- Premium Grade, Color-Coded, Polyvinylchloride (PVC)
- Color Code Chart for Unshielded Plenum Alarm Cable (FPLP Cable)
| Wire | Color | Wire | Color |
|---|
| 1st | Black | 4th | Blue |
| 2nd | Red | 5th | Orange |
| 3rd | Brown | 6th | Yellow |
- Jacket:
- Red Premium-Grade Polyvinylchloride (PVC)
- Temperature Range: 0°C to +75°C
- Sequential footage markings to facilitate installation
- Includes ripcord
FPLP Unshielded Fire Alarm Cable Applications:
- Wiring of fire alarms
- Smoke detectors
- Voice communications
- Burglar Alarms
- Fire protective circuits
- Suggested Voltage Rating: 300 Volts
Packaging & ShippingPackaging Details:Delivery Detail:
Package:
1. Plastic/Wooden Drum: 100M/Roll,500M/Roll,1000M/Roll.
2. According to customer requiremet. |
| 7-15 days |

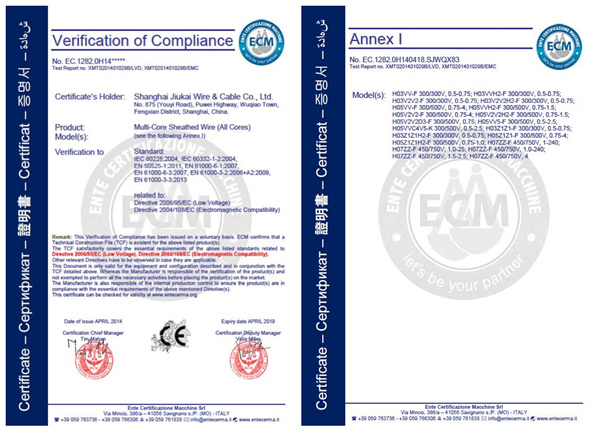

CertificationWe passed UL, CCC, CE, VED etc. CE NO.2010-C181-LVD
I will give you copy of certification if you need more information.
Related Produce1: Solar Cable
2: Electric Vehicle Charging Cable
3: Elevator Cable
4: Coaxial Cable
Why Choose Us:We are a professional wire and cable manufacturer
Quality control: Our defective products rate is 0.01%
Economically priced, exquisitely made
Adequate supply capacity, punctual delivery time
Best of sales service are provided
Company information
Shanghai Jiukai Wire & Cable Co., Ltd is a national high and new tech enterprise. We consistently dedicate to the R&D, production and sales of wires and cables. We are professional HV&LV power cables, LV electrical wires and security cables in China. We introduce the most advanced automatic production lines, first-class testing & inspection equipments and laboratory for cable security test and application test. We have the technical team of local & overseas experts in cable industry. Strict quality control and safety policy ensures our products meet and exceed the GB industry standards. Our Cables are well sold to Americas, Europe, Middle-east, Southeast Asia and Africa. We establish the strategic partnership with many global electronic enterprises. We mainly produce nearly 10 categories (thousands of kinds) cables, such as audio & video cable, elevator cable, data cables, computer cable, CAT5E LAN cable , CAT 6 LAN cable, solar PV cable, UL wire, flexible cable and special cable. All our cables has already got the certificates of national or international professional testing organizations,such as China CCC certificate , US UL certificate , European Union CE Certificate , German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Re-contract And Trustworthy Enterprise ","Measurement Qualified Enterprises" , "China Top Brand" and "China Cable Manufacturer TOP 100 ".
FAQQ: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
Contact UsIf you have another question about PVC Sheathed Flexible Control Cable Fire Alarm Cable, pls feel free to contact us as below:
...All the cables are certificated by CCC, and some are listed by UL, VDE, TUV, we look forard to more scale co-operation with Jiukai as their good quality items&competitive price..."
----Alex Jones, G. M of Saudi Cable Wholesaler
Jiukai holding group is a collection of science, industry and trade as one of the enterprise group. Group total registered capital of 250 million yuan, covers an area of 180000 square meters, construction area of 100000 square meters. Group have cables in today's domestic and foreign advanced equipment, more than 800 sets, the annual production capacity of 1.6 billion yuan, staff more than 600, national and over seas has nearly 30 offices or branches. Group core subsidiary Shanghai jiukai wire and cable Co., Ltd., Jiukai communication technology (Shanghai) Co., Ltd., Wuxi qunxing wire cable Co., Ltd.
Shanghai Jiukai Wire & Cable Co., Ltd is a professional manufacturer of wires & cables, including Electrical Cable, Low Voltage/Medium Voltage/ High Voltage Power Cable, Speaker Cables, Telephone Cable, RF Cable, Solar Cable, Building Wire, UL approved Cable, CE approved Cable, Welding Cable, Submersible Pump Cable. Conductor materials are varied from tinned copper, bare copper, CCA, CCS, aluminium. Insulation & jacket materials are available for PVC, PE, XLPE, Rubber, silicon. Rated voltages are for 300V below, 300/300V, 300/500V, 45/750V, 600/1000V, 3.6/6KV, 10KV, 26/36KV and 36KV above.
