| Prod Model: |
Lib-PVDF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application.: |
PVDF Binder for Li-ion Battery Electrodes |
| Application: |
for Mixing Together with Cathode Powder to Prepare |
| Package: |
Plastic Bag |
| Shape.: |
White Powder |
| Purity: |
>=99.5% |
| Advantage: |
Good Thermo-Stability at Temperature Below 310'c |
| Melting Point: |
160-168'c |
| Melting Indix: |
1-2g/10min |
| Intrinsic Viscosity: |
1.0-2.0dl/G |
| Offer: |
One Stop Service for Li Ion Battery Project |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Boat |
| Discharge Rate: |
High Discharge Rate |
| Rechargeable: |
Chargeable |
| Electrolyte: |
Lithium Battery Materials |
| Shape: |
Lithium Battery Materials |
| Nominal Voltage: |
According Customer Request |
| Installation: |
Lithium Battery Materials |
Product Description

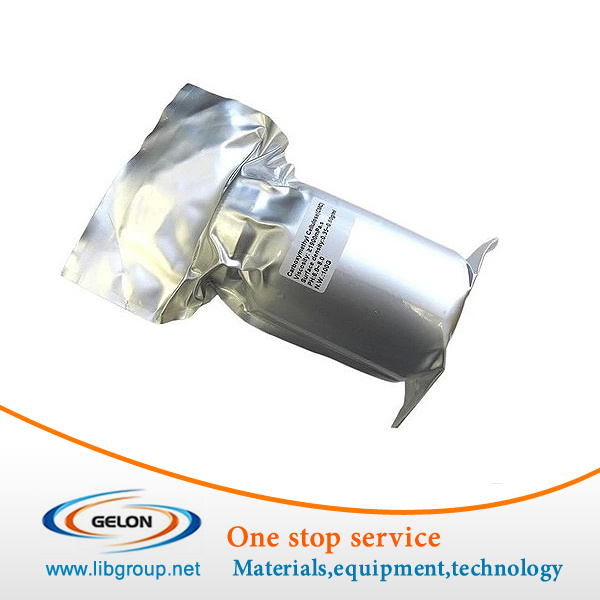

PVDF Binder for Li-ion Battery Electrodes 80g/bag, Lib-PVDF
PVDF (Polyvinylidene fluoride ) binder is for mixing together with cathode powder to prepare Li-ion battery electrode 80g/bag, vacuum sealed in plastic bag
Technical Parameter |
Unit |
Index |
Testing |
Shape |
/ |
White Powder |
/ |
Purity |
% |
≥99.5 |
PVDF |
standard specific gravity |
/ |
1.74~1.77 |
ASTM D 792
@23/ 23ºC |
Dielectric constant |
100MHz
100Hz |
4.50~5.50
8.00~9.50 |
ASTM D150 |
Melting Point |
ºC |
160-168 |
ASTM D 3418 |
Melting Indix |
g/10min |
1-2 |
/ |
Solubility |
/ |
Transparent and dissolvable |
30ºC,1hr
1g/10ml NMP |
Rotation Viscosity |
mPa·S |
≥2000 |
1g/10ml NMP (click to order), 30ºC |
Intrinsic Viscosity |
dL/g |
1.0-2.0 |
DMA, 30ºC |
Moisture |
% |
≤ 0.1 |
Karl Fischer |
Molecular Weight | / | 600,000 | ASTM D 5296-05 |
Note:
PVDF resins have good thermo-stability at temperature below 310ºC. However it will decompose into the toxic
hydrogen fluoride and fluorocarbon if it is idle for a long time at temperature between 310~ 320ºC. It is not suggested
to use PVDF resin at temperature higher than 370ºC because this will accelerate the decomposition velocity in such
a environment. Besides, please keep in mind that PVDF resin will release toxic hydrogen fluoride and fluorocarbon when it burns.
We can provide a full range of lithium battery materials and equipment
1.)full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

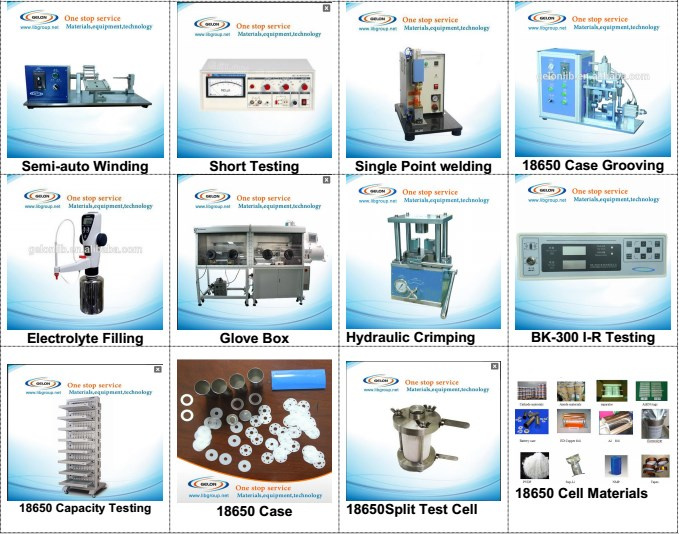

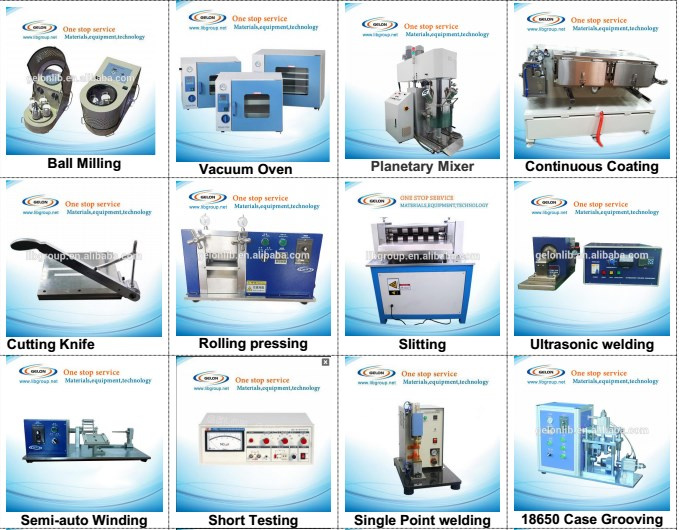

2.)full set of lithium battery equipment,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutting machine --winding machine--sealing machine,etc.
3)full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
What's our advantage:
a: full set of products chain from lithium ion battery materials, equipment, battery production technology;
b. 10 years lithium ion battery working experiences
c. more than 9 years exporting experiences and 6 years golder supplier in Alibaba
d. Strong teams for markets and agents, and customers all over the world from Asia,American, Europe. Middle east etc;
Choose us means you choose the all-powerful partner for your business
More details please check here:
Bolivia News Videos:
http://v.youku.com/v_show/id_XNjg4MTgwOTIw.html
Project Opening:
http://v.youku.com/v_show/id_XNjg5Mzg3NjUy.html
http://v.youku.com/v_show/id_XNjg5OTE5OTMy.html
Contact by
P :86 15106636475
Gelon (Int) LIB Group Ltd. was set up as a manufacturer and exporter in 2007, dealing with lithium battery materials, equipments, technology, etc. Now we have Gelon New Battery Materials Co., Ltd., E-Battery Lithium Battery Co., Ltd., Linyi Dake Trading Co., Ltd., with total manufacturing facilities of around 100, 000 square meters and more than 500 staff. Owning a group of experienced engineers and staff, we can bring you not only reliable products and technology, but also excellent services and real value you will expect and enjoy.
Gelon New Battery Materials Co., Ltd. Focus on R&D, manufacturing and sales of new materials (anode, cathode, separator, additive etc. ) for lithium ion battery, and we also offer full sets of materials solution to customers. Our preponderant products are Lithium Iron Phosphate(LiFePO4), Lithium Manganese Dioxide(LiMn2O4), Lithium Cobalt Oxide(LiCoO2), Lithium Nickel Manganese Cobalt Oxide(LiNiMnCoO2), Lithium Titanate Oxide(LTO) materials; Graphite materials (MCMB) and separator and so on for new power lithium ion batteries.
Meanwhile, we have our own lithium ion battery factory- E-Battery Co., Ltd., mainly produces lithium ion battery for camera, mobile, EV application. Based on the factory, we can offer all services (Raw Materials, Equipments, Technology, etc. ) for full set of lithium battery producing line to help clients to establish a factory of lithium battery.
Our group also has a subsidiary exporting company -- Linyi Dake Trade Co., Ltd, mainly deals in all exporting business of group. We have a professional and experienced exporting team to supply perfect services for you. Through trading company, all of our products and services such as materials, equipments, technology, etc. Will be offered to clients from all over the world.
We are confidence on our quality and service. And we ensure that we will offer you the best services based on our specialty and empressement. Our aim is to be the comprehensive company dealing with one-stop services of lithium battery in the world.
Welcome batteries manufacturers all over world visit our company, and your inquiry will be appreciated.
