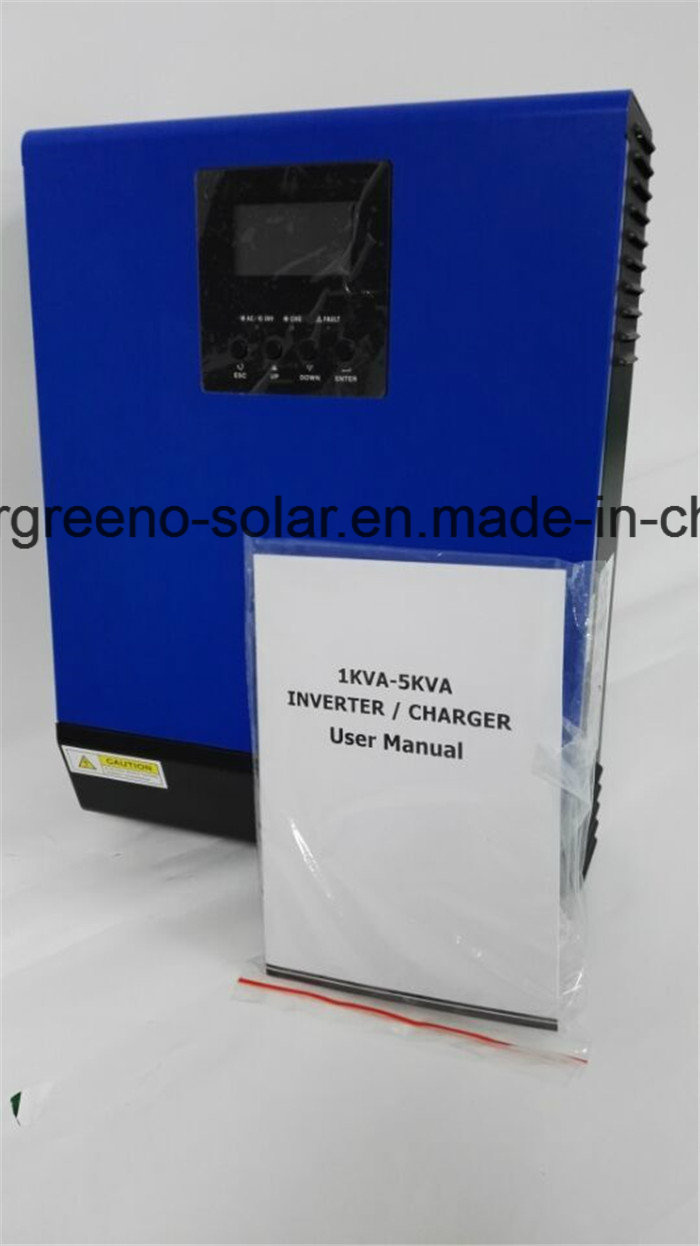

PWM Solar off Grid Inverter 5kw
| Price: |
US $ 380-400/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
LYST-5000W |
| Certificate: |
Ce |
| Input Voltage: |
230V AC |
| Work Time (H): |
100000hours |
| Output Current: |
Load |
Product Description
LYST-5000W 5000VA/4000W off grid solar system
Specifications
Solar Inverter System :Model: LYST-5000W
1.Green Energy
2.Energy-saving products
3.Off grid
4.Certificate:CE,RoHS,TUV, ISO9001
Technical Parameters:
Power:1000VA/800W
Input Voltage:230V AC
Output:110V/220V/230V,50Hz/60Hz(Voltage can changed on the inverter)
Battery Voltage:12V DC
DC Output:110-240V
Qutantity of carton: 1pcs
Product size: 140*295*540mm
Advantages:
1.Safety and easy installation,Plug and play systems;
2.Good quality panel to ensure the high efficiency and long life needs;
3.Solar Automatic lighting controller :with adjustable run times, over-current protection;
4.Solar Batteries: Maintenance free, long life batteries
5.Lighting Source: LED lamp /Lantern (Fixed/Movable)
6.Flexible designs per client requests;
Using of scope:
It is very good for indoor use where there is shortage of electricity and for outdoor activities such as picnicking, fishing and camping. It is an ideal tool for Motor Mechanics, Farm House and small shop owners such as Hairdressers, Barbers, Cobblers, Tailors and Kiosk keepers.
Specifications | ELECTRICAL SPECIFICATIONS |
| Continuous Output | 1.2KW | 800W | 1.6KW | 2.4KW | 2.4KW | 3.2KW | 4.0KW |
| Surge Rating | 5 seconds max, 2X |
| Input Power Factor | 0.8 |
| Input Voltage Range | 90~280VAC (Appliance mode), 170~280VAC (UPS mode) |
| Input/Output Frequency | 50Hz / 60Hz |
| Output Voltage | 230VAC±5% |
| Output Waveform | Pure Sine Wave |
| Output Regulation | < 3% RMS for battery voltage range |
| Peak Efficiency | 93% | 91% | 93% |
| Nominal DC Voltage | 12V | 24V | 48V |
| Max DC Voltage | 16V | 31V | 60V |
| Transfer Time (2 Modes) | <10ms (UPS mode), <20ms (Appliance mode)** |
| Charging Mode | 3-stage |
| Boost Voltage (Flooded, MF) | 14.6V/14.1V | 29.2V/28.2V | 58.4V/56.4V |
| Float Voltage | 13.5V | 27.0V | 54.0V |
| Max AC Charging Current | 60A | 10-20A | 20-30A | 60A |
| No Load Power Consumption | <25W | <50W |
| Power Saving Consumption | <10W | <15W |
| Solar Charger |
| Max PV Input / Output | 500W | 600W | 1500W | 4000W |
| Max Charging Current | 40A | 25A | 60A | 80A |
| Max PV Input Voc, MPPT Range | 100V, 18~80V | 75V, 30~66V | 145V, 30~115V | 145V, 60~115V |
| Algorithm | MPPT |
| ENVIRONMENTAL / MECHANICAL SPECIFICATIONS |
| Certification | CE |
| Operating/Storage Temp. | 0°C ~ 55°C / -15°C~ 60°C |
| Operating Humidity | 5~90%RH Non-Condensing |
| Dimension | 355*272*100mm | 479*295*140mm | 468*295*140mm |
| Net Weight | 7.0Kg | 7.0Kg | 7.1Kg | 7.5Kg | 11.8Kg | 11.5Kg | 11.5Kg |
Fully CE certified. This unit is suitable for wide range of loads and features a galvanic isolated design and supports continuous 24/7 operation. Also supports dual-system priority: utility priority (AC) or solar priority (DC).
PLEASE NOTE:
1. this item is for 220~240vac output only.
2. Unit supports both 50hz and 60hz output, via LCD
3. to purchase a Parallel Kit, please contact us or search in our store. One parallel kit is required for every unit of inverter. (EX.) for 3 unit parallel, you need 3 parallel kits.
Payment and Terms
· We accept T/T, L/C, D/P , Western Union, Paypal, etc (all credit cards accepted via Paypal only) .
Warranty and Contacts:
Standard 1 year product warranty
100% quality check before shipment
Our company is a fast growing company, which is mainly engaged in developing and producing all in one solar street light and other solar products, most of them exported to the Europe, Africa and Middle East and enjoying high reputation among our existing customers due to reliable quality, competitive prices and prompt delivery!
We owns a very strong R/D team, most of engineers hold master or bachelor degrees and have much experience in hardware &software, their expertise enable us to provide our customer professional and full technical support.
Quality assured because each procedure is compliance with ISO9001: 2000 Standard. "Quality is the life of corporation, customers are the wealth of corporation"is our great mission. We commit to total quality! Pursuing innovations of industry and times, we strive to achieve value of corporation, technologies and talents while developing.
Our company also has strong capability on sourcing, manufacturing, processing & developing, so we warmly welcome any kind of OEM partner for long-term and friendly cooperation! We aims not only to expand the business scale but also to provide the best customized products and services to our customers.
Our company will, as before, offer you high quality products, favorable price and perfect follow-up service to develop mutually beneficial business partnership with you in the future, your any inquiry is always welcomed!
