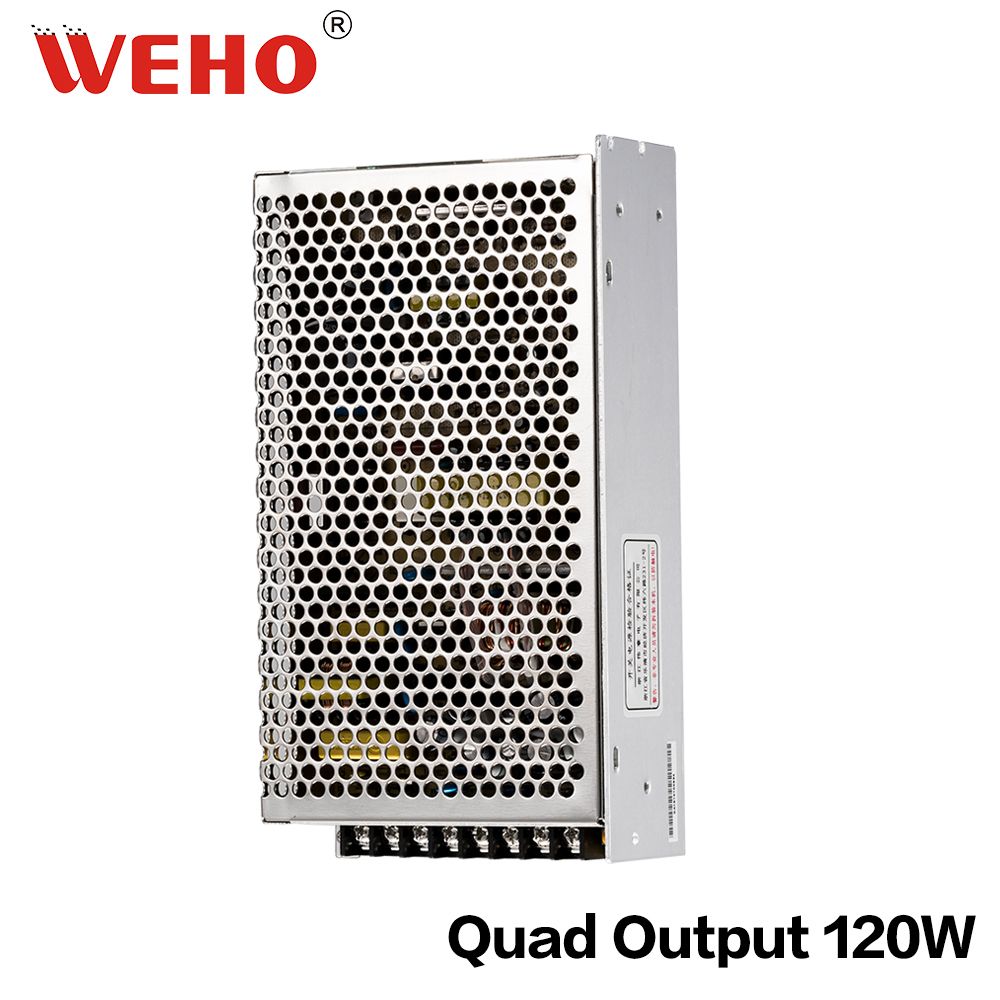

Q-120W 120watt Quad Switching Power Supply

Name: Q-120W 120watt Quad Switching Power Supply
Brand: all-electronics-online.com
SKU: 690895181
Availability: InStock
Rating: 4.8 (66 reviews)

Price:	US $ 11.99-17.99/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q-120
IP Code:	IP20
Test:	100% Full Load Burn-in Test
MOQ:	1-5PCS Sample Order
Payments:	T/T/Western Union/Paypal
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Material:	Aluminium
Service:	24hours on Line
Output Type:	Single
Warranty:	2 Years
Output Power:	101 - 200W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Input Voltage:	110V/220V
Brand:	Weho

Product Description

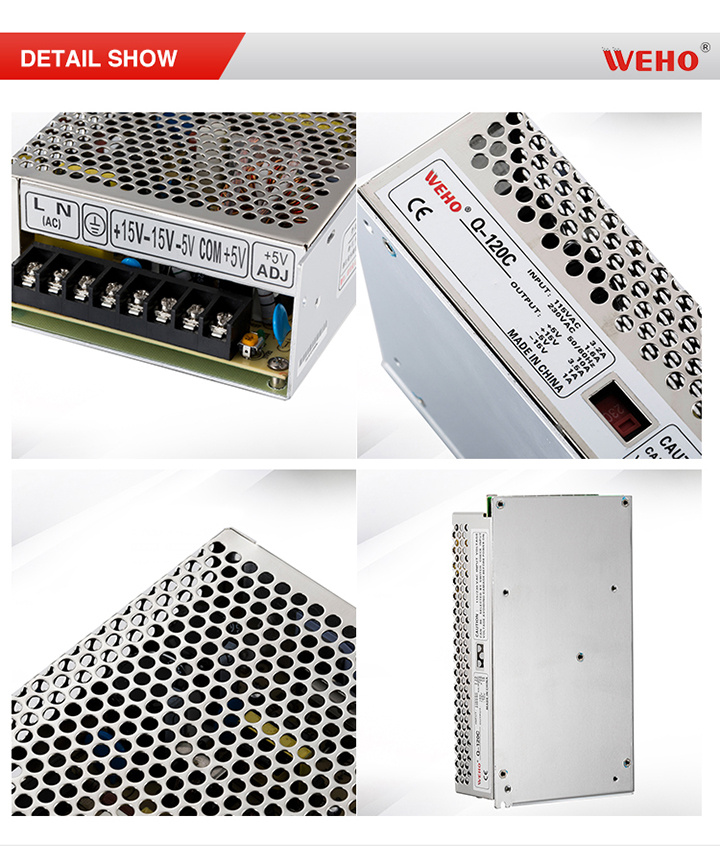

Q-120W 120watt quad switching power supply

Model

Q-120B

Q-120C

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

DC Voltage

12V

-5V

-12V

15V

-5V

-15V

12V

24V

-12V

Voltage Tolerance

±2%

±6%

±2%

+10%, -5%

±6%

+10% ,-5%

±2%

±6%

Rated Current

11A

10A

3.5A

Current Range

2-12A

0.5-5A

0.2-1A

2-12A

0.5-5A

0.2-1A

2-12A

0.2-5A

0.2-2A

0.2-1A

Ripple & Noise

80 mVp-p

120 mVp-p

80 mVp-p

120 mVp-p

80 mVp-p

150 mVp-p

80 mVp-p

150 mVp-p

80 mVp-p

120 mVp-p

180 mVp-p

120 mVp-p

DC Adjustment Range

CH1:-5%,+10%

Setup,Rise,Hold Time

200ms, 50ms, 20ms at full load

Voltage Range

88~132 VAC / 176~264 VAC47-63Hz;selected by switch 240~370VDC

AC Current

2.8A/115 V1.6A/ 230 V

Efficiency

77%

76%

80%

Inrush Current

Cold start 35A

Leakage Current

<3.5mA/240VAC

Over Load

105%~135%

Protection type: Shut down o/p voltage, re-power on to recover

Over Voltage

CH1:115%~135%

Protection type: Shut down o/p voltage, re-power on to recover

Working Temp., Humidity

_10~+50 20%~90 %RH

Storage Temp., Humidity

-20~+85 10%~95 %RH

Vibration

10~500Hz,2G 10min./1cycle, period for 60min, each along X, Y, Z axes

Withstand Voltage

I/P-O/P:3KVACI/P-FG: 1.5KVACO/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

Safety Standard

Design refer to 1950,TUV EN60950

EMC Standard

Design reefer to EN55022(CISPR22),EN61000-3-2,-3,EN55024,EN61000-4-2,3,4,5,6,8,11; ENV50204

Weight

0.9Kg

Packing

42*31.5*26CM/20PCS/18KG
