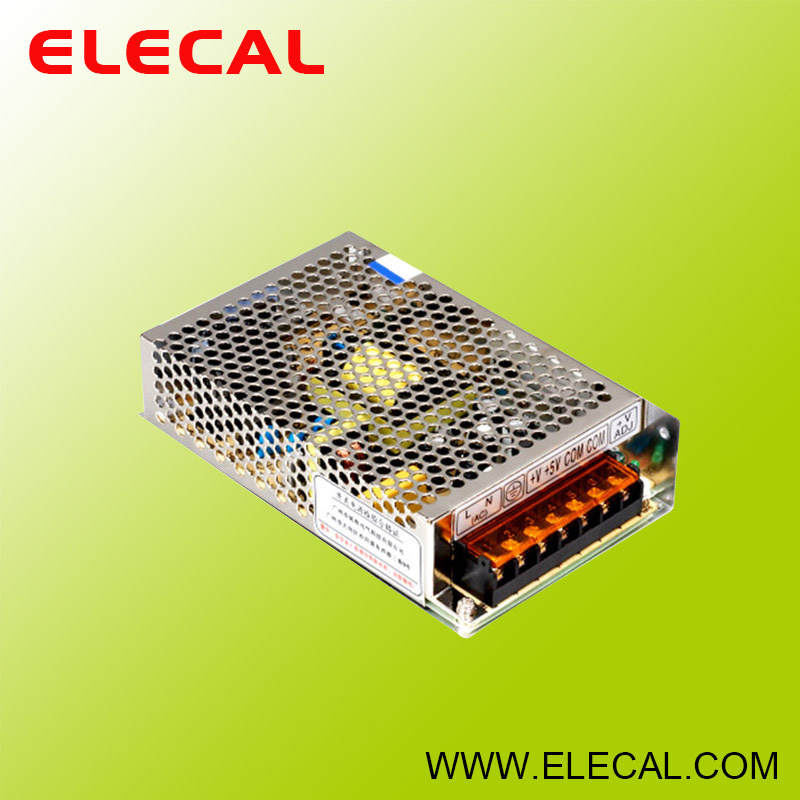

Q-60 Multiple Output Switching Power Supply

Q-60 Multiple Output Switching Power Supply
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: T/T
Contact Supplier
Showroom Product Company Profile
Prod Model: Q-60
Frequency Range: 47-63Hz
Warranty: 2 Years
Certification: CE
Output Type: Multiple Output
Output Power: 60W/62W
Input Voltage: 85-264VAC 120-370VDC
Brand: Elecal

Product Description

MODELQ-60BQ-60CQ-G0D
OUTPUTOUTPUT NUMBERCH1CH2CH3CH4CH1CH2CH3CH4CH1CH2CH3CH4
DC VOLTAGE5V12V-5V-12V5V15V-5V-15V5V12V24V-12V
RATED CURRENT5.5A2A0.5A0.5A5.5A1.5A0.5A0.5A4A1A1A0.5A
CURRENT RANGE0.5-8A0.1-3A0-1A0-1A0.5-8A0.1-3A0-1A0-1A0.5-8A0.1-3A0.1-1.5A0-1A
RATED POWER60W60W62W
RIPPLE & NOISE (max.) NOto.2100mVp-p120mVp-plOOinVpi}120mVp-p100mVp-p120mVp-plOOmVpi)120mVpf100mVp-p120mVp-p150mVM»120mVp^
VOLTAGE ADJ. RANGECH1:4.75-5.5VCH1:4.75 _ 5.5VCH1:4.75 _ 5.5V
VOLTAGE TOLERANCE Note.3±2.0%±6.0%±5.0%+5.0%±2.0%+8,-4%±5.0%±5.0%±2.0%±6.0%+8,-4%±5.0%
LINE REGULATION+0.5%±1.0%+0.5%+0.5%+0.5%±2.0%+0.5%+0.5%±0.5%±1.0%12.0%+0.5%
LOAD REGULATION±0.5%±4.0%±1.0%±1.0%+0.5%±4.0%±1.0%±1.0%±0.5%±4,0%±4.0%±1.0%
SETUP, RISE TIME800ms, 20ms/230VAC 1600ms, 20ms/115VAC at full load
HOLD UP TIME (TVp.)70ms/230VAC 15ms/115VAC at full load
INPUTVOLTAGE RANGE85 - 264VAC 120-370VDC
FREQUENCY RANGE47-63HZ
EFFICIENCY CTyp-)70% | 72% | 75%
AC CURRENT (Typ.)2A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.)COLD START 15A/115VAC 30A/230VAC
LEAKAGE CURRENT<1mA/240VAC
PROTECTIONOVERLOAD105 - 150%/115VAC rated output power
Protection type: Hiccup mode, recovers automatically after fault condition is removed
OVERVOLTAGE5V;5.75~6.75VDC
Protection type: Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENTWORKING TEMP.-10 - +60°C {Refer to "Derating Curve")
WORKING HUMIDITY20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY-20-+85r, 10-95% RH
TEMP. COEFFICIENT±0.03%rc {O ~ 50SC) on +5V output
VIBRATION10 ~ 500Hz, 2G 10min./1 cycle, 60min. each along X, Y, Zaxes
SAFETY &
EMC (Note 4)		SAFETY STANDARDSUL60SS0-1 approved
WITHSTAND VOLTAGEl/P-0/P:3KVAC l/P-FG:1.5KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCEl/P-O/P, l/P-FG, O/P-FG:100M Ohms / 500VDC /25eC/ 70% RH
EMC EMISSIONCompliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITYCompliance to EN610004-2,3,4,5,6,8,11, light industry level, criteria A
OTHERSMTBF284_8K hra min. MiL-HDBK-217F{25
DIMENSION159*97*38mm (L*W*H)
PACKING0.56Kg; 24pcs/14.4Kg/0.7SCUFT
NOTE1. All parameters hJOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 1T twisted pair-wire tfirminatsd with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : indudes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment
