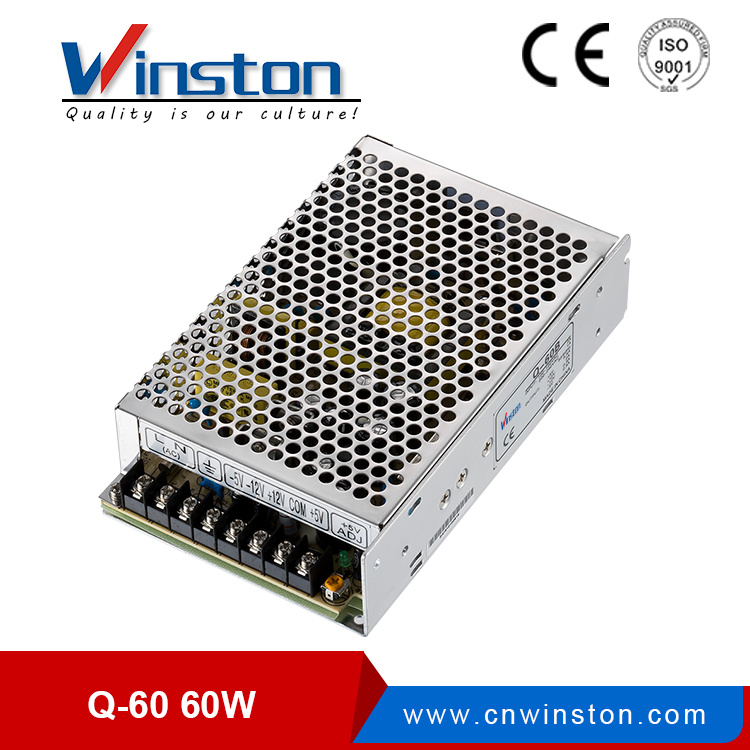

Q-60W Series Quad Output Switching Power Supply with Ce
Price: |
US $ 9.68-11.44/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
100/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Prod Model: |
Q-60B, Q-60C, Q-60D |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
Product Size: |
159*98*38mm |
Weight: |
0.55kg,0.88kg |
Output Voltage: |
5V/12V/-5V/-12V |
Output Frequency: |
47-63Hz |
Manufacturer: |
OEM |
Condition: |
Original New |
Output Type: |
Quad |
Warranty: |
2 Years |
Input Voltage: |
220V |
Connection Mode: |
Series Switching Power Supply |
Starting Mode: |
Separate-excited Switching Power Supply |
Voltage Regulating Mode: |
Width Modulation Type |
Power Supplying System: |
Level 1 Power Distribution Equipment |
Certification: |
CE |
Output Power: |
60W,120W |
Brand: |
Winston |
Product Description
Quad output switching power supplyDescriptionModel: Q-60B, Q-60C, Q-60D,
Power: 60W 120W
Input: AC110/220V+-20% Selectable by switch
Output: 5v 12v -5v -12v /5v 15v -5v -15v/5v 12v 24v -12v
Quality guarantee: 2 years after sell
Competitived price and high reliability
105° C Output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effect
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Installed with EMI filter, minimum wave
Technical data MODEL | Q-60B | Q-60C | Q-60D |
DC VOLTAGE | 5V | 12V | -5V | -12V | 5V | 15V | -5V | -15V | 5V | 12V | 24V | -12V |
RATED CURRENT | 0~5.5A | 0~2A | 0~0.5A | 0~0.5A | 0~5.5A | 0~1.5A | 0~0.5A | 0~0.5A | 0-4A | 0~1A | 0~1A | 0~0.5A |
RIPPLE&NOISE | 100m Vp-p | 120m Vp-p | 100m Vp-p | 120m Vp-p | 100m Vp-p | 120m Vp-p | 100m Vp-p | 120m Vp-p | 100m Vp-p | 120m Vp-p | 150m Vp-p | 120m Vp-p |
EFFICIENCY | 70% | 72% | 75% |
INLET WIRE REGULATION | ±0.5% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±2% | ±0.5% | ±0.5% | ±0.5% | ±1% | ±2% | ±0.5% |
LOAD REGULATION | ±0.5% | ±4% | ±1% | ±1% | ±0.5% | ±4% | ±1% | ±1% | ±0.5% | ±4% | ±4% | ±1% |
ADJUSTABLE RANGE FOR DC VOLTAGE | CH1:4.75-5.5V | CH1:4.75-5.5V | CH1:4.75-5.5V |
SETUP,RISE,HOLD UP TIME | 800ms,20ms,60ms/230VAC at full load |
VOLTAGE RANGE | 85-264VAC/120-370VDC |
FREQUENCY RANGE | 47-63HZ |
IMPACT CURRENT | Cold start current 15A/115VAC 30A/230VAC |
OVERLOAD PROTECTION | 105-150% cut offtheoutput, automatic recovery |
OVER VOLTAGE PROTECTION | CH1:115-135% shut down O/P voltage ,re-power on to recover. |
WORKING TEMP | -10~ +60°C |
WITHSTAND VOLTAGE | I/P-O/P:1.5KV I/P-FG:1.5KV O/P-FG:0.5KV 1minute |
ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:500VDC/100M Ohms |
DIMENSION | 159*98*38mm |
WEIGHT | 0.55kg |
PACKING | 34*32*24cm/30pcs/16.5kg |
Dimensions

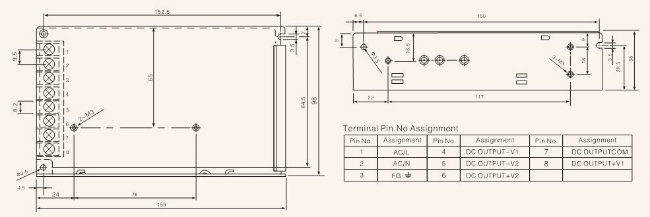

Q-60

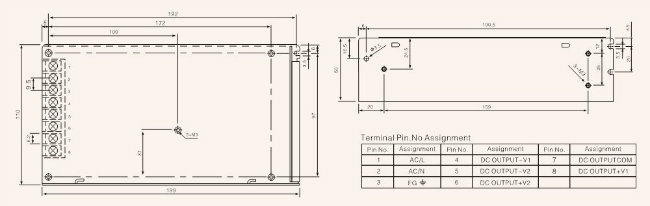

Q-120W
