Q125 2000A High Accuracy Bus Bar AC Clamp on Current Transformer

Prod Model:	Q125
Keyword:	Bus Bar AC Clamp on Current Transformer
Model:	Bus Bar Clamp on Current Transformer
Q125:	2000A Busbar Clamp on Current Transformer
Ratio:	1000: 1 or 2000:1 (Customized)
Accuracy Class:	0.2%, 0.5%, 1%
Primary Current:	0 - 3000A AC
Secondary Current:	0 - 5A AC (Customized)
Weight (G):	1200
Holding Wire Diameter (mm):	120 X 50
Jaw Color:	White
Application:	Instrument
Type:	Current Transformer
Phase:	Single
Insulating Medium:	Polycarbonate

Product Description

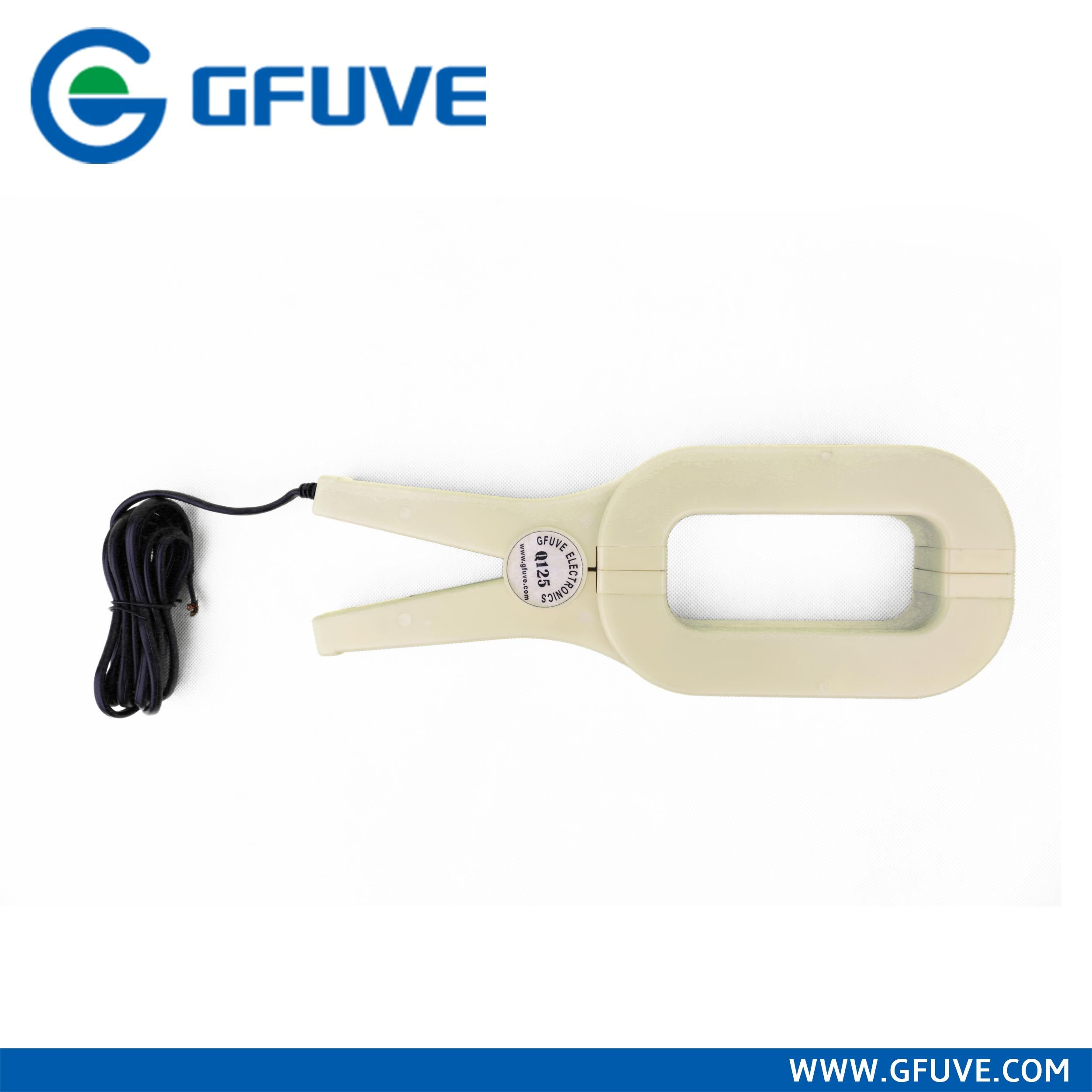

Q125 2000A High accuracy bus bar AC clamp on current transformer
The model Q125 current clamp on measuring instrument can be used for a current vector for the copper bar or the power aluminum bus bar on-line detection.
Features
This product can be used for a current vector for the copper bar or the power aluminum bus bar on-line detection.
Holding wire diameter: 120mm*50mm
Dimension: 116mm×327mm×35mm
Load capacity: mA output ≤4Ω, 1A output 0.1Ω, 5A output 2.5VA
Installation: clamp type
Output mode: lead output
Parameters

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.2%, 0.5%, 1%
Primary current	0 - 3000A AC
Secondary current	0 - 5A AC (customized)
Max. Cont. Input current	3600A
Over voltage category	CAT III 600 V
Output signal (AC current)	500mA,1A,5A AC at nominal input current
Output signal (AC voltage)	333mV,500mV,1V,5V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz  at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	116 x 327 x 35
Weight (g)	1200
Holding wire diameter (mm)	φ120 x 50
Max. jaw opening (mm)	50
Jaw Color	White
Material	PC+ABS+Polycarbonate, UL94 V0
