| Prod Model: |
Q125B |
| Q125b: |
AC Current Probe |
| Accuracy Class: |
0.2%, 0.5%, 1% |
| Primary Current: |
0 - 3000A AC |
| Secondary Current: |
0 - 5A AC (Customized) |
| Max. Cont. Input Current: |
3600A |
| Frequency Range: |
40Hz-2000Hz |
| Temperature Range: |
-20°c to +55°c |
| Weight (G): |
1100 |
| Max. Jaw Opening (mm): |
125 |
| Color: |
Black |
Product Description
COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.

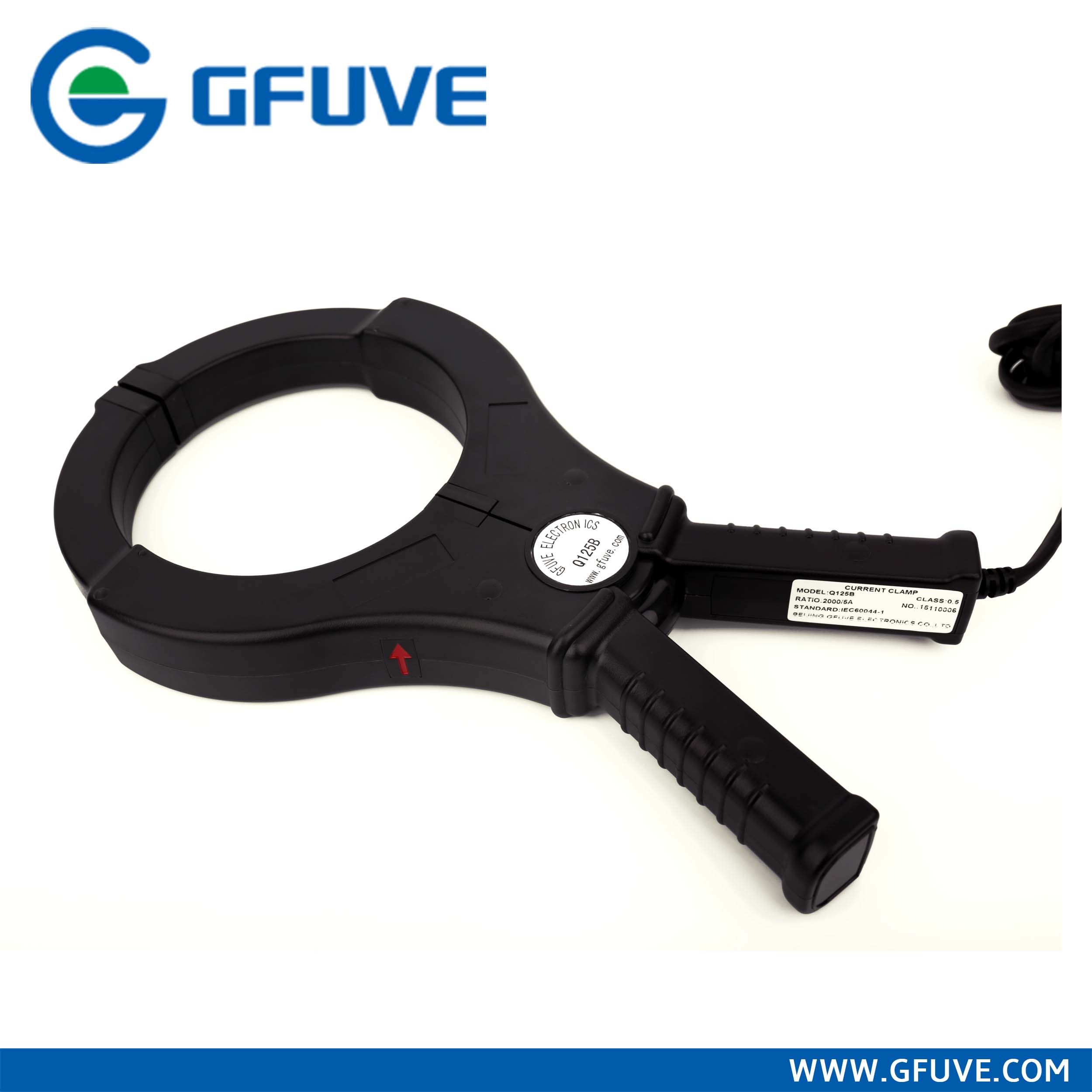

PRODUCT INTRODUCTIONQ125B Cable 125mm 3000A Split core Square Bus bar AC Current Probe
The Q125B is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.
Applications
Large industrial loadsMeasuring around cable bundlesPower load monitoringElectrical utilityHVACIndustrial maintenanceLaboratoryPlant maintenanceCable fault tester
Features
Measurement range of 1A to 3600A ACLarge jaw opening designedImproved ergonomic design and easy operationConforms to EN 61010, 600V CAT IIILow phase shift for power measurementNominal range: 1 to 1000AAC, 1 to 2000AAC, 1 to 3000AACTransformation ratio: 1000:5, 2000:5, 3000:5Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A ACDesigned for use on DMMs, power and harmonic meters, recorders or instruments with AC current rangesUL, CE mark
Parameters
| Electrical parameters |
|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.2%, 0.5%, 1% |
| Primary current | 0 - 3000A AC |
| Secondary current | 0 - 5A AC (customized) |
| Max. Cont. Input current | 3600A |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | 500mA,1A,2A,5A AC at nominal input current |
| Output signal (AC voltage) | 333mV, 500mV, 1V, 5V AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1 |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Mechanical parameters |
|---|
| Dimensions (L x W x H)(mm) | 180 x 319 x 35 |
| Weight (g) | 1100 |
| Holding wire diameter (mm) | φ125 |
| Max. jaw opening (mm) | 125 |
| Color | Black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
Download CatalogueQ125B-Cable 125mm 3000A Split core Square Bus bar AC Current Probe(607KB)
