Q150 6000A Bus Bar and Cable AC Split Core CT Current Probe

Name: Q150 6000A Bus Bar and Cable AC Split Core CT Current Probe
Brand: all-electronics-online.com
SKU: 722048952
Availability: InStock
Rating: 4.6 (61 reviews)

Price:	US $ 50/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q150
Ratio:	1000: 1 or 5000:1 (Customized)
Accuracy Class:	0.2%, 0.5%, 1%
Primary Current:	0 - 5000A AC
Keyword:	6000A Current Probe
Standard:	En 61010-1, En 61010-2-032, IEC60044-1
Weight (G):	1700
Max. Jaw Opening (mm):	150
Jaw Color:	White
Material:	PC+ABS+Polycarbonate, UL94 V0
Model:	6000A Split Core CT
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

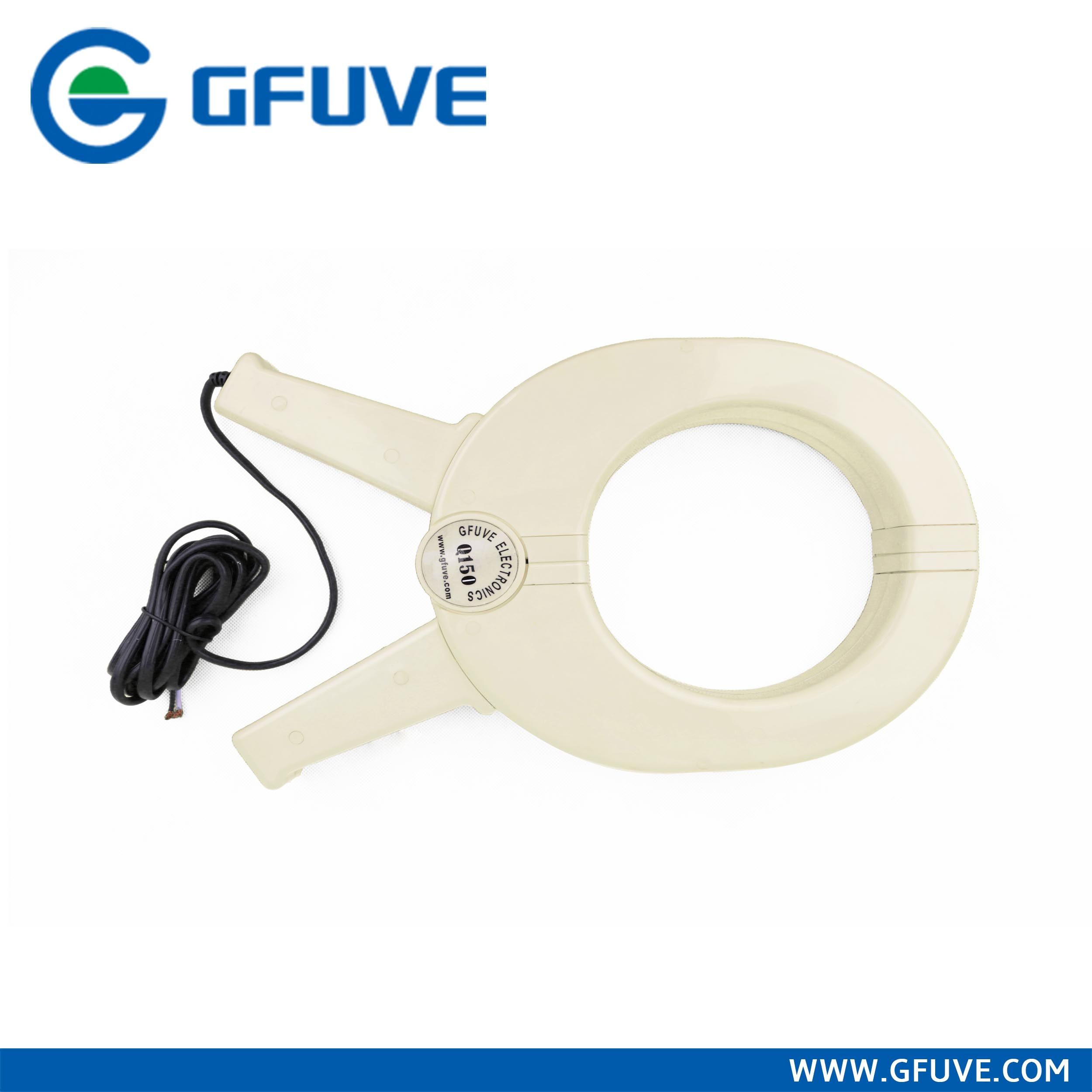

Q150 6000a Bus bar and cable ac split core ct current probe
The model Q150 6000a current probe can be used in large current situation and cooperate to cable fault tester and cable identiﬁcation device, used for cable test work.
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Features
1. Measurement range of 1mA to 3000A AC
2. Small, compact size; holding wire diameter 150mm
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω; When 1A output, it is 0.1Ω; When 5A output, it is 2.5VA.
6. Output model: Lead output(2.5m)
Parameters

Electrical parameters
Ratio	1000: 1 or 5000:1 (customized)
Accuracy class	0.2%, 0.5%, 1%
Primary current	0 - 5000A AC
Secondary current	0 - 5A AC (customized)
Max. Cont. Input current	6000A
Over voltage category	CAT III 600 V
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	229x364x 44
Weight (g)	1700
Holding wire diameter (mm)	φ150
Max. jaw opening (mm)	150
Jaw color	White
Material	PC+ABS+Polycarbonate, UL94 V0
