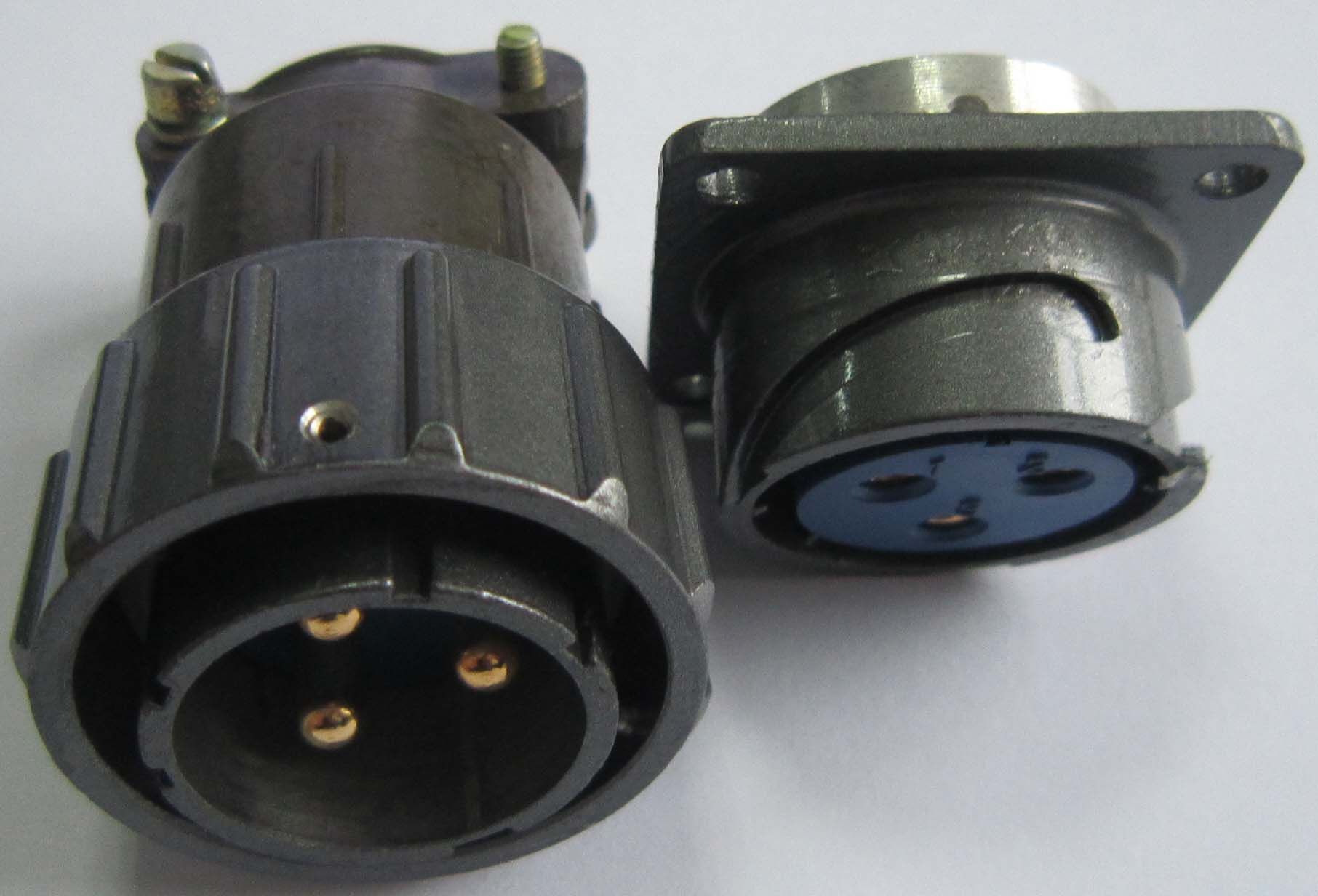

Q24-3 Bayonet Coupling Circular Connector

Name: Q24-3 Bayonet Coupling Circular Connector
Brand: all-electronics-online.com
SKU: 769626025
Availability: InStock
Rating: 4.9 (63 reviews)

Price:	US $ 5.5-6.6/Set
Trade Terms:	FOB
Min Order:	5/Set
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q24-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Q24
Contacts Number:	3
Current:	50A
Connect:	Bayonet Connect

Product Description

Q series connectors are made according to Electronic industrial Department standard SJ1744.The wire of pin and socket use solder termination.The plug and receptacle can be mounted with pins or socket.These connectors are small, light,quickly mating and unmating,etc.They are widely used for the electrial connection between instruments,equipments.
Product Ordering
Q /24/ J /3/ A /J
1 / 2 / 3 / 4 / 5 / 6
1. Name of series: Q
2.Shell size : 14,18,24,30
3.J:Pin, K:Socket
4.Number of contacts:1,2,3,4,5,6,7,9,10,12,16,19,26,32,42,55
5. A:Receptacle,without A:Plug
6. J:Au-plated,without J:Ag-plated

Temperature	Relative humidity	Atmosphere	Vibration	Shock
-55°C ~+ 100°C	98% at 40°C	1KPa	10~2000Hz, 150m /s²	500m /s²

Current	Voltage	Contact resistance	Endurance
3 -5A	110-250 V	≤ 8mΩ	500cycles
10A	400V	≤ 3 mΩ
25A	400V	≤ 2mΩ
50A	400V	≤ 1.5mΩ

Environment	Voltage proof	Insulation resistance
Normal	1200V	≥ 5000MΩ
High temperature	900V	≥ 500MΩ
Moisture	500V	≥ 50MΩ
Low pressure	200V	-

Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Electronic Technique Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.

ISO9001: 2008, Registration Number: 04005Q11376R0S.

Our products of connectors:

1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,

FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.

2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.

Our connectors of KP32, FS1, FS2 have UL certificate: E308558.

Most of our connectors have CE certificates.
