Q40 Class 0.1 Grey 40mm China Manufacturer Supply 400A or 500A Current Clamp on CT

Name: Q40 Class 0.1 Grey 40mm China Manufacturer Supply 400A or 500A Current Clamp on CT
Brand: all-electronics-online.com
SKU: 718693012
Availability: InStock
Rating: 4.7 (126 reviews)

Price:	US $ 88/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q40
Types:	500A Current Clamp on CT
Color:	Grey
Weight:	500
Jaw:	40mm
Output Signal:	0-500mA AC
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

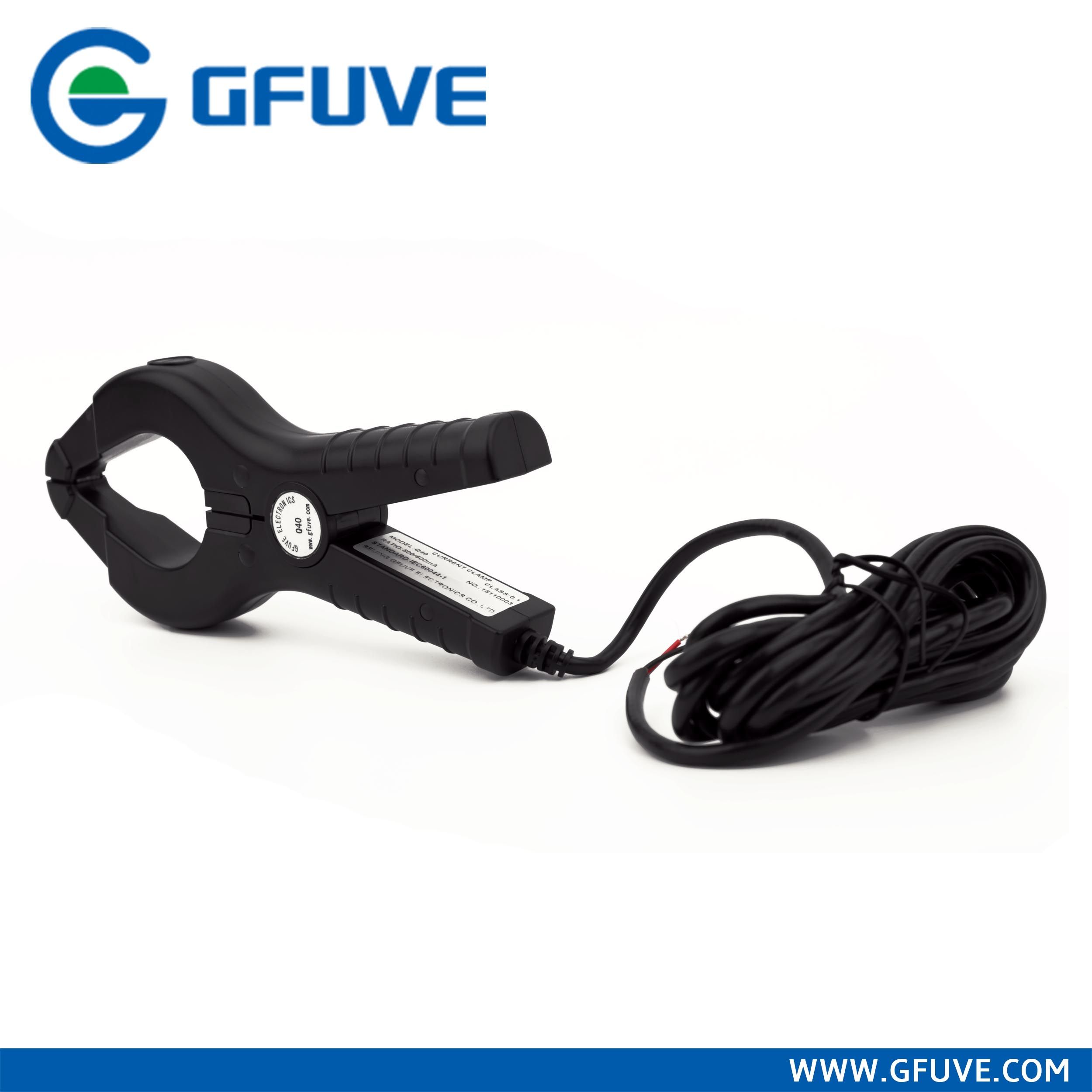

Q40 class 0.1 grey 40mm China manufacturer supply 400A or 500A current clamp on ct

The Q40 Series AC 500A current clamp on ct are high performance models, and use a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The Q40 Series is an excellent current clamp on ct to be used in power and low level current measurement applications.

APPLICATIONS

Power quality measuring
Large industrial loads
Measuring around cable bundles
Power load monitoring
Waveform analysis
Energy meter calibrator

FEATURES

Measurement range of 1mA to 600A AC
Large jaw opening designed
Improved ergonomic design and easy operation
High content nickel metal core
Conforms to EN 61010, 600V CAT III
Low phase shift for power measurement
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
UL, CE mark

PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%, 0.5%
Primary current	0 - 500A AC
Secondary current	0 - 1A AC or 0-5V AC (customized)
Max. Cont. Input current	600A
Over voltage category	CAT III 600V
Output signal (AC current)	250mA,500mA,1A,5A AC at nominal input current
Electrical parameters - continued
Output signal (AC voltage)	250mV, 500mV, 1V, 5V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	clamp type
Output mode	lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	82 x 290 x 25.3
Weight (g)	500
Holding wire diameter (mm)	φ40
Max. jaw opening (mm)	40
Color	Black
Material	PC+ABS+Polycarbonate, UL94 V0

DOWNLOAD CATALOGUE

http://gfuve.com/current-probe/500a-good-linearity-universal-ac-clamp-on-current-ct-sensor.html

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
