Q40 Selection 500A 0-5V Good Linarity Clamp on Current Sensor

Name: Q40 Selection 500A 0-5V Good Linarity Clamp on Current Sensor
Brand: all-electronics-online.com
SKU: 721805352
Availability: InStock
Rating: 4.6 (148 reviews)

Price:	US $ 100/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q40
Ratio:	1000: 1 or 2000:1 (Customized)
Accuracy Class:	0.1%, 0.2%, 0.5%
Primary Current:	0 - 500A AC
Secondary Current:	0 - 1A AC or 0-5V AC (Customized)
Frequency Range:	40Hz-2000Hz
Standard:	En 61010-1, En 61010-2-032, IEC60044-1
Weight (G):	500
Max. Jaw Opening (mm):	40
Color:	Black
Material:	PC+ABS+Polycarbonate, UL94 V0
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

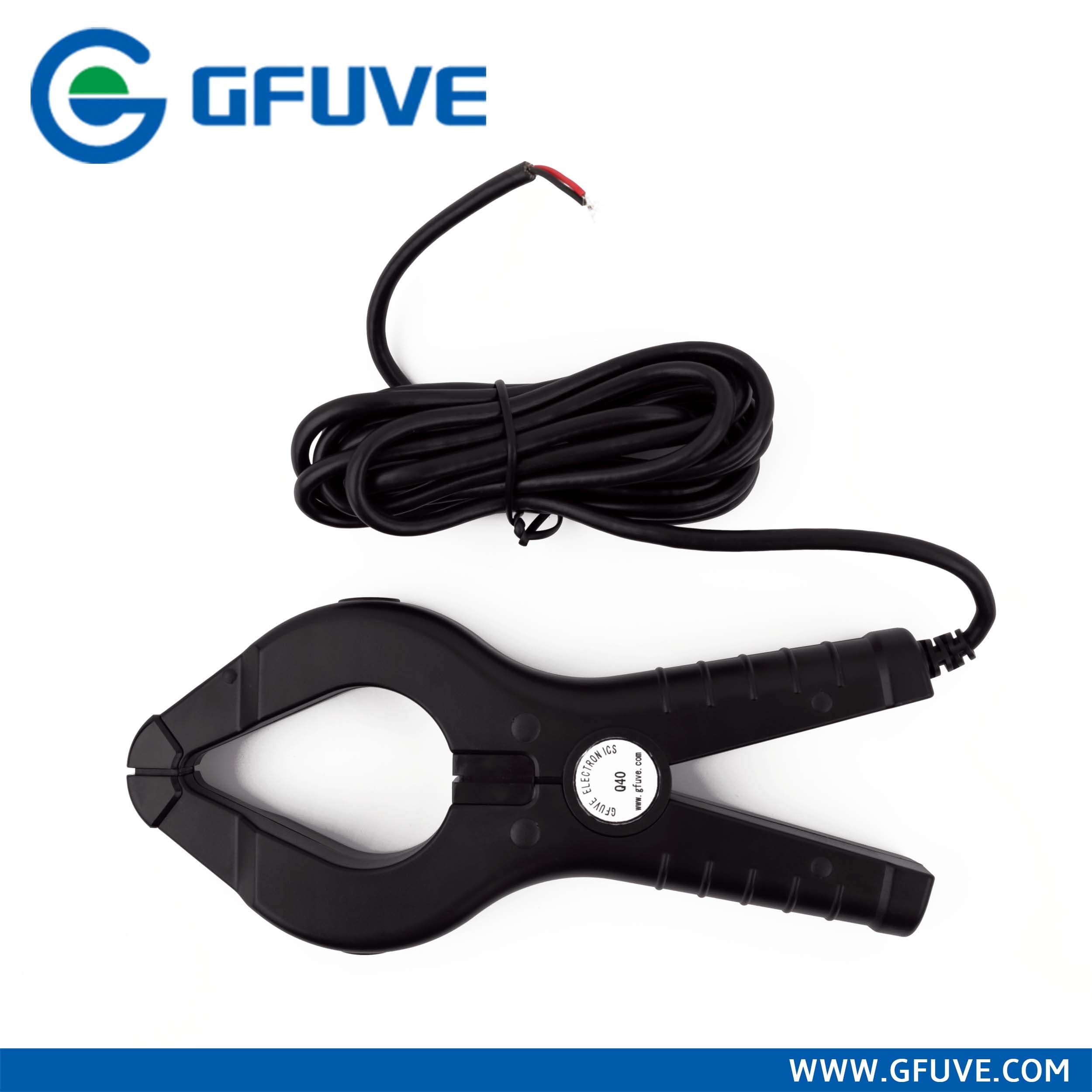

Q40 Selection 500A 0-5V Good Linarity Clamp On Current Sensor
The Q40 Series AC Current Probes are high performance models, and use a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The Q40 Series is an excellent probe to be used in power and low level current measurement applications.
Applications
Power quality measuring
Large industrial loads
Measuring around cable bundles
Power load monitoring
Waveform analysis
Energy meter calibrator
Features
Measurement range of 1mA to 600A AC
Large jaw opening designed
Improved ergonomic design and easy operation
High content nickel metal core
Conforms to EN 61010, 600V CAT III
Low phase shift for power measurement
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
UL, CE mark
Parameters

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%, 0.5%
Primary current	0 - 500A AC
Secondary current	0 - 1A AC or 0-5V AC (customized)
Max. Cont. Input current	600A
Over voltage category	CAT III 600V
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Weight (g)	500
Holding wire diameter (mm)	φ40
Max. jaw opening (mm)	40
Color	Black
Material	PC+ABS+Polycarbonate, UL94 V0
