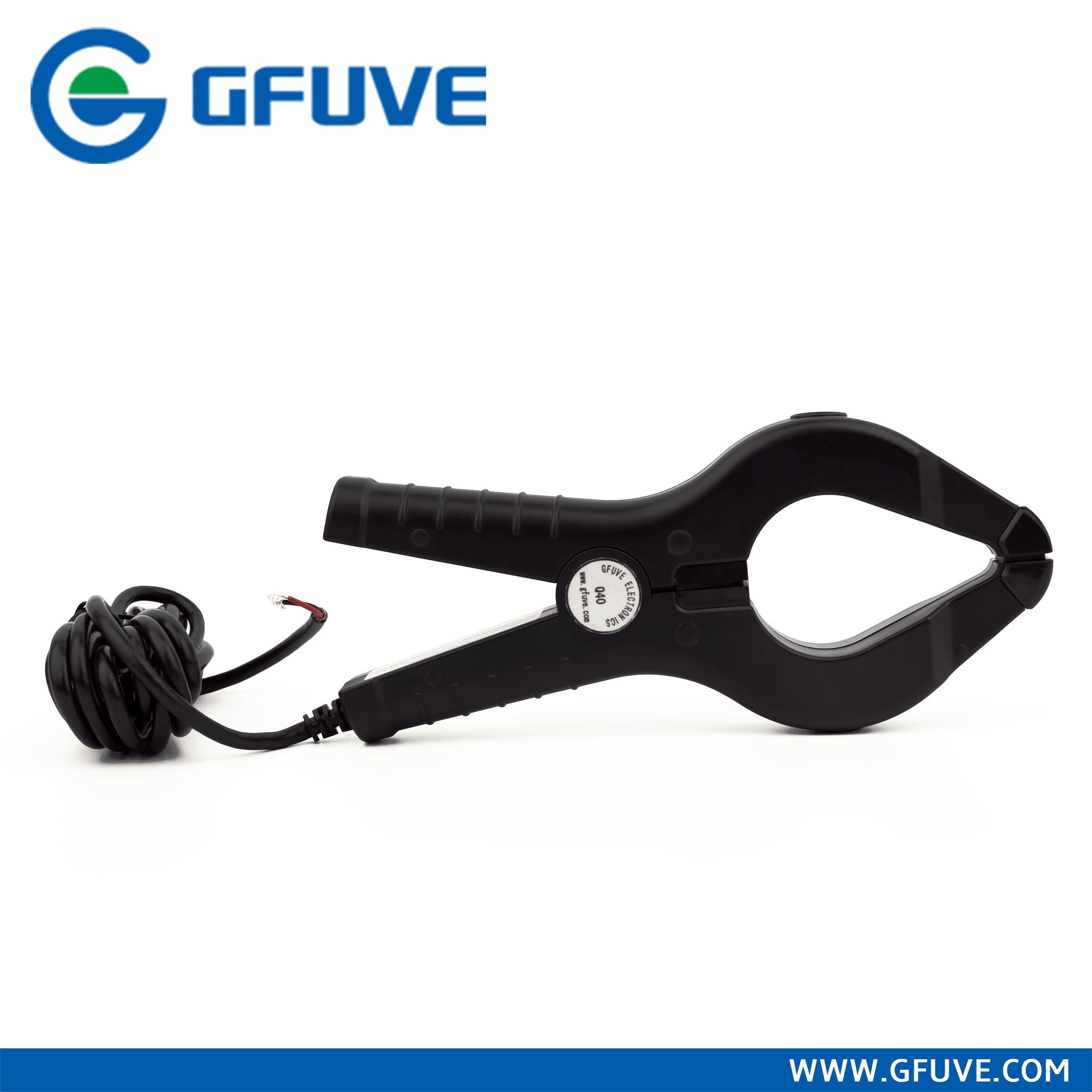

Q40 Selection 500A Good Linarity Clamp on Current Sensor

Prod Model:	Q40
Q40:	Clamp on Current Sensor
Accuracy Class:	0.1%, 0.2%, 0.5%
Max. Cont. Input Current:	600A
Over Voltage Category:	Cat III 600V
Frequency Range:	40Hz-2000Hz
Max. Voltage Not Insulated Conductors:	600 V
Dimensions (L X W X H) (mm):	82 X 290 X 25.3
Weight (G):	500
Max. Jaw Opening (mm):	40Hz-2000Hz
Color:	Black
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.

PRODUCT INTRODUCTION
Q40 Selection 500A Good Linarity Clamp On Current Sensor
Usage  The Q40 Series AC Current Probes are high performance models, and use a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The Q40 Series is an excellent probe to be used in power and low level current measurement applications.detection.
Applications   1.  Power quality measuring 2.  Large industrial loads 3.  Measuring around cable bundles 4.  Power load monitoring 5.  Waveform analysis 6.  Energy meter calibrator
Features    1.  Measurement range of 1mA to 600A AC 2.  Large jaw opening designed 3.  Improved ergonomic design and easy operation 4.  High content nickel metal core 5.  Conforms to EN 61010, 600V CAT III 6.  Low phase shift for power measurement 7.  Designed for DMMs, recorders, loggers, oscilloscopes, power and      harmonic meters 8.  UL, CE mark



Parameters
Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%, 0.5%
Primary current	0 - 500A AC
Secondary current	0 - 1A AC  or 0-5V AC (customized)
Max. Cont. Input current	600A
Over voltage category	CAT III 600V
Output signal (AC current)	250mA,500mA,1A,5A  AC at nominal input current
Output signal (AC voltage)	250mV, 500mV, 1V, 5V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz  at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	82 x 290 x 25.3
Weight (g)	500
Holding wire diameter (mm)	φ40
Max. jaw opening (mm)	40
Color	Black
Material	PC+ABS+Polycarbonate, UL94 V0
