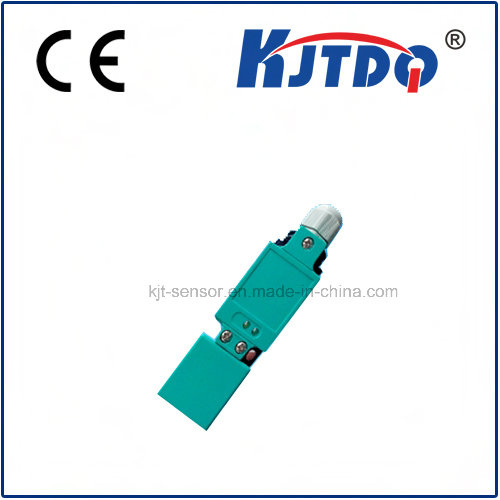

Q40 Square Type Sensor Analog Position Proximity Sensor

Q40 Square Type Sensor Analog Position Proximity Sensor
Price: US $ 4.2-6.8/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KJT-WJ40
Material: Nickel-Copper Alloy
Protection Degree: IP 67
Standard: Standard
Certification: CE
Type: Anlog Sensor
Principle: Anlog
Wires: 3 Wire
Application: Anlog

Product Description

KJT-WJ40 Analog sensor/ inductive proximity switch

Detailed Product Description


Features:

1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) Wide voltage range
7) Dustproof, vibration-proof, waterproof and oil-proof
8) With short-circuit protection and inverted connecting protection
9) Service life up to one million
10) Adopts envelop glue, temperature resist, oil-proof colophony in it

Detail

   Mounting                 NF
   SN[mm]     1.6..15mm
   Housing size40*40*118
   Thread size
   Output0-10V , 4-20mA
   Power supply15…30V DC
   Load current>=4.7KΩ(voltageoutput)
≤470Ω(current output)
   Temperature drift≤±10%
   Linearity accuracy≤±5%
   Repeat accuracy≤±3%
   Consumption current≤20mA
   Protection circuitSurge and reverse polarity                     protection
   IndicatorYellow LED
   Ambient temp. -25…70ºC
   Ambient RH35-95%
   Frequency200Hz          100Hz
   Protection degreeIP67
   Housing materialNickel plated brass
   ConnectionPVC 2m Cable


Nanjing KJT Electric Co., Ltd. is a professional manufacturer in the field of sensors and industrial switches, Our high-tech products are widely used in the industrial mechanical equipment and automatic assembly lines for transportation, plastic, metallurgy, chemistry, textile, tobacco, food, printing and so on, with properties of location check, signal transmission, automatic counting and velocimetry.

Including automation and instrumentation division. Owning an outstanding R&D team who focus on core technique and devote themselves to development and innovation, we provide our esteemed customers with All-In-One solutions. We believe that the only way to offer the best industrial control system for customers is to be a total solution provider. Through our enterprise concept, we can make our customers reduce the cost of operation, enhance the efficiency of work, and increase the quality and plus the extra value of products. There are over 8, 000 customers in all industries worldwide. Our qualified products can successfully be used in worse environment with long life-time.
