Q50A Ratio Customised Wide Measuring Range Current Probe

Prod Model:	Q50A
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.

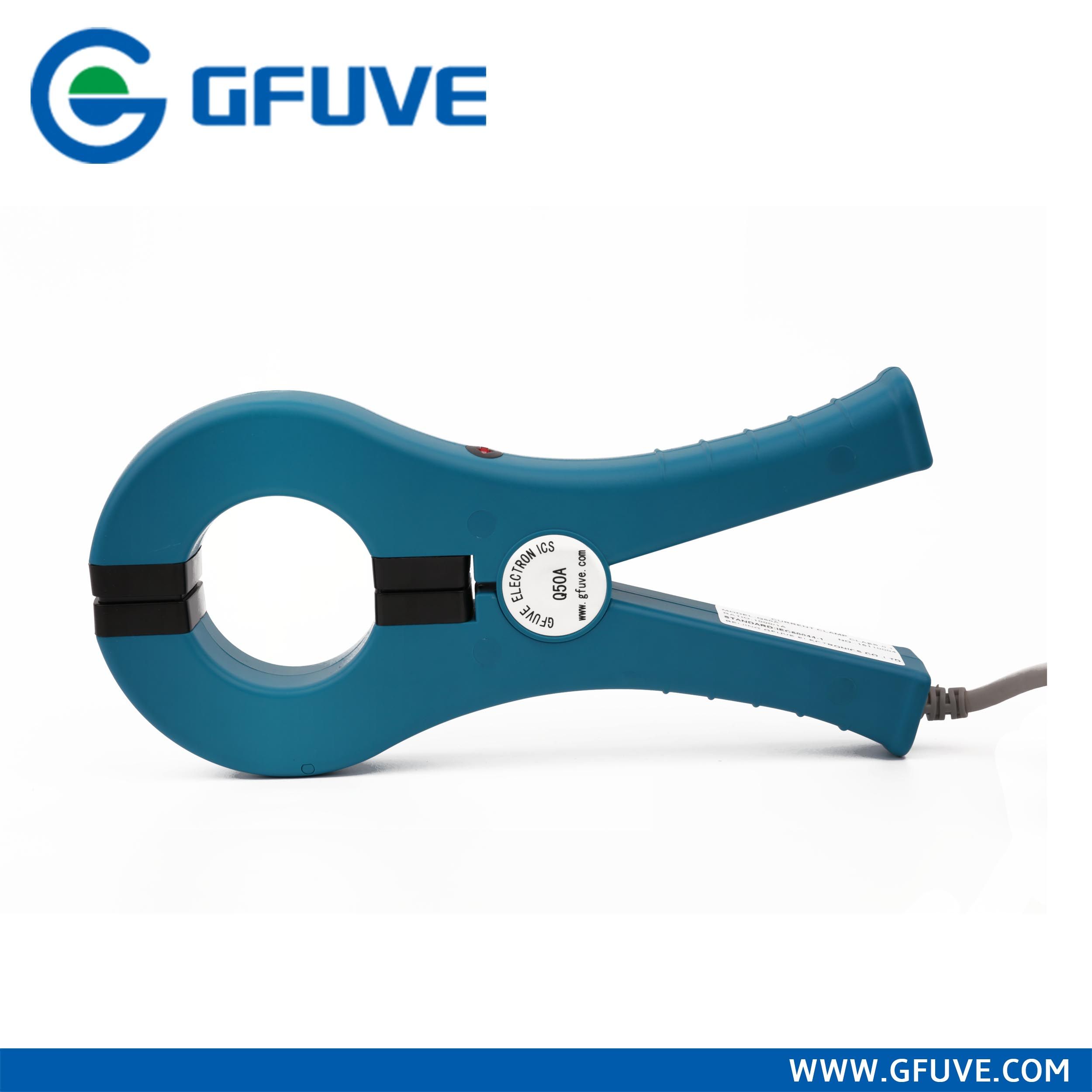

Q50A Ratio Customised Wide Measuring Range Current Probe
The model Q50A current probe is designed for fast and easy measure the current    in    industrial    and    power environment, it has wide range of current measurement.
Applications   1.  Electric energy meter calibrator (on site) 2.  Double clamp type ground resistance tester 3.  Double clamp type phase volt-ampere meter 4.  Digital multi-meter 5.  Multi-function energy meter 6.  Oscilloscope 7.  Power quality analyzer 8.  Matched instruments 9.  Calibration instrument on site
Features    1.  Measurement range of 1mA to 1000A  AC 2.  Small, compact size 3.  Improved ergonomic design and easy operation 4.  Low phase shift for power measurement 5.  With load capacity ≤4Ω; When 1A output, it is 0.1Ω; When          5A output, it is 2.5VA. 6.  Output model: Lead output(2.5m)

Parameters
Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%, 0.5%
Primary current	0 - 1000A AC
Secondary current	0 - 5A AC (customized)
Max. Cont. Input current	1200A
Over voltage category	CAT III 600V
Output signal	500mA,1A,5A  AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz  at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	102.9 x 219.6 x 28
Weight (g)	550
Holding wire diameter (mm)	φ50
Max. jaw opening (mm)	50
Color	BlUE
Material	PC+ABS+Polycarbonate, UL94 V0
