Q70 0.2% High Accuracy Oscilloscope Measuring Clamp on Current Probe

Prod Model:	Q70
Key Words:	Clamp on Current Probe
Model:	Oscilloscope Clamp on Current Probe
Ratio:	1000: 1 or 2000:1 (Customized)
Accuracy Class:	0.2%, 0.5%, 1%
Primary Current:	0 - 1000A AC
Secondary Current:	0 - 5A AC (Customized)
Max. Cont. Input Current:	1200A
Frequency Range:	40Hz-2000Hz
Installation:	Clamp Type
Max. Jaw Opening (mm):	60
Application:	Lighting
Phase:	Single
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Brand:	Gfuve

Product Description

Product Description

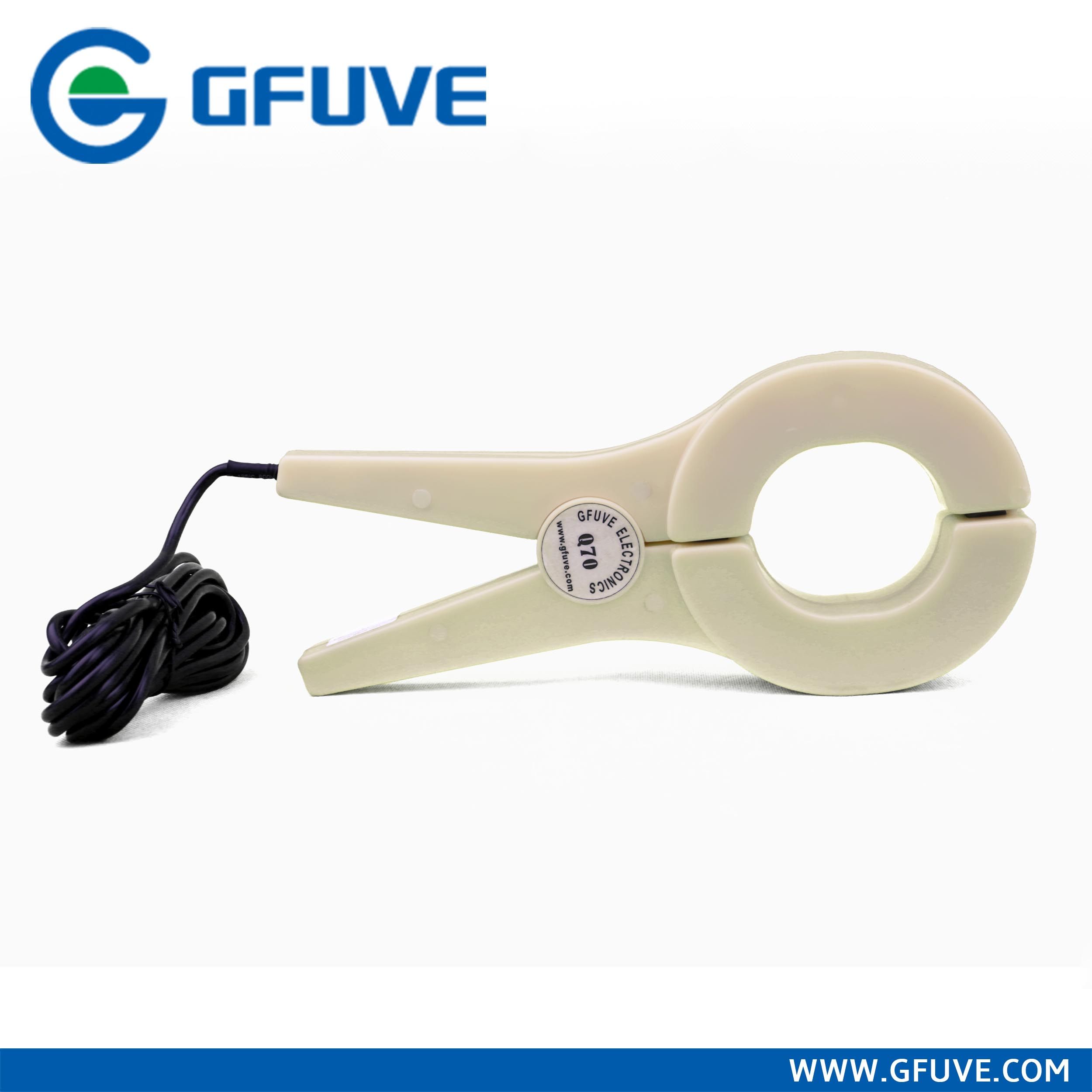

Q70 0.2% High Accuracy Oscilloscope Measuring Clamp On Current Probe
The model Q70 oscilloscope measuring clamp on current probe, it is suitable for 0-1000A current measurement, both cable and copper bus bar online measurement.
key words:
clamp on current probe
oscilloscope clamp on current Probe
clamp on current probe oscilloscope
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Features
1. Measurement range of 1mA to 1000A AC
2. Small, compact size
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω; When 1A output, it is 0.1Ω;
When5A output, it is 2.5VA.
6. Output model: Lead output(2.5m)
Parameters

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.2%, 0.5%, 1%
Primary current	0 - 1000A AC
Secondary current	0 - 5A AC (customized)
Max. Cont. Input current	1200A
Over voltage category	CAT III 600V
Output signal (AC current)	500mA,1A,5A AC at nominal input current
Output signal (AC voltage)	500mV,1V,5V AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz  at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	122 x 275 x 35.5
Weight (g)	720
Holding wire diameter (mm)	φ60 x 70
Max. jaw opening (mm)	60
Jaw Color	White
Material	PC+ABS+Polycarbonate, UL94 V0

Ordering information
Be sure to the type, current ratio, accuracy class, rated load and use of the products when you plan to make an order.  Special specifications could be customized. All kinds of different specifications and parameters current transformers can be made according to your needs.
packing:Standard export wooden box
