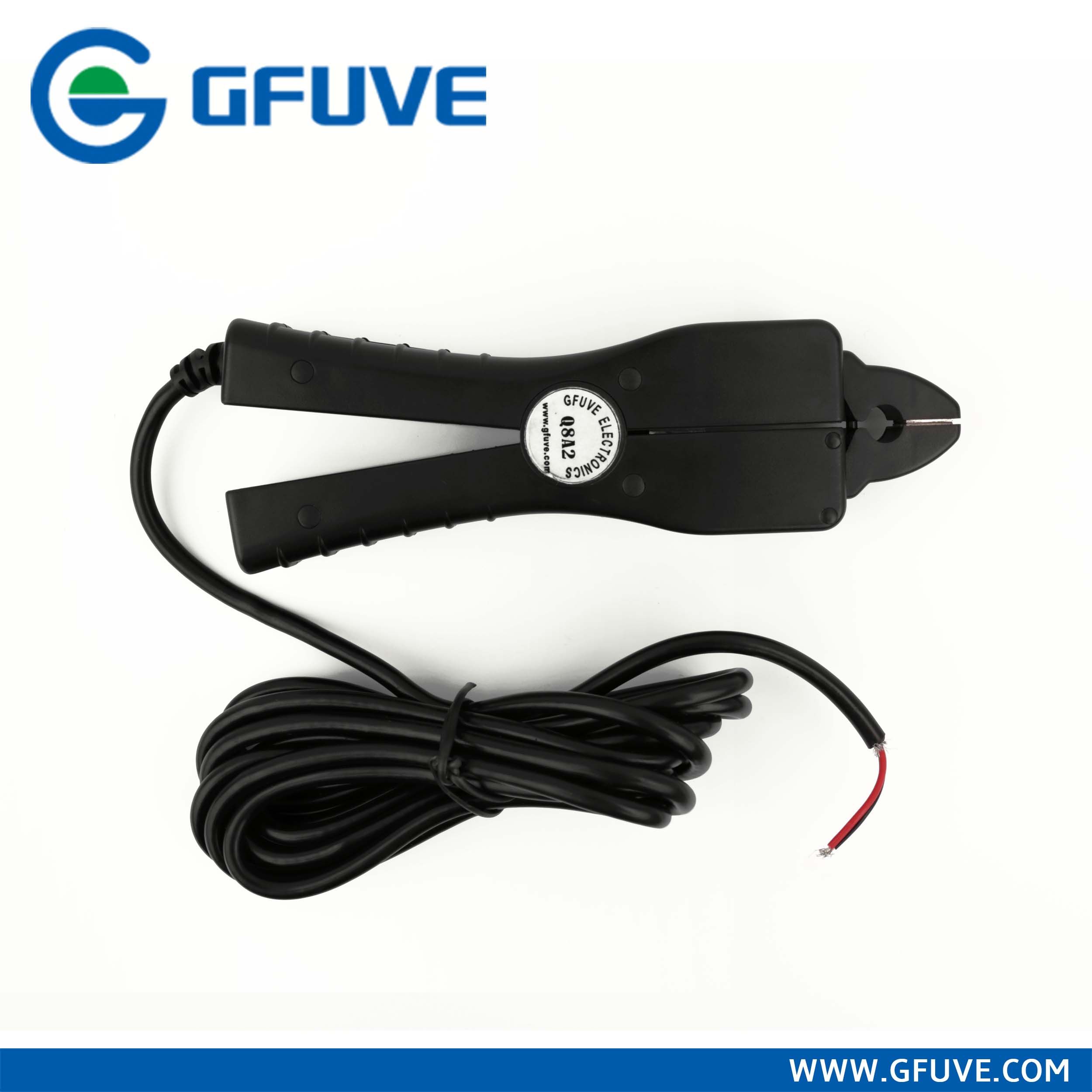

Q8a-2 10A High Sensitivity 0.1% Permalloy Core CT AC Current Clamp

Name: Q8a-2 10A High Sensitivity 0.1% Permalloy Core CT AC Current Clamp
Brand: all-electronics-online.com
SKU: 721868042
Availability: InStock
Rating: 4.5 (47 reviews)

Price:	US $ 50/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q8A-2
Ratio:	1000: 1 or 2000:1 (Customized)
Accuracy:	0.1 %,0.2%
Primary Current:	0 - 10A AC
Secondary Current:	0 - 10mA AC or 0 - 100mv AC (Customized)
Frequency Range:	40Hz-2000Hz
Standard:	En 61010-1, En 61010-2-032, IEC60044-1
Dimensions (L X W X H) (mm):	45X158X25
Weight (G):	250
Max. Jaw Opening (mm):	8
Color:	Black
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

Q8A-2 10A High sensitivity 0.1% permalloy core ct AC current clamp
The model Q8A2 permalloy core current clamp with high accuracy up to 0.1% has been designed for use with multimeters, recorders, power analysers, safety testers etc.
Applications
1. Electric energy meter calibrator (on site)
2. Double clamp type ground resistance tester
3. Double clamp type phase volt-ampere meter
4. Digital multi-meter
5. Multi-function energy meter
6. Oscilloscope
7. Power quality analyzer
8. Matched instruments
9. Calibration instrument on site
Features
1. Measurement range of 1mA to 10A AC
2. Small, compact size
3. Improved ergonomic design and easy operation
4. Low phase shift for power measurement
5. With load capacity ≤4Ω
6. Output model: Lead output(2.5m)
Parameters

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy	0.1 %,0.2%
Primary current	0 - 10A AC
Secondary current	0 - 10mA AC or 0 - 100mV AC (customized)
Max. Cont. Input current	12A
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	45x158x25
Weight (g)	250
Holding wire diameter (mm)	φ8
Max. jaw opening (mm)	8
Color	Black
Material	PC+ABS+Polycarbonate, UL94 V0
