Q8a Class 0.1 Black 8m Diameter Smart Split Core AC 5A Current Clamp for Energy Meter Calibrator

Name: Q8a Class 0.1 Black 8m Diameter Smart Split Core AC 5A Current Clamp for Energy Meter Calibrator
Brand: all-electronics-online.com
SKU: 718660252
Availability: InStock
Rating: 4.4 (112 reviews)

Price:	US $ 10/Piece
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q8A
Color:	Black
Jaw:	8mm
Types:	5A Current Clamp
Weight:	320g
Material:	Permalloy Core
Application:	Energy Instruments

Product Description

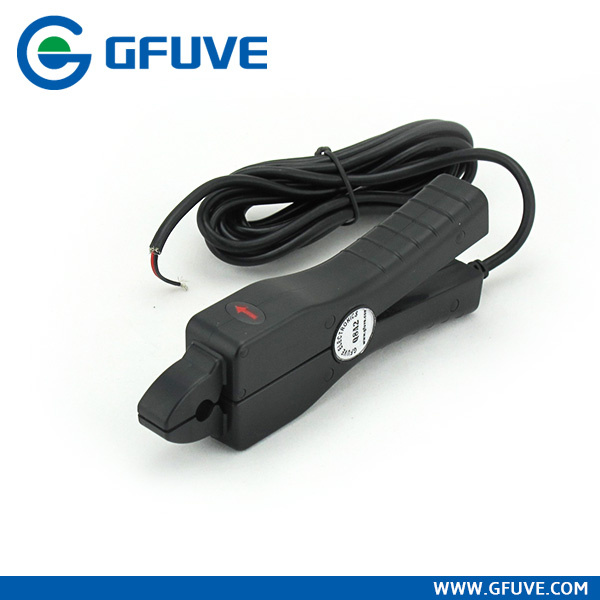

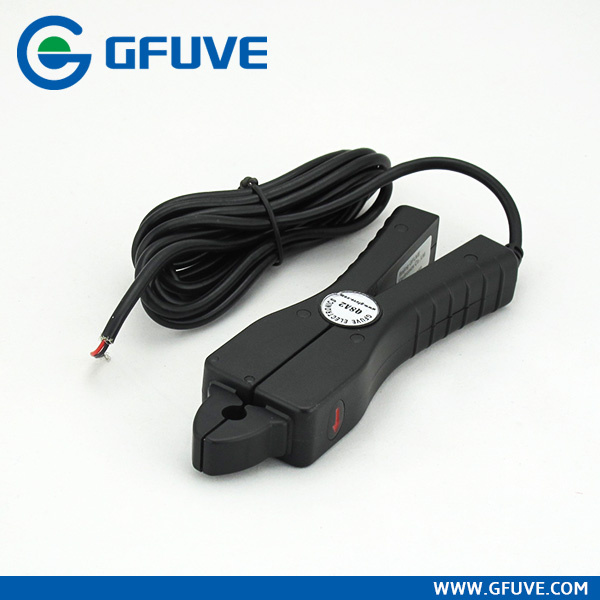

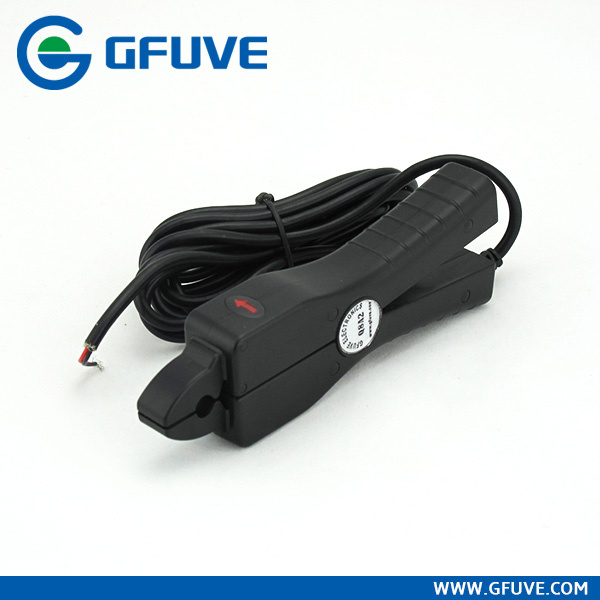

Q8A class 0.1 black 8m diameter smart split core ac 5A current clamp for energy meter calibrator

The model Q8A permalloy core 5A current clamp with high accuracy up to 0.1% has been designed for use with multimeters, recorders, power analysers, safety testers etc.

FEATURES

Suitable for 5A, 10A cable online measurement
Holding wire diameter: φ8mm
Dimension: 45mm×158mm×25mm
Load capacity: ≤4Ω
Installation: clamp type
Output mode: lead output

PARAMETE

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy	0.1 %,0.2%
Primary current	0 - 10A AC
Secondary current	0 - 10mA AC or 0 - 100mV AC (customized)
Max. Cont. Input current	12A
Over voltage category	CAT III 600V
Output signal (AC current)	From 0 to 10mA AC at nominal input current
Electrical parameters - continued
Output signal (AC voltage)	From 0 to 100mV AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	clamp type
Output mode	lead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)	45x158x25
Weight (g)	250
Holding wire diameter (mm)	φ8
Max. jaw opening (mm)	8
Color	Black
Material	PC+ABS+Polycarbonate, UL94 V0

RS

DOWNLOAD CATALOGUE

http://gfuve.com/current-probe/10A-high-sensitivity-permalloy-core-ct-ac-current-clamp.html

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
