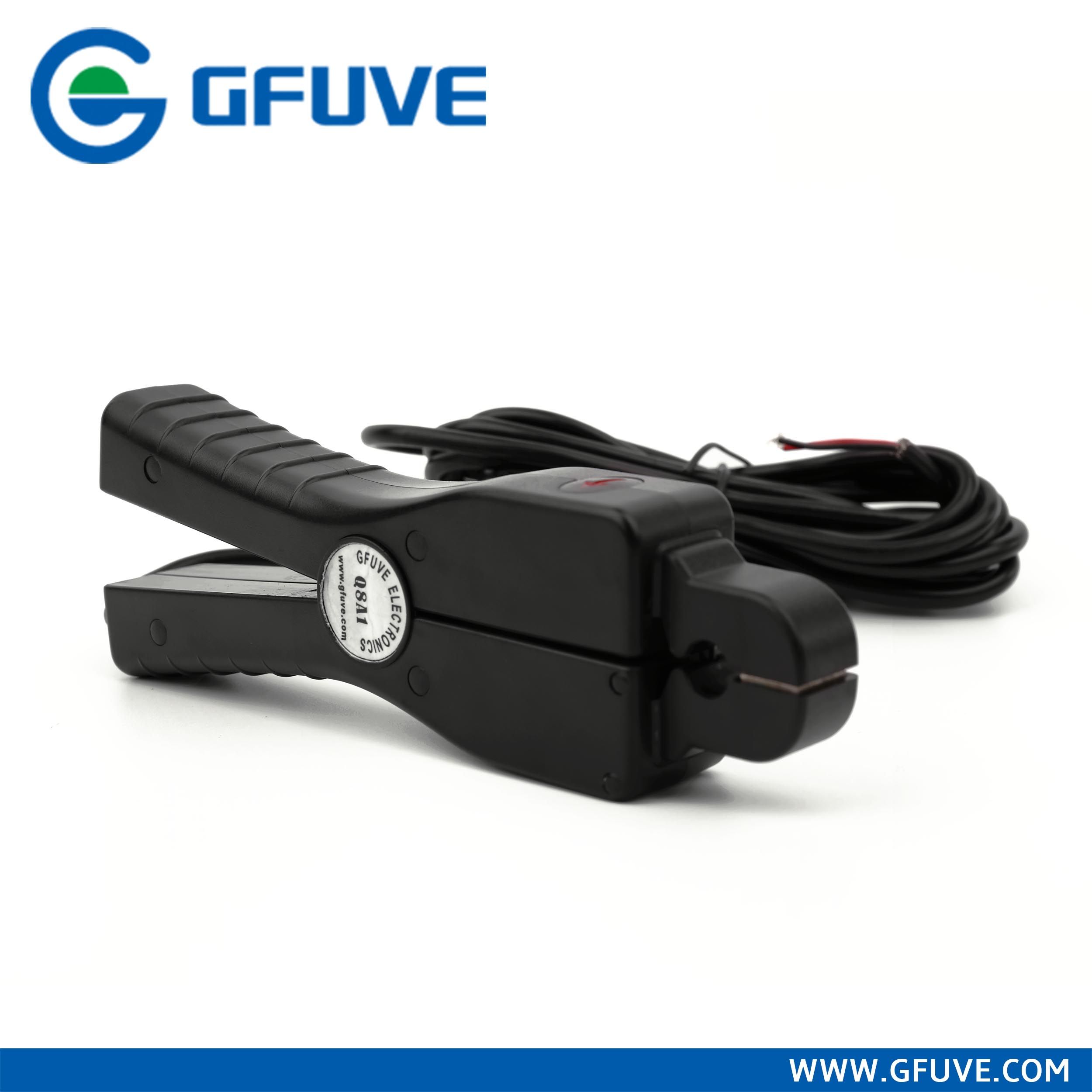

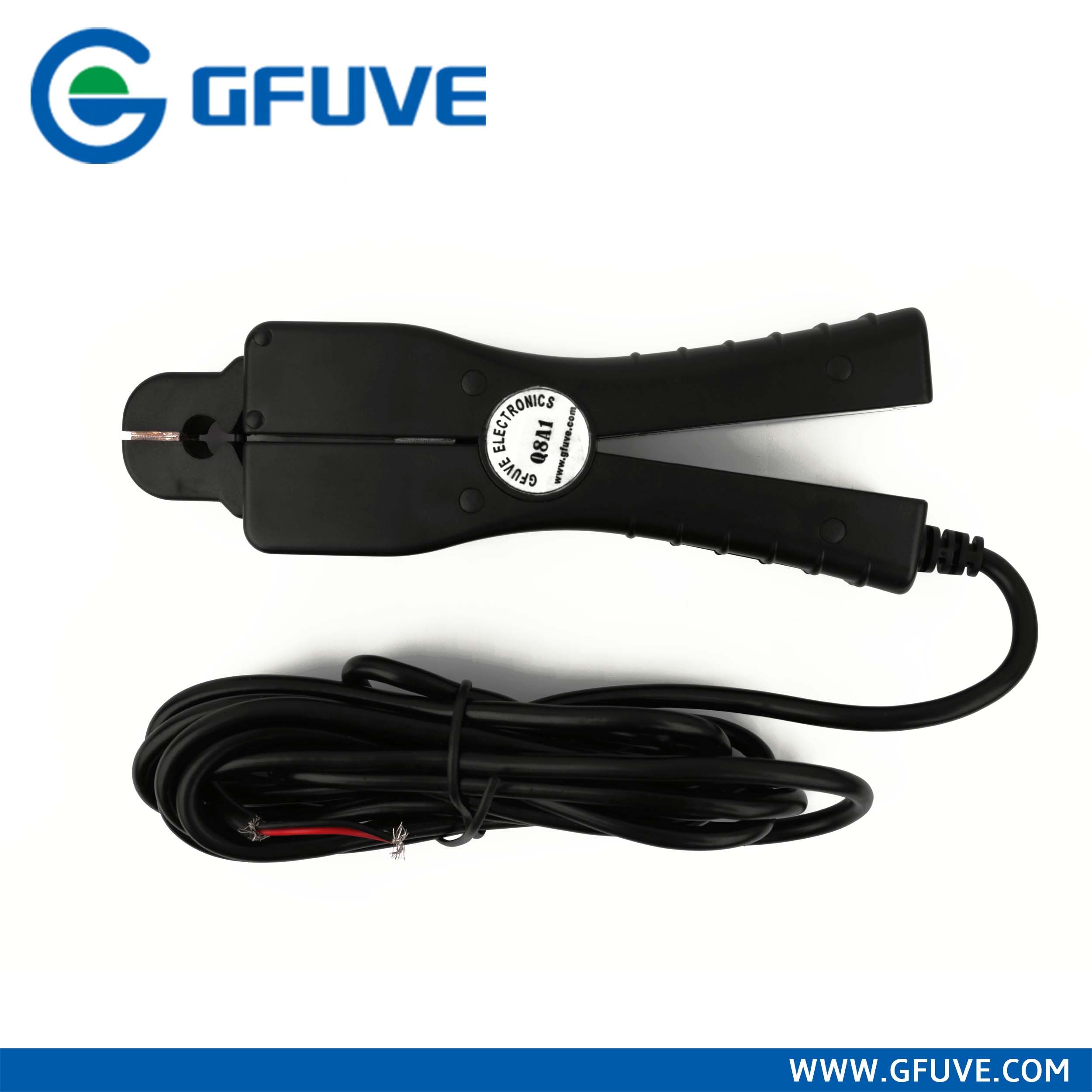

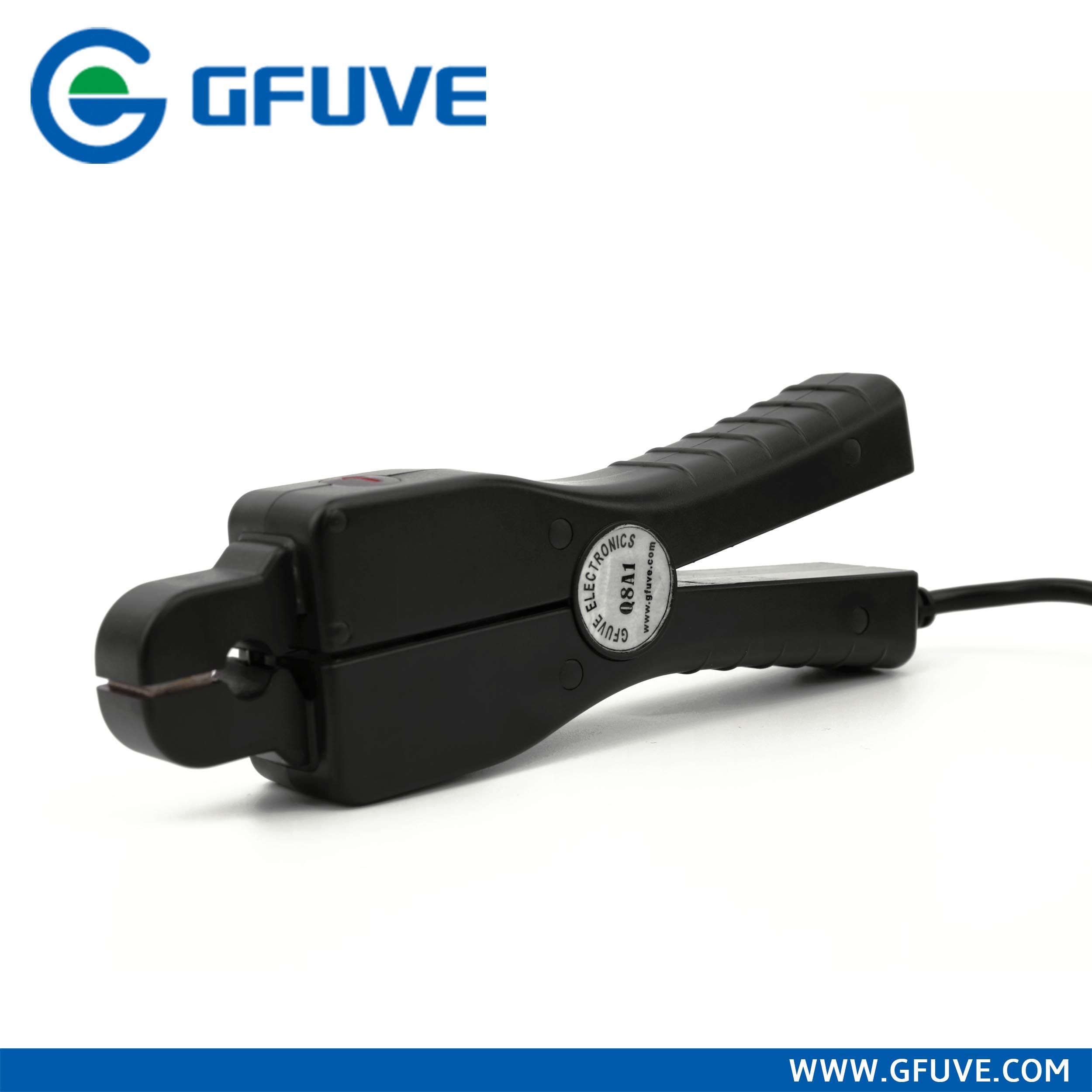

Q8a1 10A High Precision 0.1 Class Clamp on AC Current Sensor

Name: Q8a1 10A High Precision 0.1 Class Clamp on AC Current Sensor
Brand: all-electronics-online.com
SKU: 688869262
Availability: InStock
Rating: 5 (117 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q8A1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ratio:	1000: 1 or 2000:1, Customized
Nominal Input:	10A
Max. Cont. Input Current:	12A
Accuracy:	0.1 %, 0.2%
Output Signal:	10mA AC at Nominal Input Current
Frequency Range:	40 Hz....2000 Hz
Types:	10A Clamp on AC Current Sensor
Temperature Range:	-20 °c...+55 °c
Output:	2.5 Meter Cable with D01 Connector
Max. Voltage Not Insulated Conductors:	600 V
Type:	Current Transformer
Material:	Nickel Iron Alloy
Application:	Instrument

Product Description

Q8A1 10A High Precision 0.1 class Clamp on AC Current Sensor for energy meter calibrator

Applications
· Power quality measuring
· Large industrial loads
· HVAC
· Measuring around cable bundles
· Power load monitoring
· Waveform analysis
Features
· Measurement range of 1mA to 10A AC
· Small, compact size
· Improved ergonomic design and easy operation
· Conforms to EN 61010, 600V CAT III
· Low phase shift for power measurement
· Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters
· With load capacity≤ 4
· Output model: Lead output (2.5m)

PARAMETERS

Electrical parameters
Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%
Primary current	0 - 10A AC
Secondary current	0 - 10mA AC (customized)
Max. Cont. Input current	12 A
Load capacity	≤4Ω
Over voltage category	CAT III 600V
Output signal (AC current)	From 0 to 10mA AC at nominal input current
Output signal (AC voltage)	From 0 to 100mV AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032, IEC60044-1
Installation	Clamp type
Output mode	Lead output(2.5m)

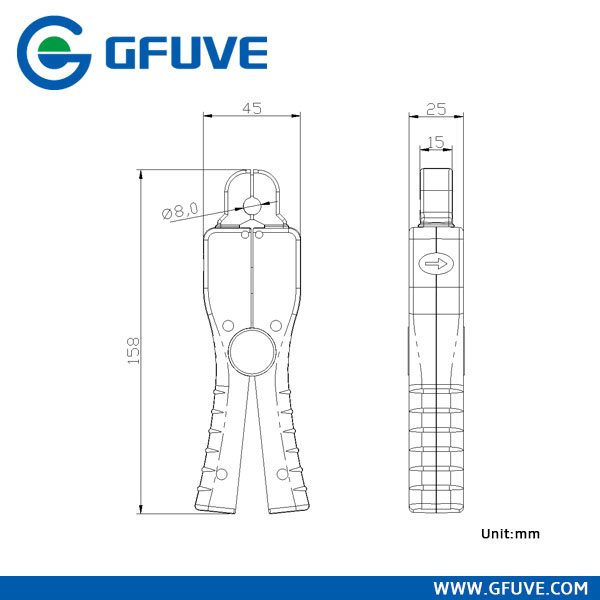

Mechanical parameters
Dimensions (L x W x H) (mm)	42.6x122.5x23
Weight (g)	250
Holding wire diameter (mm)	φ8
Max. jaw opening (mm)	8
Color	Black
Material	PC+ABS+Polycarbonate, UL94 V0

DOWNLOAD CATALOGUE

http://gfuve.com/upfile/pdf/Q8A1-Current-Probe-GFUVE.pdf

Beijing GFUVE Electronics Co., Ltd. Was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces split core current transformer, high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, current probe, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, handheld terminal and POS terminal, and power meter, power analyzer, intelligent digital meter, transducer, voltage transformer and current transformer models etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory of current probe. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, South east and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.
