Q8a2 High Sensitivity Permalloy Core AC Current Clamp

Q8a2 High Sensitivity Permalloy Core AC Current Clamp
Price: US $ 75-80/Piece
Min Order: 3/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Q8A2
Q8a2: AC Current Clamp
Accuracy: 0.1 %,0.2%
Ratio: 1000: 1 or 2000:1 (Customized)
Primary Current: 0 - 10A AC
Secondary Current: 0 - 10mA AC or 0 - 100mv AC (Customized)
Max. Cont. Input Current: 12A
Over Voltage Category: Cat III 600V Output Signal (AC Current) From 0 to
Output Signal (AC Voltage): From 0 to 100mv AC at Nominal Input Current
Frequency Range: 40Hz-2000Hz
Dielectric Strength: 3kv 50Hz/60Hz at 1 Minute
Application: Position Sensor
Type: Current Transformer
Phase: Single

Product Description

COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.

PRODUCT INTRODUCTION

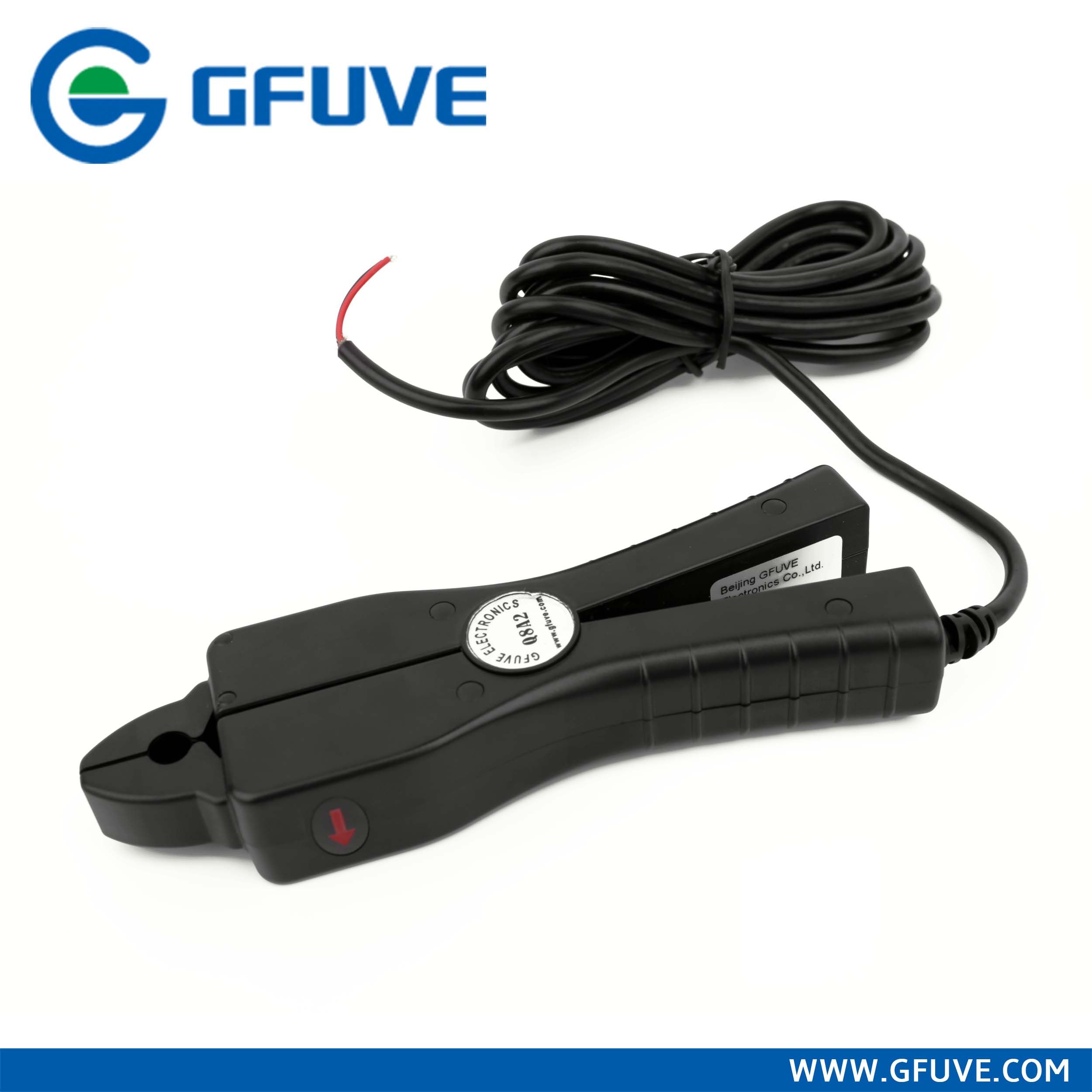

Q8A-2 10A High sensitivity 0.1% permalloy core ct AC current clamp
The model Q8A2 permalloy core current clamp with high accuracy up to 0.1% has been designed for use with multimeters, recorders, power analysers, safety testers etc.

Features
Suitable for 5A, 10A cable online measurement
Holding wire diameter: φ8mm
Dimension: 45mm×158mm×25mm
Load capacity: ≤4Ω
Installation: clamp type
Output mode: lead output

Parameters
Electrical parameters
Ratio1000: 1 or 2000:1 (customized)
Accuracy0.1 %,0.2%
Primary current0 - 10A AC
Secondary current0 - 10mA AC or 0 - 100mV AC (customized)
Max. Cont.Input current12 A
Over voltage categoryCAT III 600V
Output signal (AC current)From 0 to 10mA AC at nominal input current
Output signal (AC voltage)From 0 to 10mA AC at nominal input current
Frequency range40Hz-2000Hz
Dielectric strength3KV 50Hz/60Hz  at 1 minute
Temperature range-20°C to +55°C
Output2.5 meter cable with D01 connector
Max. voltage not insulated conductors600 V
StandardEN 61010-1, EN 61010-2-032, IEC60044-1
InstallationClamp type
Output modeLead output(2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm)45x158x25
Weight (g)250
Holding wire diameter (mm)φ8
Max. jaw opening (mm)8
ColorBlack
MaterialPC+ABS+Polycarbonate, UL94 V0
Download Catalogue
Q8A-2-10A High sensitivity 0.1% permalloy core ct AC current clamp(728KB)
