QA Miniature Circuit Breaker-Circuit Breaker-MCB

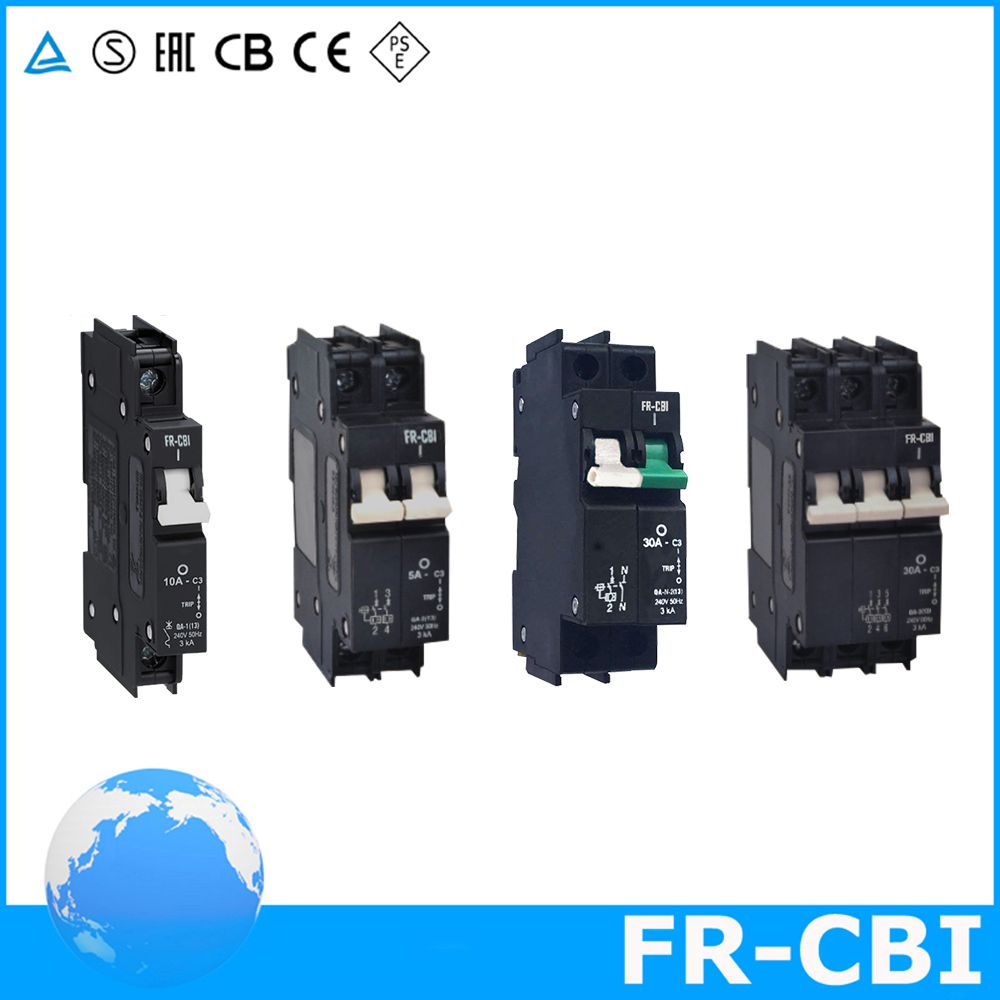

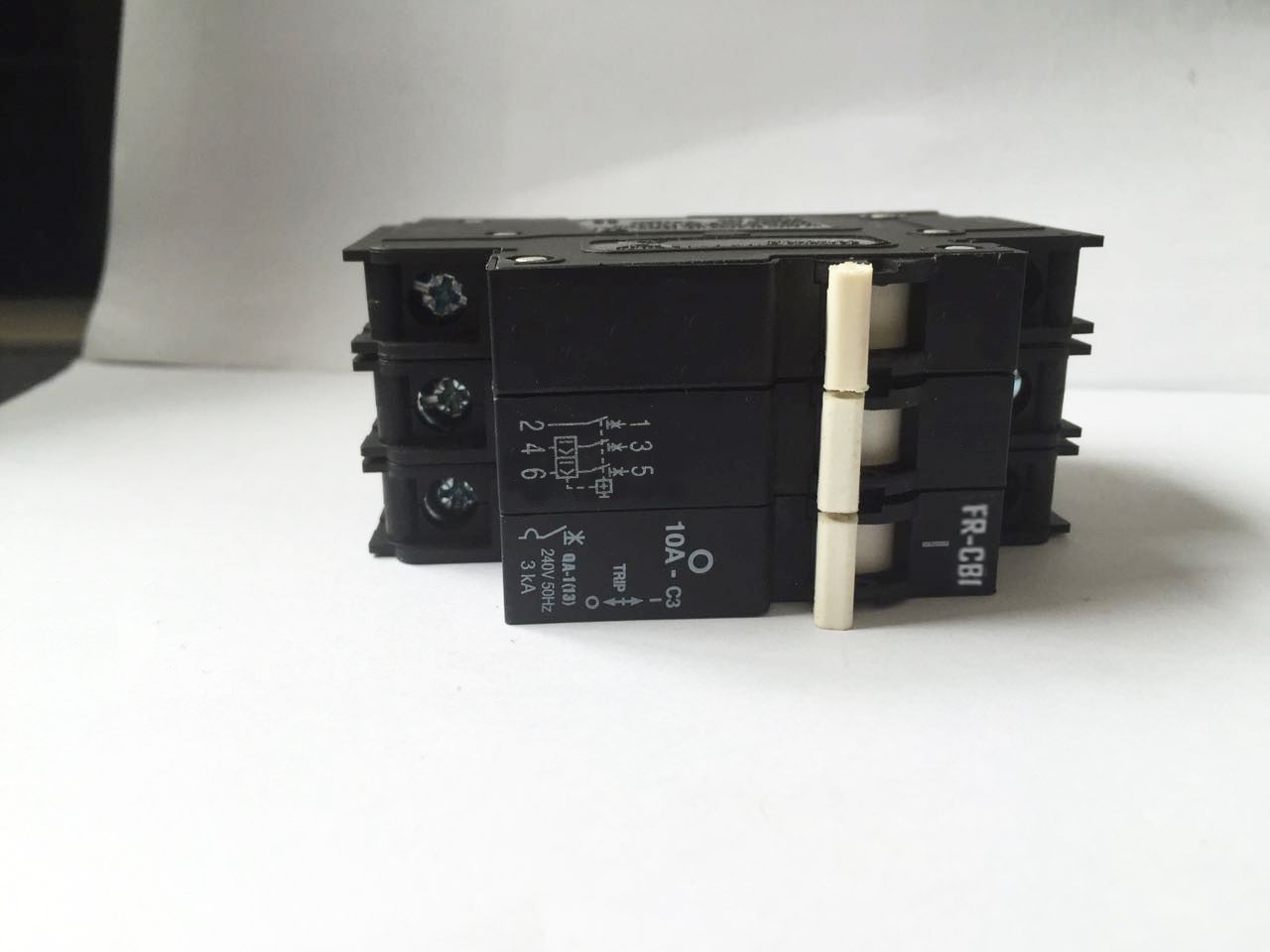

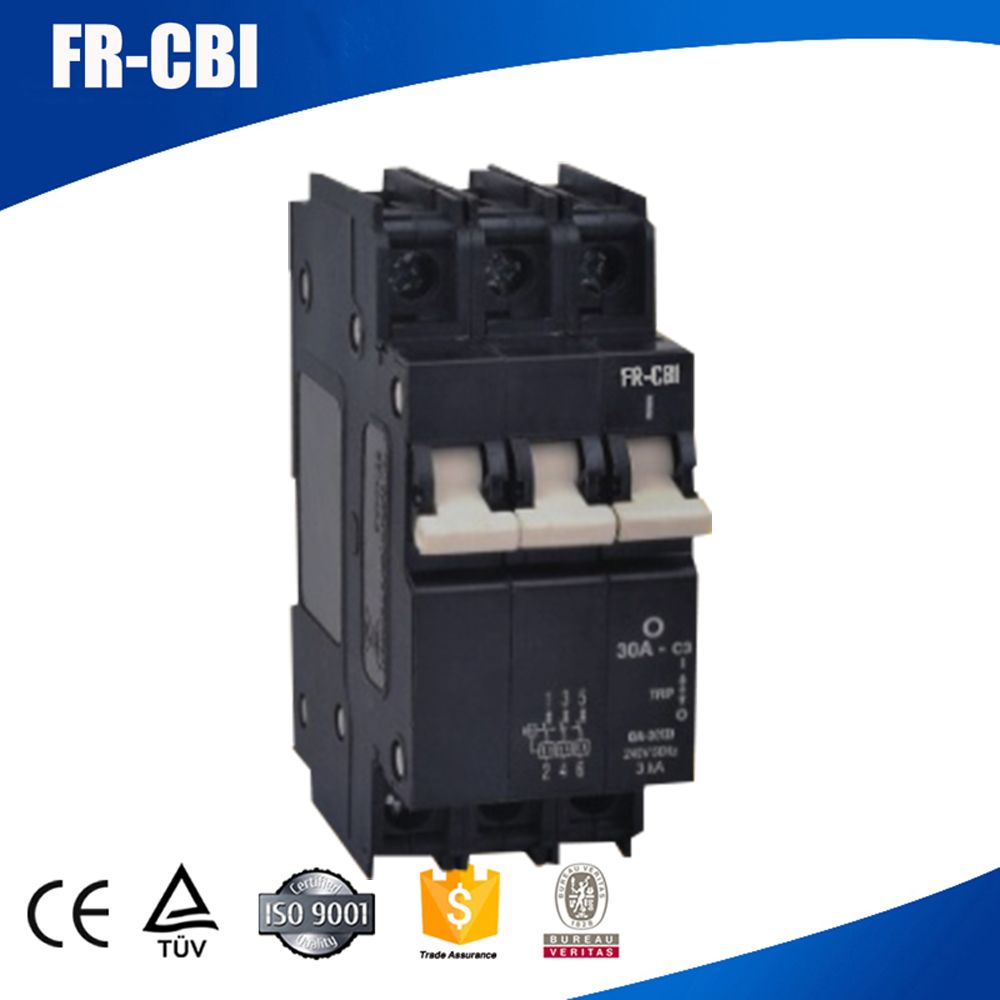

Name: QA Miniature Circuit Breaker-Circuit Breaker-MCB
Brand: all-electronics-online.com
SKU: 815698415
Availability: InStock
Rating: 4.3 (81 reviews)

Price:	US $ 1-3/Piece
Min Order:	240/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QA-3(13)
Characteristic:	Hydraulic Magnetic
Coulur:	Black
Interrupting Capacity:	2.5ka
Standards:	IEC 60947-2 Sans Vc8036 Sans 156
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Open Frame
Structure:	MCB
Poles Number:	3
Certification:	CNAS,Ma

Product Description

QA-1(13) Hydraulic mcb(circuit breaker, miniature circuit breaker) is mainly for suitable for overload and short circuit protection. It adopt hydraulic magnetic trip instead bimetal .So it has a high sensitivity and it is also not effected by the ambient temperature . It is especially used for illumination and distribution in industry and commerce. They are mainly used for overload and short-circuit protection within the circuit of AC 50Hz/60Hz, rated voltage of single pole or double up to 240V, three poles up to 415V. They can also be used for an unfrequent switch-over of the circuit and illumination under normal conditions. They are comply with IEC 157-1973, BC4752-1977 and BS 3871 part 1 .

Yueqing Fanrong Electrical Co., Ltd lies in Wenzhou City, which is called as the capital of the low voltage electrical appliance of China, it is very convenient for transportation.

We are one of the best manufacturers and exporters in Liushi, China and specialize in manufacturing various low voltage electrical products, such as mini circuit breaker, isolator switches, hydraulic magnetic circuit breaker, lighting arrestor and so on. They are sold in worldwide market with fashionable design and favorable price.

In near, our company continued adopts international advanced technology and updating our products, have owned advanced equipment of production, inspection and experiment, powerful technical force and network system of sales, services all over the world. We adhere to the guide of market and the principle of living on quality, developing on credit. We wish to make friends with all over the world to expand our products market and to create a brilliant tomorrow together with out customer.
