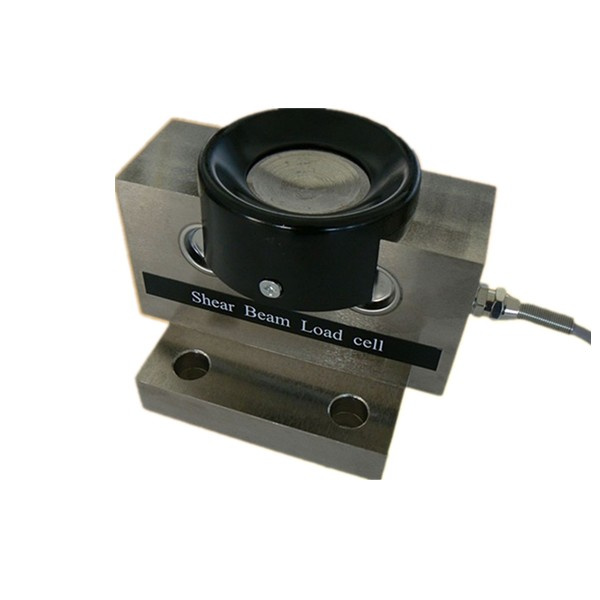

Qd-S1 10t to 40t Digital Load Cell

Product Description

 Features:

1. Alloy steel material, stable and reliable performance

2. Easy to install and adjust high interchangeability

3. Measuring range: 10t~40t

4. Force transmission component is indenter and steel-ball structure, it can reset automatically

5. Good performance of side force resistance and impact resistance, tight sealing, long-time stability

6. Application in the weighing system like truck scale, track scale and hopper scale

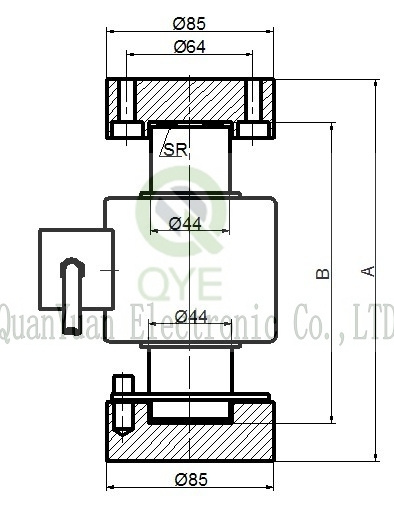

Dimensions: (unit: mm)

Technical Specifications :

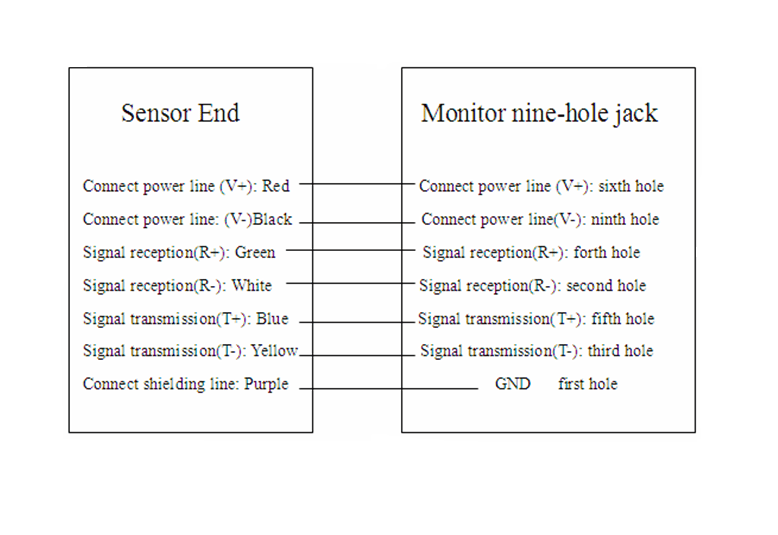

12 meters shield cable connection mode:

• Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
• According to the clients requirement

• We are committed to providing a high quality,and responsive services to all clients
• Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
• Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems.  All products will be checked by our quality-control and enclose with testing data.
• Packageing:  well box packed and provide optimal freight for you refrence.
• All products OEM available

Han Zhong Quan Yuan Electronic Co., LTD. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
     QuanYuan are certified according to ISO 9001:2000 and produce strictly in accordance withR60
