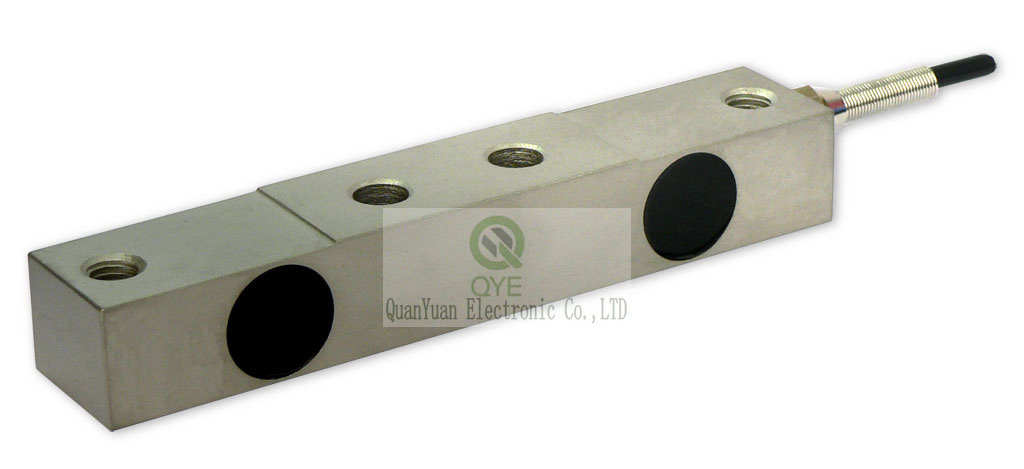

QH-41B Double Shear Beam Load Cell for Truck Scale

Name: QH-41B Double Shear Beam Load Cell for Truck Scale
Brand: all-electronics-online.com
SKU: 829933665
Availability: InStock
Rating: 4.6 (74 reviews)

Price:	US $ 150/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-41B
Capacity:	2t
Accuracy:	0.03%Fs
IP Rating:	IP66

Product Description

QH-41B load cells are available in the capacities of 2t,

Alloy steel construction with double shear beam type.

Silicon adhesive sealed inside,waterproof,anti-corrosion,suitable for multiform environments.
Suitable for truck scales,steam lines and other electronic weighing devices.

Features:

Capacity: 2t

Defend grade:IP66

High accuracy,reliable performance,

Alloy steel construction,

Integral structure, and easy installation.

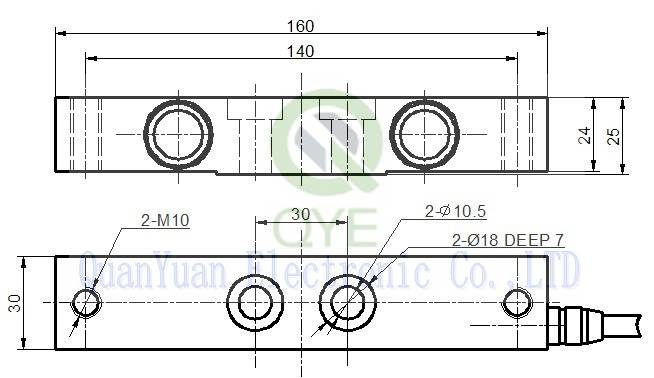

Electrical connection and Dimensions:(mm)

Specifications:
Capacity	t	2
Safe overload	%FS	150
Ultimate overload	%FS	200
Rated output	mV/V	2.0±0.02	3.0±0.03
Excitation voltage	Vdc	10 ~ 15
Combined error	%FS	± 0.03
Zero unbalance	%FS	± 1
Non-linearity	%FS	± 0.03
Hysteresis	%FS	± 0.03
Repeatability	%FS	± 0.02
Creep	%FS/30min	± 0.03
Input resistance	Ω	700± 10
Output resistance	Ω	700 ± 5
Insulation resistance	M Ω	≥ 5000 @ 50 Vdc
Operating temperature range	ºC	-20 ~ +60
Compensated temperature range	ºC	-10 ~ +50
Temperature coefficient of SPAN	%FS/10ºC	± 0.02
Temperature coefficient of ZERO	%FS/10ºC	± 0.03

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter :5mm
Cable length:6m

The cable length could be chose by customer's application.

Packaging & Shipping

All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNTas you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.

All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
