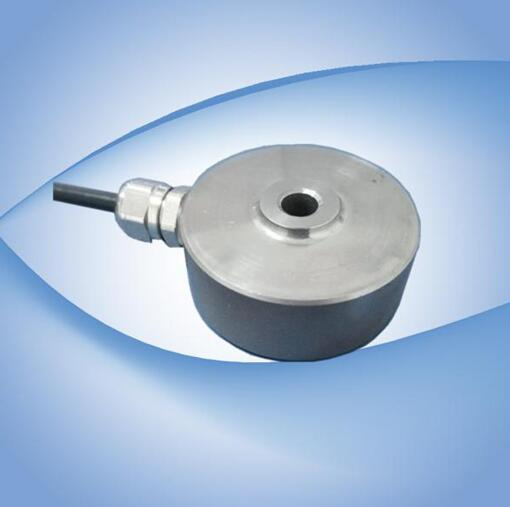

Qh-62c Donut Load Cell Washer Type Load Cell

Name: Qh-62c Donut Load Cell Washer Type Load Cell
Brand: all-electronics-online.com
SKU: 829948615
Availability: InStock
Rating: 4.9 (49 reviews)

Price:	US $ 150/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-62C
Usage:	Electronic Weighing Devices
Output:	Analog Sensor

Product Description

Product Discription:

QH-62C load cells are available in the capacities from 1t to 5t. Stainless Steel construction with spoke type. Tension and/or compression loading.

Silicon adhesive sealed, waterproof, anti-corrosion and suitable for all kinds of environment. Integral structure and easy installation.

Suitable for electronic truck scale,track scale,hopper scales and other electronic weighing devices.

Features:

Capacity: 1t to 5t

IP Rating: IP67

High accuracy.

17-4 PH Stainless Steel Integral installation

Easy installation. reliable performance.

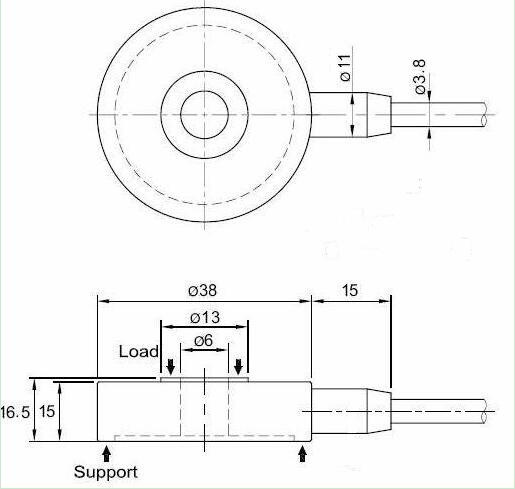

Electrical connection and Dimensions:

Specifications:

capacity			t	1, 1.5, 2t, 3t, 4t, 5t
safe overload			%FS	150

ultimate overload			%FS	300

rated output			mV/V	2mv/v(Approx.)

excitation voltage			Vdc	9 ~ 12

combined error			%FS	± 0.02
zero unbalance			%FS	≤1
non-linearity			%FS	≤0.5
hysteresis			%FS	≤0.5
repeatability			%FS	≤0.5
creep			%FS/30min	≤0.5
input resistance			Ω	740± 10
output resistance			Ω	700 ± 5
insulation resistance			M Ω	≥ 5000 @ 50 Vdc

operating temperature range			ºC	-35 ~ +65

compensated temperature range			ºC	-10 ~ +40

temperature coefficient of SPAN			%FS/10ºC	≤0.1

temperature coefficient of ZERO			%FS/10ºC	≤0.1
Electrical connection:
Excitation+ red	Excitation- black	Signal+ green Signal- white

Four-core shielded cable with polyethylene. Cable is not connected with elastomer.

Cable length:3 m

Cable diameter :3.8±0.2 mm

The cable length could be chose by customer's application.
