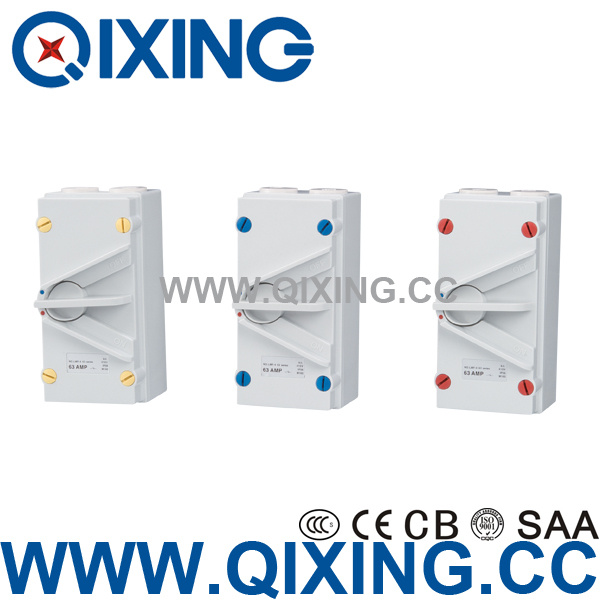

Qixing IP66 Isolating Switch (QXF)

Prod Model:	QXF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Rating:	IEC 60309-1 & 60309-2
Standards And Certifications:	CE/CCC/CB/GS/TUV
Earth Connact Position:	6h
Body Orientation:	Straight
Color:	Yellow ,Blue,Red
Current Rating:	16AMP,32AMP,63AMP,125AMP
Voltage Rating:	110V,230V,400V
Pole Format:	2p+E,3p+E,3p+N+E
Body Material:	Stainless Steel ,PA6/PA66
Operation:	Electric
Run:	Turn the Horizontal
Series:	Three
Grounding:	Double Ground
Switching Mode:	Single Throw-in
Type:	High-voltage
Installation:	Outdoor High-voltage
Structure:	Three-column Disconnector
Certification:	CE ,UL .SAA CB ,CCC,S
Brand:	Qixing
Common Model:	Qxf

Product Description

Product Description

CEE IEC stainlesss steel power combination socket box(QCBM-0001)

Brass with Nickel-plated pin, Pa66/Pa6 material body.
Working Temperture: +40, -25º C

Rated Voltage: 110v, 230v, 400V Poles: 3, 4, 5 Rated Current: 16AMP, 32AMP, 63amp, 125amp

Conform to European / International standards EN/IEC 60309-2

Good corrosion protection in aggressive environments and at high degrees of air humidity due to nickel-plated contacts
Highly heat resistant contact carriers
Easy opening and closing of lid though integrated opening aid
Reduced installation time
Practical front and rear locking slides
Large cage type terminals which securely clamp the conductor


Our company focus on bringing in advanced technology and equipment, which adheres to the ISO9001: 2000 international quality system, quality certification. To be a export-oriented enterprises, QIXING also get international agencies of Product Certification in the following relevant fields: CB, CE, CCC, TUV, GS, SEMKO, ROHS. We are continuing to introduce high-level technical and business management talents, gradually gain first-class production technology. Company is specialized in industrial plugs, sockets, coupler(connector)and so on.

Once you choice QIXING, you will get the most reliable cooperator.
