Product Description
Production Introduction:

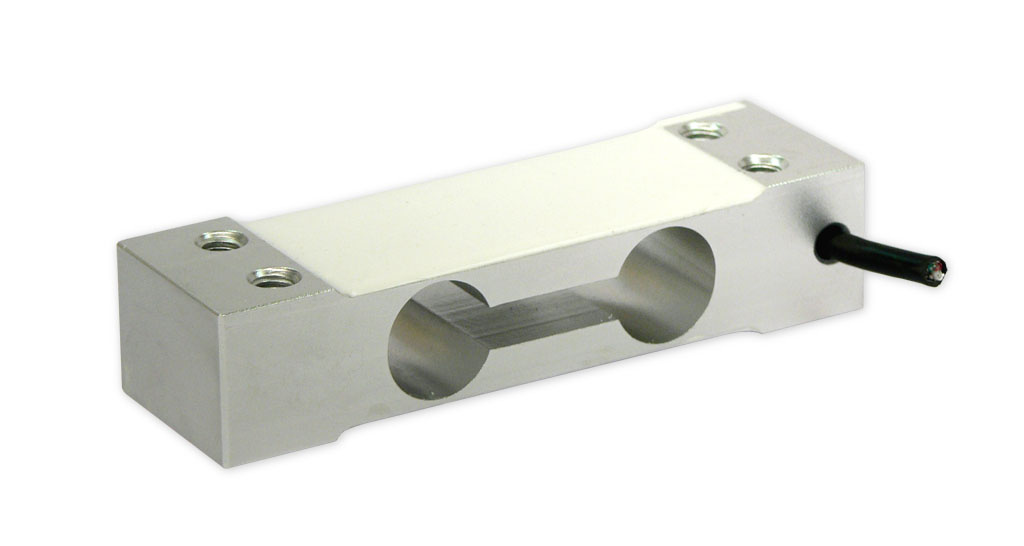

QL-11C load cells are available in the capacities from 3kg to100kg.
Alloy aluminum construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic counting scales, platform scales,electronic balance and other electronic weighing devices.
Features:
Capacity:3-100kg
Defend grade:IP65
High accuracy.
Alloy aluminum parallel beam
Max. platform size:250x350mm
Integral structure,reliable performance,and easy installation.

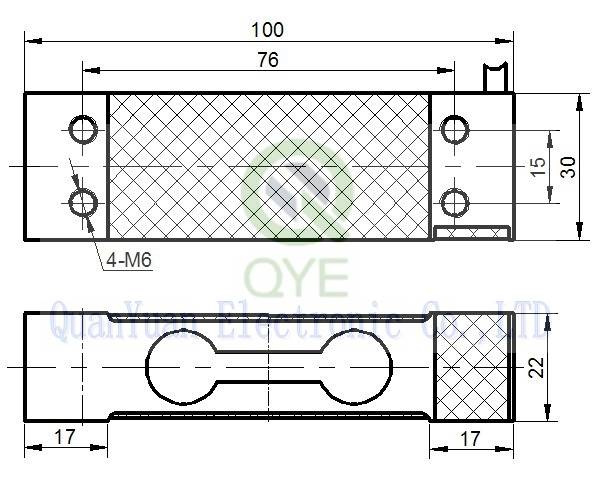

Electrical connection and Dimensions:
Technical Specifications:
Specifications: |
capacity | kg | 3, 10,20,30,50,80,100 |
safe overload | %FS | 120 |
ultimate overload | %FS | 150 |
rated output | mV/V | 2.0 ± 0.2 |
excitation voltage | Vdc | 9 ~ 12 |
combined error | %FS | ± 0.02 |
zero unbalance | %FS | ± 2 |
non-linearity | %FS | ± 0.02 |
hysteresis | %FS | ± 0.02 |
repeatability | %FS | ± 0.01 |
creep | %FS/30min | ± 0.02 |
input resistance | Ω | 406 ± 10 |
output resistance | Ω | 350 ± 3 |
insulation resistance | M Ω | ≥ 5000 @ 50 Vdc |
operating temperature range | °C | -20 ~ +60 |
compensated temperature range | °C | -10 ~ +40 |
temperature coefficient of SPAN | %FS/10°C | ± 0.02 |
temperature coefficient of ZERO | %FS/10°C | ± 0.03 |
Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:0.42 m
Cable diameter :4 ±0.2 mm
The cable length could be chose by customer's application.
Packaging & Shipping
Packaging & Shipping
All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNTas you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
