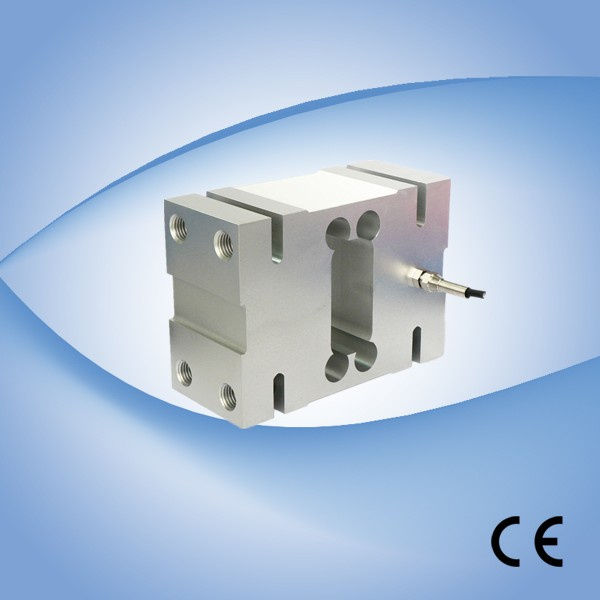

Ql-12c Parallel Beam Load Cell 50kg~2500kg

Name: Ql-12c Parallel Beam Load Cell 50kg~2500kg
Brand: all-electronics-online.com
SKU: 803660035
Availability: InStock
Rating: 4.3 (134 reviews)

Price:	US $ 20/Piece
Min Order:	5/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-12C
Defend Grade IP65:	Capacity 50~2500kg

Product Description

Quick Details
Place of Origin: Shaanxi, China (Mainland)
Brand Name: Quan Yuan
Model Number: QL-12C
Usage: weighing sensor
Theory: Resistance Sensor
Output: Analog Sensor
Capacity: 50kg to 2500kg
Defend grade: IP65
Material: Aluminum-alloy
Packaging & Delivery

Packaging Details:	carton
Delivery Detail:	7 days from stock. In case of no stock, need 30 days.

Specifications

1.Aluminum-alloy construction
2.Capacity : 50kg of 2500kg
3.High accuracy,reliable performance

QL-12C load cells are available in the capacities from 50kg to 2500kg. Aluminum-alloy construction with parallel beam type. Silicon adhesive sealed, surface Colourless anodized and anti-corrosion. Integral structure and easy installation. Suitable for electronic price computing scale,electronic accuont heavy scale,electronic platform scale and other electronic weighing devices.

Features:
1.Capacity : 50kg of 2500kg.
2.Defend grade: IP65.
3.High accuracy.reliable performance.
4.Integral structure,and easy installation
5.Recommended platform size:
600×600(mm)(50~500kg) 1200 ×1200(mm)(750~2500kg)

Technical Specifications

Specifications:
capacity	kg	50,100,200,500, 1000,1500,2000,2500
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	2.0 ± 0.2
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.03
zero unbalance	%FS	± 1.5
non-linearity	%FS	± 0.03
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.02
input resistance	Ω	406 ± 10
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	°C	-20 ~ +60
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.02
temperature coefficient of ZERO	%FS/10°C	± 0.03

Electrical connection:
Excitation+ red     Excitation- black   Signal+ green   Signal- white
Four-core shielded cable with polyethylene.
Cable diameter:4mm
Cable length:0.45 m
The cable length could be chose by customer's application.

Ordering code: model-range- rated output-accuracy-defend grade- the length of cable
               Example: QL-12C-1000kg-2.0mV/V-0.03%FS-IP65-3m

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
