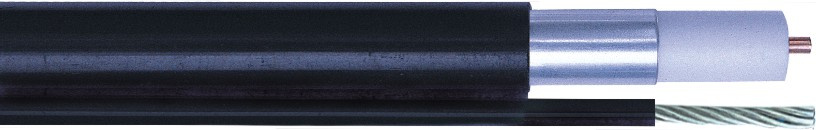

QR Coaxial Cable

Name: QR Coaxial Cable
Brand: all-electronics-online.com
SKU: 665832005
Availability: InStock
Rating: 4.5 (144 reviews)

Price:	Negotiable
Min Order:	1

Contact Supplier

Showroom Product Company Profile

Conductor Material:	Copper
Application:	Coaxial Cable

Product Description

Specification:
Inner conductor: Copper clad aluminium
Insulation: Foamed polyethylene
Shielding: Aluminium Tube
Jacket: Polyethylene
Messenger: Galvanized Steel

Application:
QR series cable has the highest reliability and flexibility, low RF attenuation, which is the trunk cable of the CATV system. It determines the performance of TV signal transmission and also developed for direct burial applications.

Additional Note:
CCA: Copper clad aluminium FPE: Foamed polyethylene
PE: Polyethylene

Part.No	Model	Inner Conductor		Dielectric	Outer Conductor	Jacket		Imp (ohms)
Part.No	Model	O.D(mm)	MTR	Dielectric	Outer Conductor	O.D(mm)	MTR	Imp (ohms)
KBE70412	QR412	1/2.15	CCA	FPE	Aluminium Tube	11.8	PE	75
KBE70500	QR500	1/2.77	CCA	FPE	Aluminium Tube	14.5	PE	75
KBE70540	QR540	1/3.15	CCA	FPE	Aluminium Tube	16.1	PE	75
