Quad 2-Input Nand Gate IC 74hc03D Integrated Circuit NXP

Name: Quad 2-Input Nand Gate IC 74hc03D Integrated Circuit NXP
Brand: all-electronics-online.com
SKU: 796824695
Availability: InStock
Rating: 4.8 (94 reviews)

Price:	US $ 0.0864/Piece
Min Order:	2500/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	74HC03D

Product Description

MANUFACTURER

NXP Semiconductors

PRODUCT CATEGORY

Gates

DESCRIPTION

NAND Gate 4-Element 2-IN CMOS 14-Pin SO T/R

FEATURES
• Level shift capability
• Output capability: standard (open drain)
• ICC category: SSI

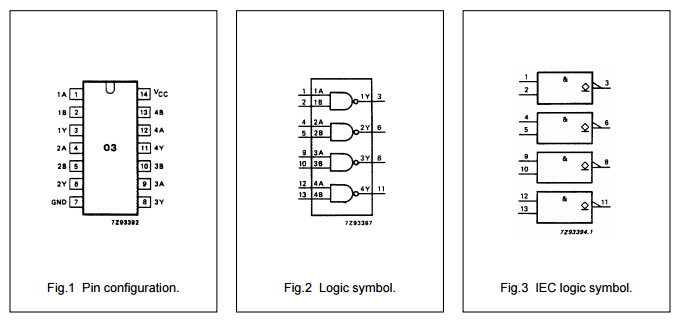

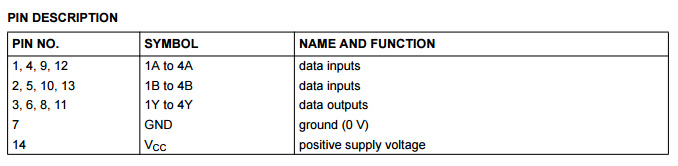

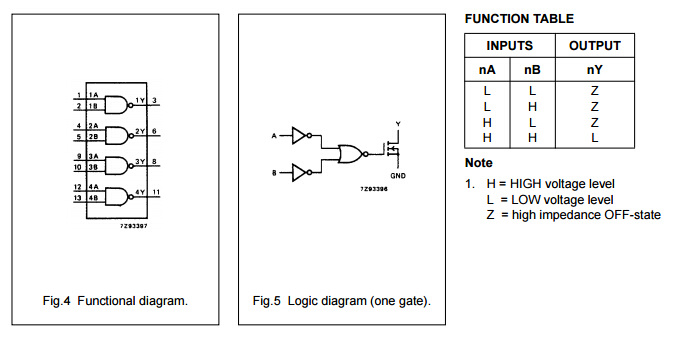

GENERAL DESCRIPTION: The 74HC/HCT03 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT03 provide the 2-input NAND function. The 74HC/HCT03 have open-drain N-transistor outputs, which are not clamped by a diode connected to VCC. In the OFF-state, i.e. when one input is LOW, the output may be pulled to any voltage between GND and VOmax. This allows the device to be used as a LOW-to-HIGH or HIGH-to-LOW level shifter. For digital operation and OR-tied output applications, these devices must have a pull-up resistor to establish a logic HIGH level.

Specification

EU RoHS	Compliant
Logic Family	HC
Logic Function	NAND
Fabrication Technology	CMOS
Number of Elements per Chip	4
Number of Element Inputs	2-IN
Number of Element Outputs	1
Output Type	Open Drain
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	125
Packaging	Tape and Reel
Minimum Operating Supply Voltage (V)	2
Maximum Operating Supply Voltage (V)	6
Typical Operating Supply Voltage (V)	5
Maximum High Level Output Current (mA)	-5.2
Maximum Low Level Output Current (mA)	5.2
Maximum Quiescent Current (uA)	2
Mounting	Surface Mount
Package Height (mm)	1.45(Max)
Package Length (mm)	8.75(Max)
Package Width (mm)	4(Max)
PCB changed	14
Standard Package Name	SOP
Supplier Package	SO
Pin Count	14
Lead Shape	Gull-wing
