| Prod Model: |
LLT-AUDI-VER4.5.1 |
| Hvga: |
800X480 |
| Navigation: |
800(GHz), 256(Storage), 800*400(HD Dispaly). |
| Map: |
Careland/Daodaotong/Igo/Papago |
| Size: |
155*90*20 (mm)X2 |
| Language: |
Multi-Language |
| APP Download: |
Support |
| Type: |
GPS Navigator |
| Use: |
Automotive |
| Screen Size: |
7" |
| Brand: |
Lsailt |
Product Description

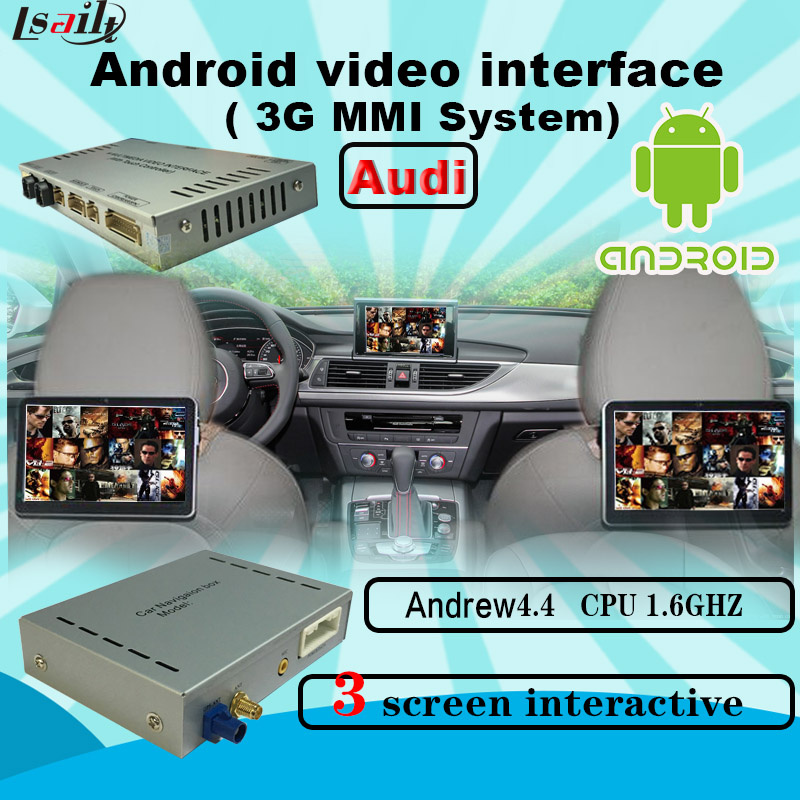

Quad-Core Android Navigation box , Upgraded Multimedia Video Interface for AUDI support App download
Overview
Car Multimedia video interface serves to connect external video sources, such as navigation box, rear view camera, front view camera , 360 panorama , DVD player, TV tuner, etc. to the original car monitor.
Packaging & Delivery
Packaging Details : Blank Carton
Delivery Detail : Within 3 days after payment is confirmed
Specifications
This unit is designed for 2010-2015 A6L/S6/Q7/A8/A4L/A5/Q5/A1/Q3(4PIN)
Input: 2video IN and 2AV IN.
- Output: 1AV OUT.
- With auto switch rear camera when gear reverse position.
- with plug and play connection.
- with High resolution: 800*480.
- Support headrest monitor display.
- Support to external DVR, Camera ,DVD ,TV etc.
- Support to download apps such as Facebook , Youtube , Google play in Android box.
Technical Specifications
About Android navigation box:
Master processor : RK3188T Quad-Core Processor(RK 3188T/RK 3188/PX3)
Basic Frequency : 1.6G
Memory capacity: 1G D D RIII , 2G DD RIII optional .
Flash memory: 8G E MMC Flash, maximum 64G .
OS: Android 4.4.4
GPS receive: support AGPS function
GPS antenna: 3V active antenna
GPS antenna protection : prevent the antenna short circuit
WiFi module : RTL8188/RTL8723.
WiFi module: RTL8723BU, support BT4.0, firmware support Bluetooth functions.
A2DP,Bluetooth telephone.
2 Video IN : For Rear View Camera and front view camera
2AV IN : For Digital TV and DVD
For Video Interface
| Interface Parameter |
| Model | LLT-AUDI -VER 4.5.1 |
| Brand | (Lsailt) |
| Car Screen Size | 7 " or 8 " |
| Type | Silver interface box |
| Display | LVDS/GVIF Signal transmission(MiNi 4PIN) |
| RGB Input | One |
| AV Input | Two |
| DVR Input | One |
| Front View | One |
| Product Accessories |
| Host Interface | 1(standard configuration) |
| Host Android | 1(standard configuration) |
| LVDS IN | 1(standard configuration) |
| LVDS OUT | 1(standard configuration) |
| AV IN/OUT | 1(standard configuration) |

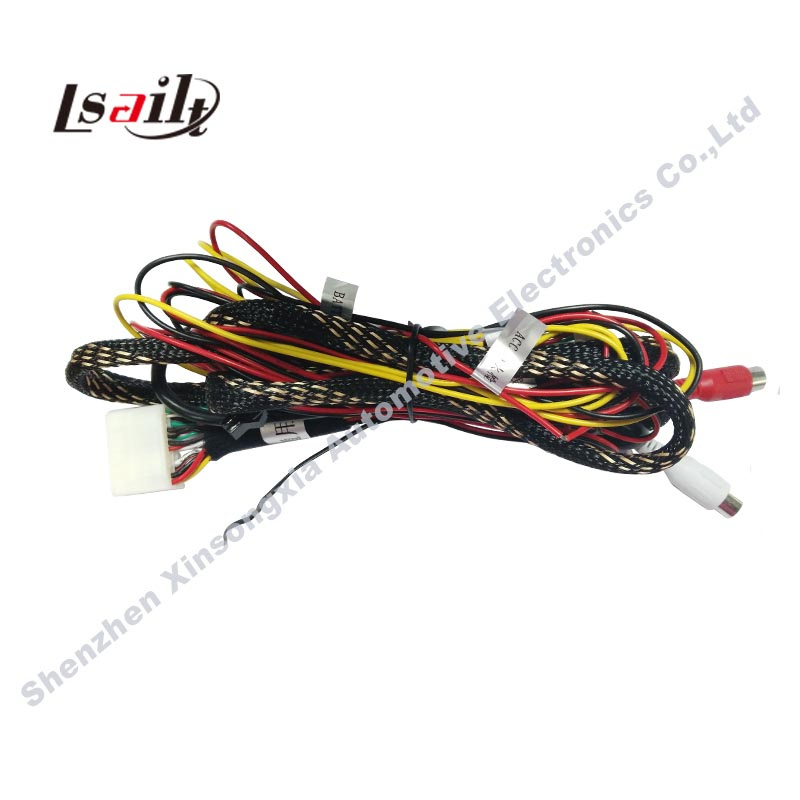

| POWER Line | 1(standard configuration) |
| ANT | 1(standard configuration) |
| Specification | 1(standard configuration) |
| Warranty card | 1(standard configuration) |

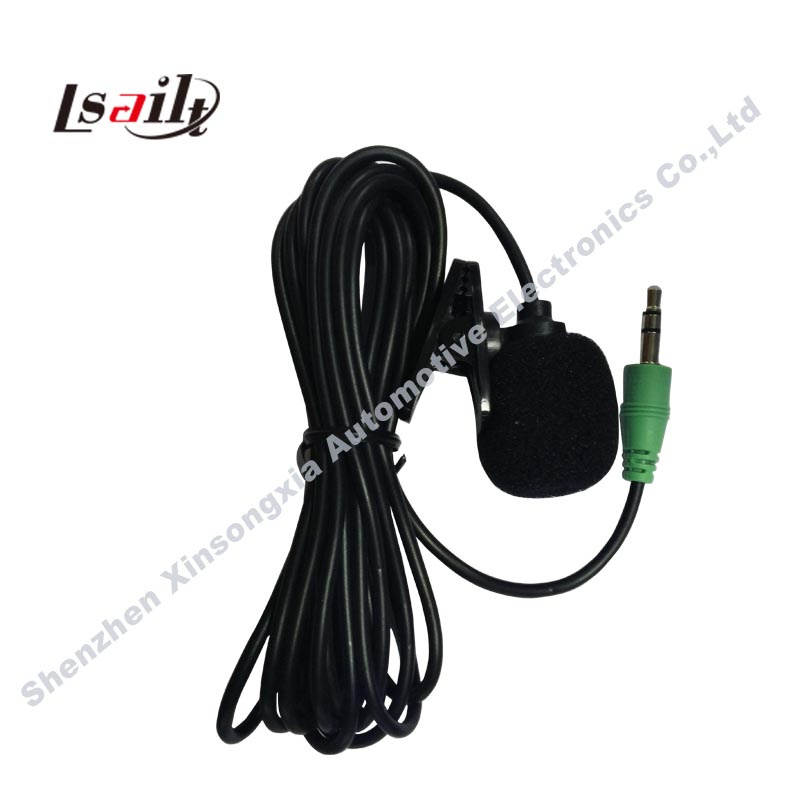

| Microphone | 1(standard configuration) |
| SPK | 1(standard configuration) |
| Map card | 1(standard configuration) |
| USB Function |
| USB Interface | Two-way interface,can external connect a stern line of USB HUB,USB. |
| | Connect external 3G Dongle(WCDMA/CDMA2000/TD-SCDMA) |
| | Maximum:32GB,support FAT/NTFS hard disk,U flash disk;compatible USB1.0,USB2.0 |
| Audio File Format | MP3,M4A,WAV,AMR,AWB,AAC,FLAC,MID,MIDI,XMF,RTTTL,RTX,OTA,WMA,RA,MKA,M3U |
| Functions of Audio Media | Select songs from list,play, pause,the last song, the next song,shuffle play,repeat playback,3 d effects ID3 display information of songs |
| Format of Video File | MPG,MPEG,DAT,VOB,TS,TRP,TP,M2TS,MTS,MP4 ,MOV,RMVB,RM,MKV,DIVX,AVI,ASF,WMV,FLV,TS,WEBM. |
| Functions of Video Media | Select video from list,Play, pause,the last one,the next one(Don't support background) |
| Format of Picture File | JPEG,JPG,GIF,PNG,BMP,WBMP |
| Functions of Picture Media | Select pictures from list,Play,pause,the last picture,the next picture,Rotating pictures,set as wallpaper. |
