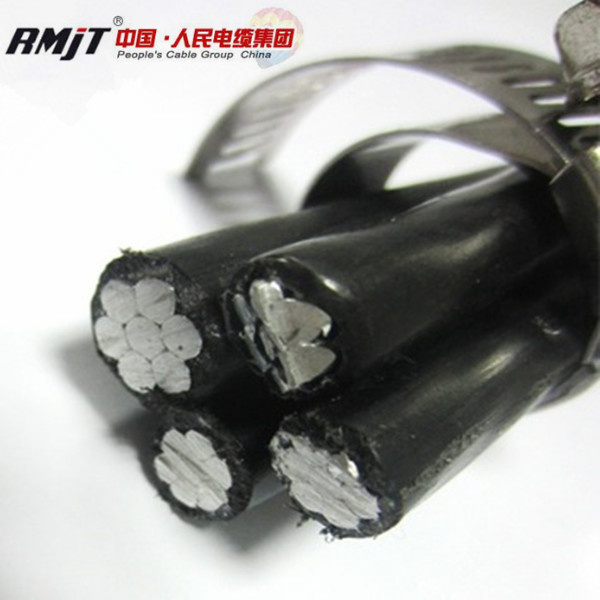

Quadruplex Service Drop Aluminium Conductor ABC Cable
| Price: |
US $ 0.1-9.8/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Quadruplex ABC Cable |
| Product Name: |
Quadruplex Service Drop Aluminium Conductor ABC |
| Number Of Wire: |
Solid, Dulplex, Triplex, Quadruplex |
| Cable Type: |
ABC Cable |
| Type Of Company: |
Manufacturer |
| Country Of Origin: |
Professional Manufacturer of 25 Years in China |
| Insulation: |
XLPE; PE |
| Related Voltage: |
0.6/1kv |
| Certificate: |
ISO9001-2008, ISO14001-2004, CCC, SGS, BV etc |
| Standard: |
ASTM B-230, 231, 232and399, Icea S-76-474; NFC 33209 |
| Package: |
Wooden Drum, Steel Drum or as Your Requirement |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Model: |
ABC Cable |
| Brand: |
Rmjt |
| Wire Core Material: |
Aluminum, Copper and Other Kinds |
Product Description
Quadruplex Service Drop Aluminium Conductor ABC cable
1. APPLICATIONS
Used to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for cross-linked polyethylene (XLPE) insulated conductors.
2. CONSTRUCTION
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or cross-linked polyethylene (XLPE). Neutral messengers are concentrically stranded 6201, AAC, or ACSR. Conductors are manufactured with ridges for phase identification (one conductor one ridge, one conductor two ridges, one conductor plain.)
3. SPECIFICATIONS
Quadruplex service drop cable meets or exceeds the following ASTM specifications:
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
• B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Quadruplex service drop cable meets or exceeds all applicable requirements of ICEA S-76-474 .

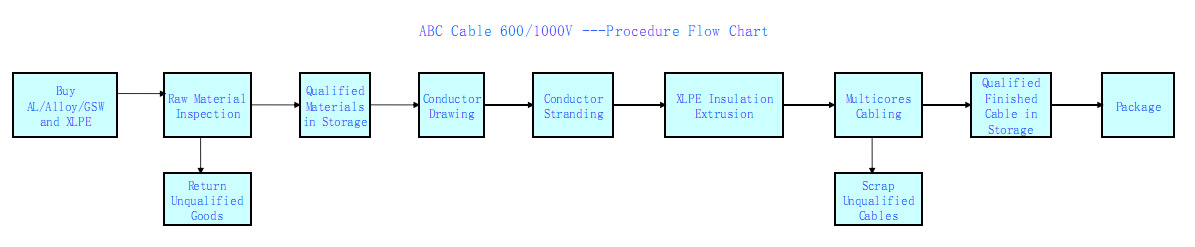

4. Producing
5.Types
| Quadruplex service drop |
| Code Name | Phase conductor | Bare Neutral Message | Nominal Weight (kg/km) | Ampacity |
| Size & No.of wires | Insulation Thick(mm) | Nominal Dia.(mm) | Size & No.of wires | Rated Strength (kg) | XLPE | Al | Total | Amps |
| Bare | OD |
| AAAC |
| Bay | 6-Solid | 1.143 | 4.115 | 6.401 | 6-7 | 503.485 | 63 | 155 | 217 | 78 |
| French-conch | 6-7 | 1.143 | 4.674 | 6.960 | 6-7 | 503.485 | 71 | 155 | 226 | 78 |
| Cerman-conch | 4-Solid | 1.143 | 5.182 | 7.468 | 4-7 | 798.318 | 79 | 247 | 324 | 103 |
| Arabian | 4-7 | 1.143 | 5.893 | 8.179 | 4-7 | 784.711 | 89 | 247 | 336 | 103 |
| Belgain | 2-7 | 1.143 | 7.417 | 9.703 | 2-7 | 1270.052 | 115 | 391 | 506 | 136 |
| Saddle | 1-19 | 1.524 | 8.433 | 11.481 | 2-7 | 1270.052 | 171 | 466 | 637 | 158 |
| Plow | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-7 | 2023.011 | 192 | 624 | 814 | 182 |
| Sherland | 1/0-19 | 1.524 | 9.474 | 12.522 | 1/0-7 | 2023.011 | 193 | 624 | 817 | 182 |
| Dapple-grey | 2/0-7 | 1.524 | 10.516 | 13.564 | 2/0-7 | 2444.850 | 217 | 786 | 1005 | 210 |
| Thoroughbred | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-7 | 2444.850 | 220 | 786 | 1007 | 210 |
| Dobbin | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-7 | 3079.876 | 249 | 991 | 1238 | 242 |
| Trotter | 3/0-19 | 1.524 | 11.938 | 14.986 | 3/0-7 | 3079.876 | 251 | 991 | 1243 | 242 |
| Pony | 4/0-7 | 1.524 | 13.259 | 16.307 | 4/0-7 | 3882.730 | 286 | 1250 | 1534 | 279 |
| Walking | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-7 | 3882.730 | 289 | 1250 | 1539 | 279 |
| ACSR |
| Morochuca | 6-Solid | 1.143 | 4.115 | 6.401 | 6-6/1 | 539.722 | 63 | 149 | 229 | 78 |
| Chola | 6-7 | 1.143 | 4.674 | 6.96 | 6-6/1 | 539.722 | 71 | 149 | 237 | 78 |
| Morgan | 4-Solid | 1.143 | 5.182 | 7.468 | 4-6/1 | 843.677 | 79 | 238 | 344 | 103 |
| Hackney | 4-7 | 1.143 | 5.893 | 8.179 | 4-6/1 | 843.677 | 90 | 238 | 356 | 103 |
| Palomino | 2-7 | 1.143 | 7.417 | 9.703 | 2-6/1 | 1292.732 | 115 | 377 | 557 | 136 |
| Albino | 1-19 | 1.524 | 8.433 | 11.481 | 1-6/1 | 1610.245 | 171 | 473 | 699 | 158 |
| Standardbred | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-6/1 | 1986.724 | 192 | 598 | 859 | 182 |
| Costena | 1/0-19 | 1.524 | 9.474 | 12.522 | 1/0-6/1 | 1986.724 | 193 | 598 | 862 | 182 |
| Chicoteagues | 2/0-7 | 1.524 | 10.516 | 13.564 | 2/0-6/1 | 2404.027 | 217 | 753 | 1060 | 210 |
| Grullo | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-6/1 | 2404.027 | 220 | 753 | 1063 | 210 |
| mare | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-6/1 | 3002.766 | 249 | 951 | 1308 | 242 |
| Suffolk | 3/0-19 | 1.524 | 11.938 | 14.986 | 3/0-6/1 | 3002.766 | 251 | 951 | 1313 | 242 |
| Stallion | 4/0-7 | 1.524 | 13.259 | 16.307 | 4/0-6/1 | 3787.477 | 286 | 1198 | 1622 | 279 |
| Appaloosa | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-6/1 | 3787.477 | 289 | 1198 | 1627 | 279 |
| AAC |
| Quarter | 6-Solid | 1.143 | 4.115 | 6.401 | 6-7 | 255.371 | 63 | 149 | 211 | 78 |
| Clydesdale | 4-Solid | 1.143 | 5.182 | 7.468 | 4-7 | 399.613 | 79 | 237 | 315 | 103 |
| Pinto | 4-7 | 1.143 | 5.893 | 8.179 | 4-7 | 399.613 | 89 | 237 | 326 | 136 |
| Mustang | 2-7 | 1.143 | 7.417 | 9.703 | 2-7 | 612.347 | 115 | 377 | 491 | 158 |
| Shire | 1-19 | 1.524 | 8.433 | 11.481 | 1-19 | 743.888 | 171 | 475 | 646 | 158 |
| Libyan | 1/0-7 | 1.524 | 9.347 | 12.395 | 1/0-7 | 902.644 | 192 | 598 | 790 | 182 |
| Criollo | 1/0-19 | 1.524 | 9.474 | 12.522 | 1/0-19 | 902.644 | 193 | 598 | 793 | 182 |
| Orloff | 2/0-7 | 1.524 | 10.516 | 13.564 | 2/0-7 | 1138.511 | 217 | 754 | 973 | 210 |
| Peroheron | 2/0-19 | 1.524 | 10.643 | 13.691 | 2/0-19 | 1138.511 | 220 | 754 | 976 | 210 |
| Mongolian | 3/0-7 | 1.524 | 11.786 | 14.834 | 3/0-7 | 1378.914 | 249 | 951 | 1199 | 242 |
| Hanoverian | 3/0-19 | 1.524 | 11.938 | 14.986 | 3/0-19 | 1378.914 | 251 | 951 | 1204 | 242 |
| Singlefoot | 4/0-7 | 1.524 | 13.259 | 16.307 | 4/0-7 | 1737.25 | 286 | 1199 | 1485 | 279 |
| Oldenburg | 4/0-19 | 1.524 | 13.411 | 16.459 | 4/0-19 | 1737.25 | 289 | 1199 | 1490 | 279 |
6.Packing and delivery

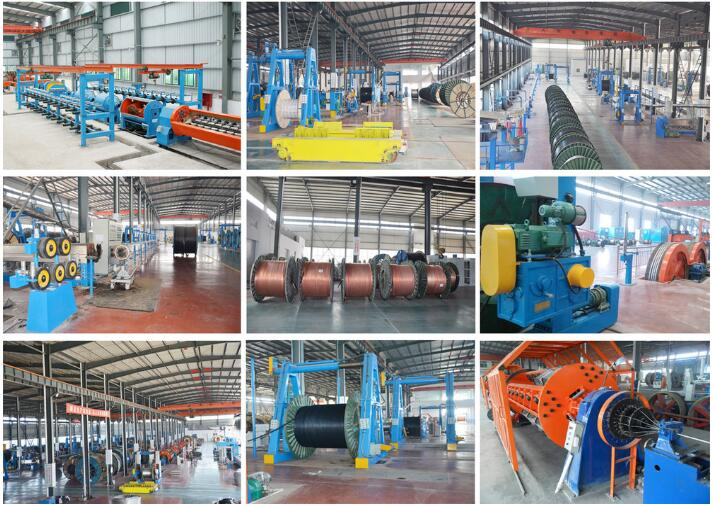

7.Production line

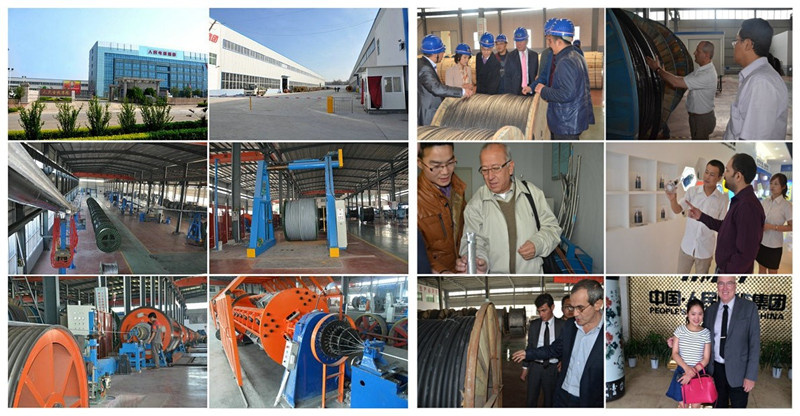

8.Our company
People's Cable Group Co., Ltd, a professional wires and cables manufacturer for 27 years in China. we mainly produce power cables, control cables, aerial overhead cables(ABC, AAC ACSR and AAAC cables) etc. Standards Supported: ASTM, BS, CSA, IEC, DIN and GB etc.
1. Factory: 160000 square meters, available for OEM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: TUV, OHSAS, CCC, ISO9001:2008;
4. Guarantee: 20 years;
5. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
9.FAQ
Q: Do you accept customize?
A: Yes, we have our own factory, all communication cables are customized.
Q: Can you print our logo or company name?
A: Yes, we could print your logo or company name on our products.
Q: Can you design for us?
A: Yes, we have professional designer, please tell us your requirement, let us do it for you.
Q: Is it possible to get a free sample?
A: Yes, stock samples are free, but shipping cost you collect. We could also customize sample for you,the specific price will be confirmed according to the sample's workmanship.If we have a further cooperation in the future, the sample fee will be returned.
Q: What is your MOQ?
A: Usually, MOQ of communication cable is 1,000 meter, MOQ of rf connector is 500 pcs. But depend on the different material, size and workmanship, the MOQ will be changed.
Q: How long can we receive your quotation?
A: If your information is very detail, quotation will be offered within 6 hours. In order to receive our quotation as soon as possible, please give us following information:
1) Type; 2) Size; 3) Specification; 4) Quantity.
If it is possible, please also provide with pictures or design for checking. Sample will be best for clarifying.
Q: Do you have a range of stock items for sale?
A: We have enough neutral storage for hot-selling items.
Q: What is your delivery time?
A: Usually 7-10 days. According to the product and quantity, delivery time will have different.10.How to contact us
Cara Zhang | General Manager | People's Cable Group
T: 86-371-55632836 | M: 86-18903869075
Fax: 86-371-55632837
Web: www.rmjtcable.com
For more details please check our website as my contact information.Thanks!
People's Cable Group Co., Ltd. Was founded in 2007, located in Zhengzhou Gongyi Economic development zone. In the east of ancient capital city LuoYang, north of the ShaoLin Temple, in south of the Yellow River. With good transport facilities which adjacent to the 310 National Highway and Lian Huo Expressway. In 2012, our group company set up a new factory in ZhuLin Town of Gongyi city which is specialized in transmission lines (AAC, AAAC, ACSR, ACSR/AW, AACSR, ACAR) for meeting the domestic and international market demand. Our company occupies total area of more than 160, 000 square meters, with building area 100, 000 square meters. The real capital assets more than USD 10 million, with total 500 staff members, 65 of which are professional and technical experts.
As one of top rank cable manufacturers in China. We are specialized in PVC building wire, PVC and XLPE insulation power cable with low, medium and high voltage up to 35KV, rubber, mining and welding cables, aerial bundled cable up to 10KV(ABC)cable, bare conductors such as: All aluminum conductor(AAC), All Aluminum Alloy Conductor(AAAC Conductor), Aluminum Conductor Steel Reinforced(ACSR Conductor), Aluminum Conductor Aluminum Clad Steel Reinforced (ACSR/AW), All Aluminum Alloy Steel Reinforced(AACSR), and Aluminum Conductor Aluminum Alloy Reinforced(ACAR). We can produce cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, GOST, SABS and so on. Our company insisting"Based in Good Faith, In pursuit of perfection, Casting Excellent Products. "
With the perfect quality and after-sales service. Our products are very popular in domestic market, whatever in civil using and the government projects. For overseas market, till now we have expanded our market to south America like Chile, Colombia. Peru, Bolivia and so on. Euro-American market like U. S. A. Germany, Spain, U. K. Middle East, Africa, Southeast Asia, Mongolia and some other areas, As one of the first rank cable supplier in China, we have obtained ISO9001, ISO14001, ISO18001 and CCC certificates.
Through many years of unremitting effort and endeavors, we have achieved sound cooperation and a wide range of compliments from clients all over the world by superior quality, reasonable price and sincere services. Hereby we sincerely welcome you to contact us and visit our company.
