Quadruplex Service Drop, Aluminum Wire, ABC Cable

Name: Quadruplex Service Drop, Aluminum Wire, ABC Cable
Brand: all-electronics-online.com
SKU: 619488272
Availability: InStock
Rating: 5 (26 reviews)

Price:	US $ 0.99-4.99/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	ABC Cable, Service Drop Wire
Markets:	South America,Southeast Asia,Africa
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Aluminum
Insulation Material:	PVC
Certification:	CCC
Range Of Application:	Power Station

Product Description

Instruction For ABC Cable

Application

Covered line wire

Covered line wire is used primarily for overhead secondary distribution lines.It is not an electrically insulated conductor and is treated as bare conductor when installed.

Duplex service drop

To supply 120 volt aerial service for temporary service at construction sites,outdoorr or street lighting.For service at 600 volts or lower ar a conductor temperature of 75 °Cmaximum.

Triplex service drop

To supply power from the utility's lines to the consumer's weatherhead.For service at 600 volts or less (pahse to phase) at a conductor temperature of 75°Cmaximum for polyethylene insulation or 90°C maximum for crosslinked insulation.

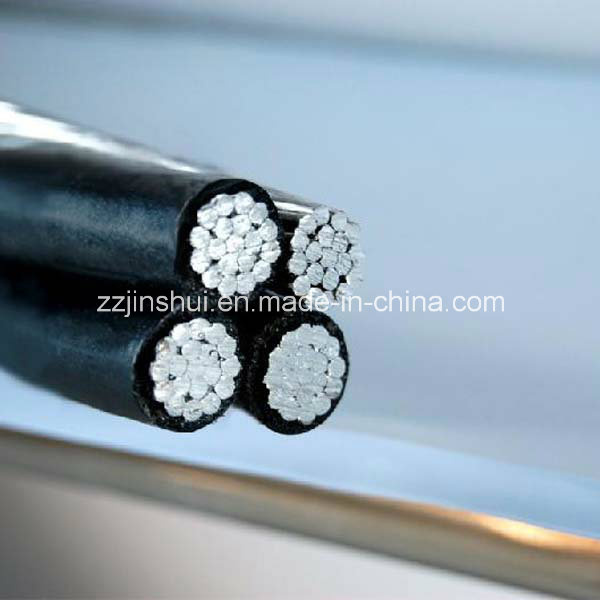

Quadruplex service drop

Used to supply 3 phase power,usually from a pole-mounted transformer,to the user's service head where connection to the service entrance cable is made.To be used at voltage of 600 volts or less phase to phase and at conductor temperature no to exceed 75°C for polyethylene insulated conductor or 90°C for crosslinked polyethylene insulated conductors.

Construction

Code Word	Phase conductor			Bare Neutral Messenger				Nominal Lay Length	Weight Per 1000ft. (lbs.)		Allowable Ampacities+
Code Word	Size (AWG)	Stranding	Insul. Thick. (Mils)	Size (AWG)	Stranding	Rated Strength (lbs.)		inches	XLP	POLY	XLP	POLY
AAC Neutral-messenger
Pekingese	6	1	45	6	7	563		10.36	61	61	85	70
Collie	6	7	45	6	7	563		10.36	64	64	85	70
Dachshund	4	1	45	4	7	881		10.36	92	92	115	90
Spaniel	4	7	45	4	7	881		10.36	96	96	115	90
Doberman	2	7	45	2	7	1350		14.88	147	147	150	120
Malemute	1/0	9	60	1/0	7		1990	14.88	234	234	205	160

Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.

Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.

As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.

For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
