Quality 50ohm Coaxial Cable LMR240 with Connectors

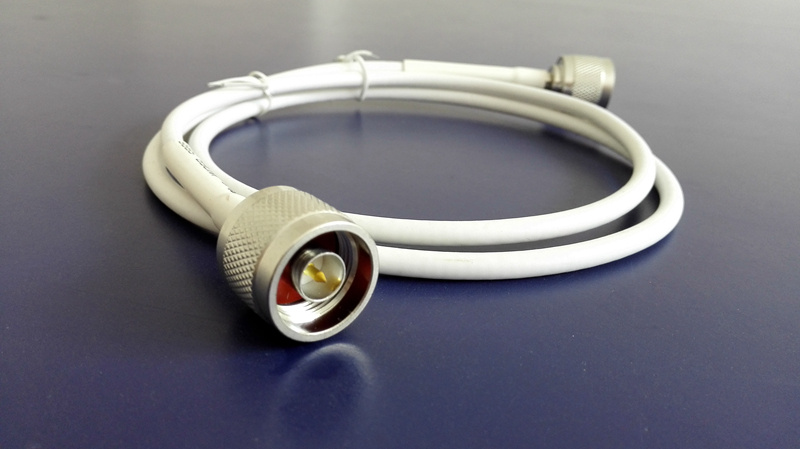

Name: Quality 50ohm Coaxial Cable LMR240 with Connectors
Brand: all-electronics-online.com
SKU: 765870185
Availability: InStock
Rating: 4.5 (128 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LMR240
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	LMR240 RF Coaxial Cable
Inner Conductor:	1.42bare Copper
Insulation:	Foam PE :3.81mm:4.52tc Wire Braid
First Shield:	3.94bonded Aluminum Foil
Second Shield:	4.52tc/TCCA/Al Wire Braid
Jacket:	6.10PVC/PE/LSZH
Application:	RF Cable
Certification:	RoHS
Conductor Material:	Tc/TCCA/Al Wire Braid
Cover Material:	PVC/PE/LSZH
Type:	Coaxial
Model:	LMR240
Brand:	Ottocable

Product Description

LMR240

Overview
This is a coaxial cable with foam insulation. It has a good attenuation and shielding effectiveness.It has been widely applied to radio transmission,base radio antenna station and other communication systems.

Features
·         50 Ohm data signal transmission;
·         The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
·         Excellent performance in high frequency,VSWR stability;
·         Similar to the 4D-FB coaxial cable;
·         RoHS compliant;
Assemblies & Application

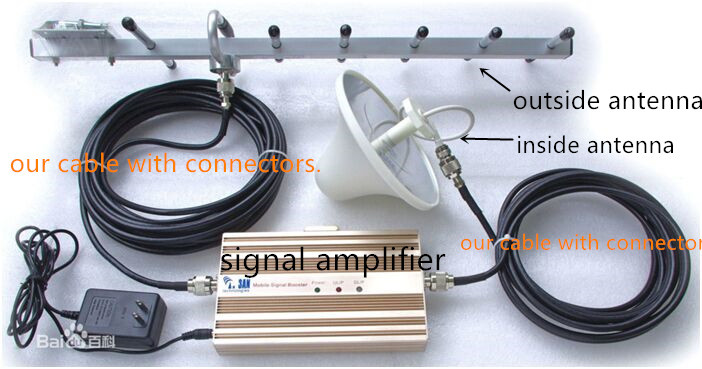

These 50 Ohm 240 series coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.As a substitute for RG58 coaxial cable, these versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.

Communications RF Coax Cable

LMR240

Construction

Item	Material	Diameter(mm)	Remarks
Inner Conductor Dielectric First Shield Second Shield Jacket	Bare Copper/CCS Foam PE Bonded Aluminum Foil TC Wire Braid /AL/TCCA PVC/PE/LSZH	1.42 3.81 3.94 4.52 6.10	Per customer's requirements: Out conductor could be 96 ,112or 128 TC wires braiding; Jacket could be PVC,PE or LSZH;

Electrical Characteristics

Impedance (Ω)
Capacitance (pF/m)
Velocity of Propagation (%)
Return Loss
Screening Effectiveness(db)
Voltage With Stand
Installation Temp(ºC)
Operating Temp(ºC)

50±3
79.4
84.0
≥20
≥90
1500.0
-20 to +70
-20 to +70

Attenuation (@200C)

Frequency(MHz)	Max Attenuation(dB/100m)
150 220 450 900 1500 1800 2000 2500	9.9 12.0 17.3 24.8 32.4 35.6 37.7 42.4

More Ideas
1)  If require conventional construction and materials, please click FLMR240;
2)  If require good flexibility,please click LMR240-UF;
3)  If require lightweight and weldable shield,please click LMR240-CCS-TCCA;
4)  If require lightweight and lower price,please click LMR240-CCS-AL ;
5)  For more FLMR240 assemblies,please click FLMR240 ASSEMBLIES;
6)  Any other requirements or queries, please click CONTACT US.

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
