Quality 50ohms RF Coaxial Cable Rg174s

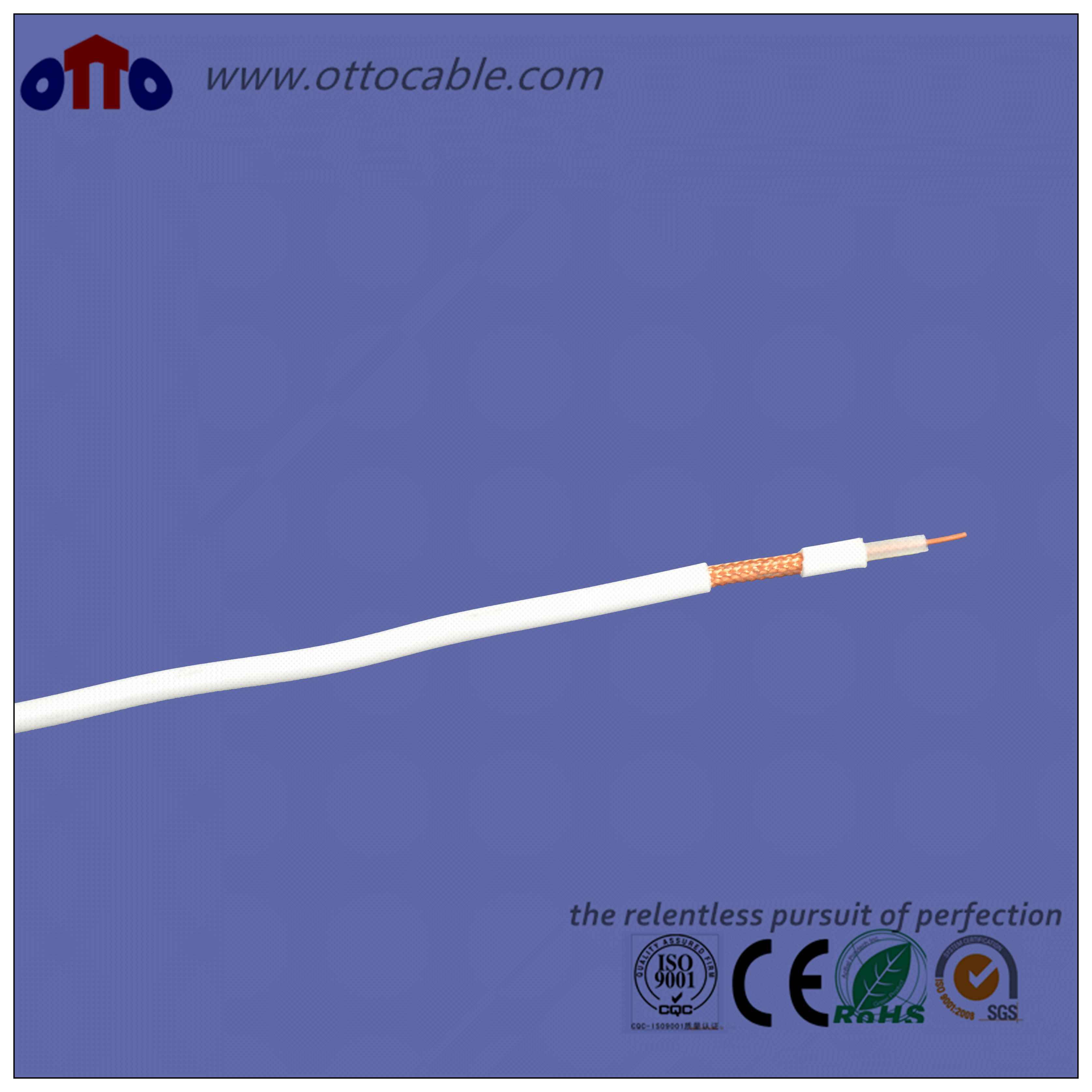

Name: Quality 50ohms RF Coaxial Cable Rg174s
Brand: all-electronics-online.com
SKU: 766406395
Availability: InStock
Rating: 4.5 (146 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG174S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	Rg174 Coaxial Cable
Inner Conductor:	0.46 Bc
Insulation:	1.52 Solid PE
Out Conductor:	1.90 Bc Wire Braid
Jacket:	2.80 PVC/LSZH
Jacket Color:	Black
Impedance:	50ohm
Outer Packing:	Carton Box, Pull out Box, Pallet
Place Of Origin:	Zhejiang, China (Mainland)
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Certification:	RoHS
Cover Material:	PVC/LSZH
Type:	Coaxial
Model:	Rg1174s
Brand:	Ottocable

Product Description

RG174

This 50 Ohm RG174 coaxial cable has small outer diameter and can be fixed with kinds of connectors. These versatile cable assemblies with various lengths have been widely used for tight fit applications.

Features
·         50 Ohm data signal transmission;
·         The inner conductor could be stranded or solid;
·         Special insulation materials,providing good electrical property and welding performance;
·         Small diameter is ideal for tight fit applications;
·         Customized cable color , winding and connector, meet your different requirements;
·         RoHS compliant;
Assemblies & Application

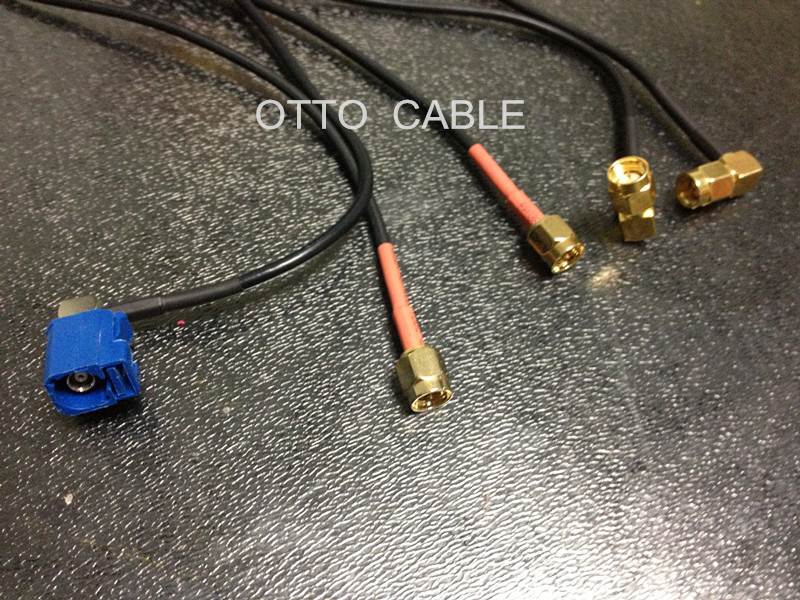

This 50 Ohm RG174 coaxial cable can be fixed with kinds of connectors,such as SMA,FRAKA,BNC,MCX connectors.These versatile cable assemblies with various lengths have been widely applied to GPS,BEIDOU,GSM and other communication systems.

RG MIL-C-17 Coax Cable

RG174

Construction

	Material	Diameter(mm)	Remarks
Inner Conductor Insulation Out conductor Jacket	Bare Copper Solid PE BC wire Braid PVC/LSZH	0.46 1.52 1.90 2.80	Per customer's requirements: Out conductor could be 48,64,80 or 96 BC wires braiding; Jacket could be PVC or LSZH;

Electrical Characteristics

Capacitance (pF/m)
Impedance (Ω)
Velocity of Propagation (%)
Max Operating Frequency (MHz)
Max Operating Voltage(VRMS)
Inner Conductor Resistance (Ω/kM)
Return Loss (dB)
Operating Temperature(0C)

101.0
50.0
66.0
2000
1500.0
130
20
-30 to +70

Attenuation [@68oF (20oC)]

Frequency(MHz)	Max Attenuation (dB/m)
400 600 860 1000 1575	0.62 0.72 0.90 1.00 1.20

More Ideas
1)  If require conventional construction and materials, please click RG174;
2)  If require better welding performance,please click RG174-TC-TC;
3)  If require two-way transmission,please click RG174 DUAL;
4)  If require a solid inner conductor,please click RG174S;
5)  If require to be used in high temperature environment at 105oC,please click RG174-XLPE;
6)  If require lightweight and lower price,please click RG174-BC-CCA or RG174-CCS-CCA;
7)  If require high tensile strength,please click RG174-CCS-BC or RG174-CCS-CCA;
8)  For more RG174 assemblies,please click RG174 ASSEMBLIES;
9)  Any other requirements or queries, please click CONTACT US.

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
