| Prod Model: |
SZH897 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finish: |
HASL, Enig, OSP, Gold Finger |
| Tg Value: |
130, 135, 140, 150, 170, 180 |
| Solder Mask Colour: |
Green, Blue, White, Black, Yellow, Red |
| Silk Screen Colour: |
White, Black, Yellow, Red |
| Min Trace Width: |
0.075mm |
| Min Trace Space: |
0.075mm |
| Certificates: |
UL, ISO, RoHS, Ipc |
| Material Supplier: |
Nanya;Sheng Yi;Kb |
| Brand Name: |
PCBA |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Complex |
| Flame Retardant Properties: |
V0 |
Product Description

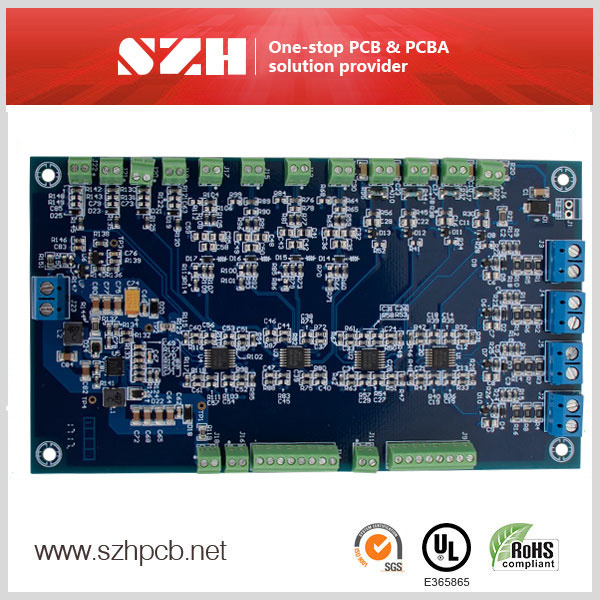

Quality Assured PCB Board Assembly PCBA for Traffic Control SystemOne-Stop PCB&PCBA Service Provider1. PCB, PCBA, PCB Design,PCB Layout,PCB Assembly
2. UL, ROHS,CE
3. ISO9001 certificate
4. Lead free technology
5. SMT Pick And Place PCB Assembly
6. Fast delivery with quality assuredWelcome to Sunthone Technology Circuit Co,.LtdOne-stop PCB assemblies service, We can offer 1 to 12 Layer PCB fabrication, PCB design, PCB layout, PCB manufacturing, PCB Assemblies, components sourcing, PCBA Function Test, design solution.
1. Who we are | PCB Manufacturer | Flexibility | Quality |
| Sunthone, firstly established as a PCB manufacturer, has its own PCB factory with advanced manufacturing facilities, capable in fabricating up to 24 layers PCB boards. The factory is ISO9001 certified, with its PCB products UL approved and RoHS compliant. Your PCB cost and lead time can be reduced to buy PCBs from us. | Sunthone is highly customer oriented catering for customer's specific requirements. There are various kinds of available services, you can choose either full turn-key solutions or any single specific service. We can handle any size project from minimum quantity one piece to mass production. And we provide quick turn PCB and PCBA manufacturing service. | Sunthone fully understands the importance of quality for your projects. The quality control system is integrated in each step from preliminary PCB manufacturing to final PCBA packing, and a well-organized inspection and test procedure is performed to ensure the superior quality. All the products are 100% inspected for each shipment. |
2.Technical capability & support | Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm |
| Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm |
| Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm |
| Min Trace | 0.1mm | Min Annular Ring | 0.1mm |
| Min Space | 0.1mm | Min Hole Location Tolerance | ±0.075mm |
| Min Hole Size | 0.2mm | Min Hole Size Tolerance | ±0.05mm |
| Board Wrap | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm |
| Solder Mask | Green, Yellow, Red, Black, Blue, White |
| Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP |
| Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic |
| Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD |
| CAM software | Genesis, CAM350 |
3.Service for productoion
Sunthone employs and develops a team of experienced management directors and efficient production workers, with its sustainable development, career planning, advanced training-system and satisfactory welfare for all staff. On the other hand, Sunthone strives to improve quality and lead time through management and technology innovation. | Standard lead time |
| 2 layers | 4WD |
| 4 layers | 5WD |
| 6 layers | 6WD |
| 8 layers | 7WD |
| 10 layers | 8WD |
| 12 layers | 8WD |
| 14 layers | 9WD |
| More than 16 layers | Up to difficulty |
| Competitive Price |
| Sunthone works with customers to reduce their purchase cost, by our rich experience in management and manufacture, maximized utilization of materials and facilities, and well-trained operational workers.Sunthone's price can be as low as 20% only of some other competitors on some cases. |
| Management Innovation | Raw Material Utilization Rate | Facilities Utilization Rate | Labor Efficiency |
| Sunthone | 100% | 100% | 95% |
| Competitors | 50% | 30% | 50% |
| Values | Maximized raw material utilization reduces the material cost greatly, and enables Sunthone to use better raw materials. | Maximized facilities utilization improves Sunthone's production efficiency and shorten the lead time. | High labor efficiency reduces labor cost, and enables Sunthone to provide better training and welfare for the workers. |
| Customer Benefits | Better quality with better raw materials. | Saves valuable time and money for customer. | Well trained and efficient worker improves quality and lead time. |
4. PCB + Assembly More and more of our existing PCB customers are now asking us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' requirements, Sunthone develops from a PCB manufacturer to a one-stop PCBA service provider, including PCB assembly, components sourcing, stencils, cable assembly and final product assembly and testing. | Available Service | Assembly Technology |
| PCB Manufacturing | SMT |
| PCB Assembly | THT |
| Components Sourcing | Reflow Soldering |
| SMT Stencils | Wave Soldering |
| Cable Assembly | Hand Soldering |
| PCBA Testing | Repair/Rework |
| Final Product Assembly | Mixed Assembly Technology |
5.Others service can be provided Quick response, Sunthone will reply Customer's any inquiry within 2 hours;
More than 180 type of PCB can be worked out Every day;
24 hours technique Support;
24 hours Engineering Gerber files treatment.
24 hours English Engineering Questions Confirmation by E-mail.

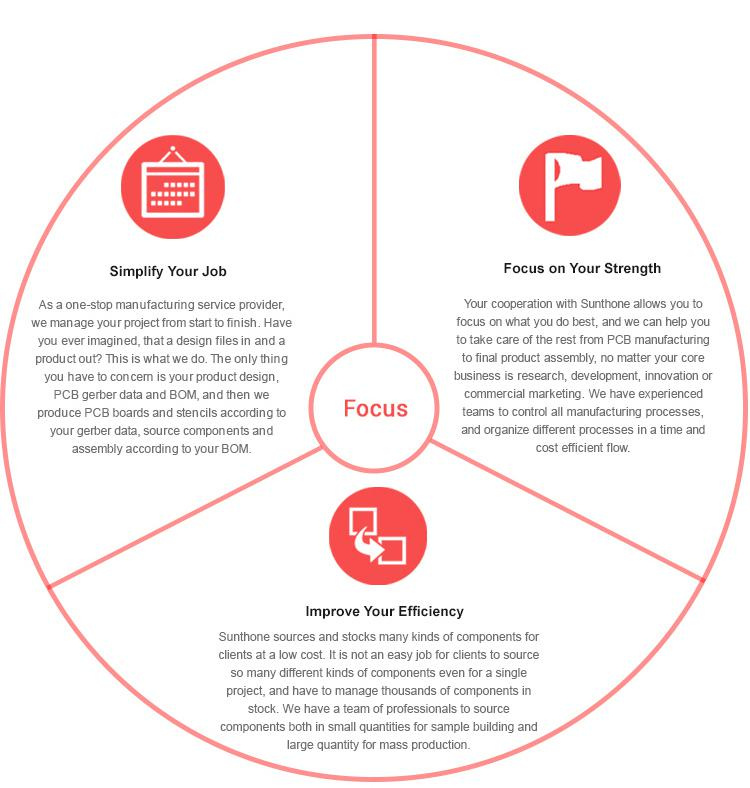

Experienced Impedance Designer.6. Why choose us?

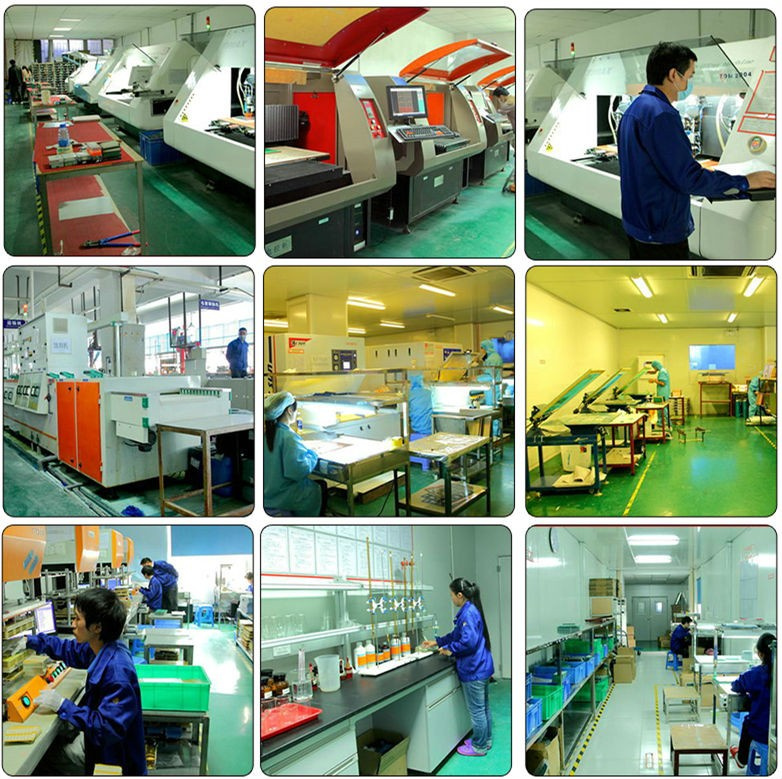

7. Equipment

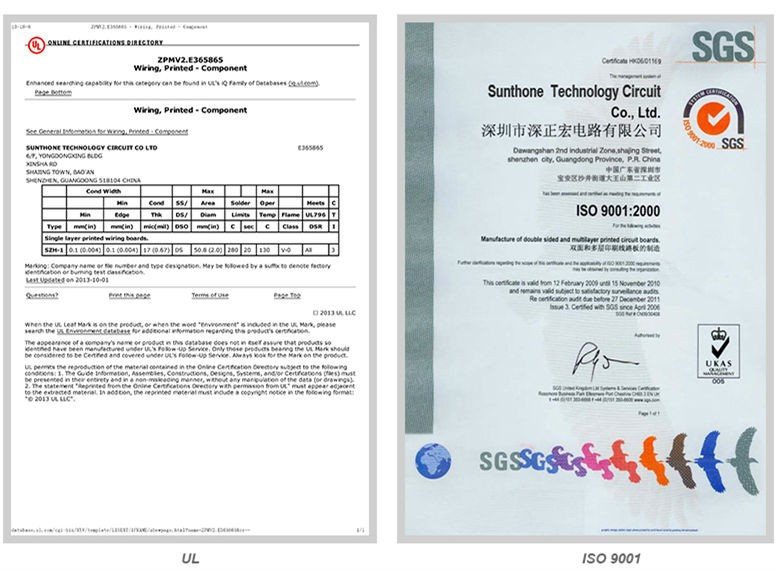

8.Certification
9.Partners
Needed:
1. PCB gerber file.
2. BOM LIST FOR PCB ASSEMBLY.
3. Send us your sample PCB board or PCBA.
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6.By Paypal,T/T,West Union,etc.
Delivery Time for PCB board:
1) PCB production time: sample: 3-4 days / mass production: within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: samples: whthin 2 days / mass production: within 5 days
We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us !
Sunthone is a one-stop PCB & PCBA solutions provider, offers PCB manufacturing, PCB assembly, components sourcing, stencils and PCBA testing services, and helps to simplify your job, improve your efficency and focus on your strength.
Firstly established as a PCB factory, more and more of our existing PCB customers ask us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' request and market developing trends, Sunthone develops into a one-stop PCB & PCBA solutions provider with all related services.
Sunthone has ISO 9001 and UL certificates, so all the products delivered from Sunthone are quality guaranteed with ISO and UL standards. Under such quality guarantees, its products are widely applied in many industrials, such as Industrial Control, Security System, LED & lightning, Medical Facilities, Power Supply, Computers and Communications. The UL certificate of power supply thick copper PCBs is available, too.
Flexibility is another strength of Sunthone. It provides various services at flexible quantities from prototype to mass production in a flexible way, to meet different requirements from clients.
Sunthone is always having an open mind and listening ears to learn your ideas, willing to work with you on a mutual beneficial basis to achieve bilateral success.
