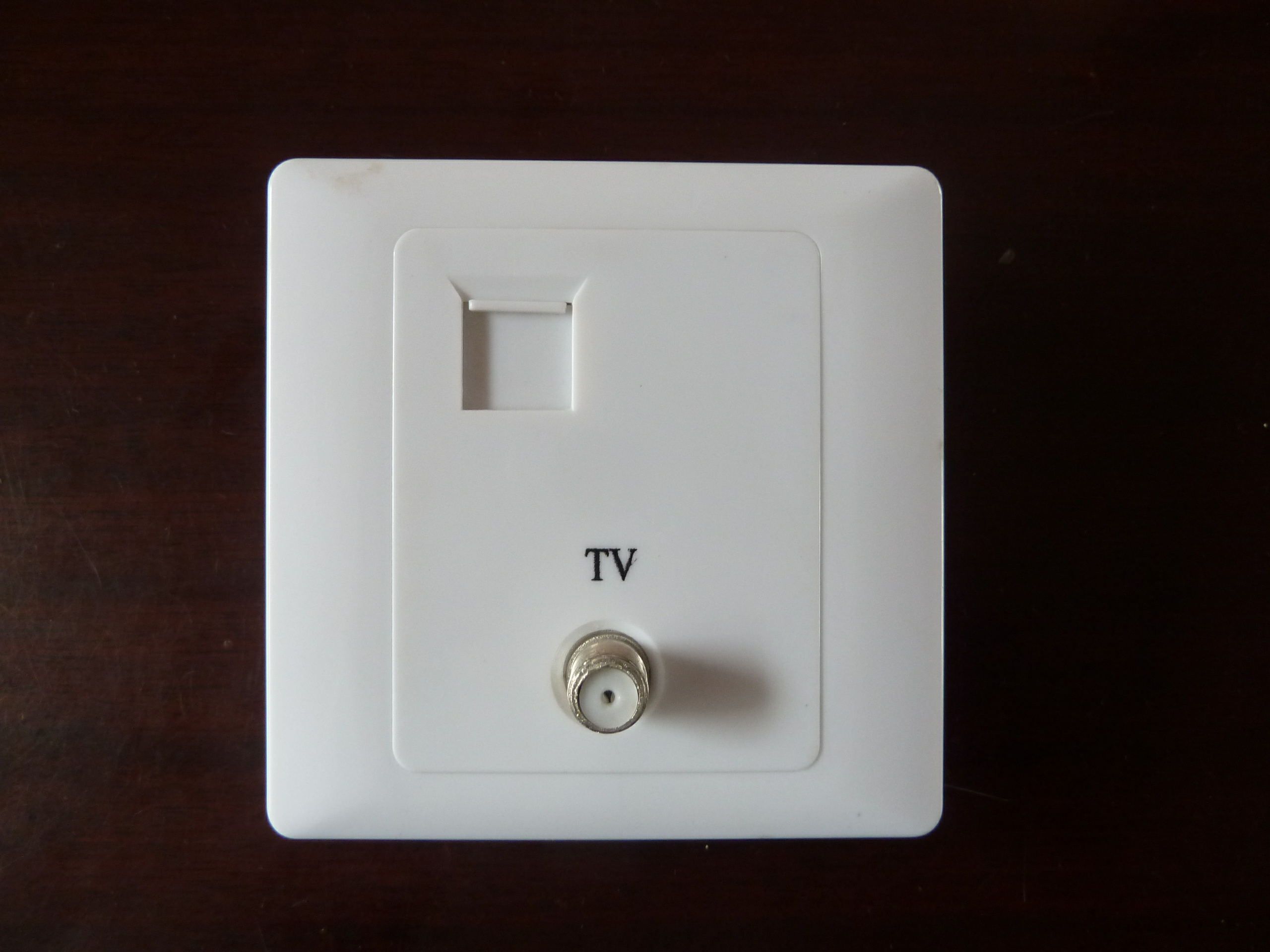

Quality Boutique Connector Socket Data Terminal (CATV)

Name: Quality Boutique Connector Socket Data Terminal (CATV)
Brand: all-electronics-online.com
SKU: 715786725
Availability: InStock
Rating: 4.9 (132 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	CATV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Factory:	Yangzhou
Application:	Transmission of Electrical Signals
Type:	Single Hole Terminals
Brand:	Yd

Product Description

Key Specifications/Special Features:

Materials: PVC and CS
Waterproof
With optional ratchet function
Adjustable plug length
Packing: BlisterQuality boutique coaxial connector, F connector, CATV connector manufacturers: Jiangsu Yuandong Electronic Technology Co., Ltd...
Located in the scenic China Yangzhou, in good faith, high-quality, pioneering, excellent price cooperation with customers around the world, reputation for customer satisfaction.
Jiangsu Yuandong Electronic Technology Co., Ltd. Willing and the users around the world to work together to create a win-win and brilliant.

Company Description
Quality boutique coaxial connector, F connetor, CATV connector manufacturers, Jiangsu Yuandong Electronic Technology Co., Ltd
Located in the scenic China Yangzhou, in good faith, high quality, pioneering, excellent price cooperation with customers around the worl, reputation for customer satisfaction.
Jiangsu Yuandong Electronic Technology Co., Ltd. Willing and the users around the world to work together to creat a bright future.
ADD: Lidian Village, Yangzhou, Jiangsu, China
Website: http://liaidong.En.Made-in-china.com/
Tel: 86-13912125469
Fax: 0514-87551698Contact: Li Aidong

Test results
No.	Test Parameters	Unit	Specifications	Test results			Conclusions
				1	2	3
1	Distribution loss	dB	≤4.2	3.66	3.75	3.68	Qualified
			(5~65MHZ)
			≤3.7	3.55	3.62	3.60
			(65~550MHZ)
			≤4.0	3.64	3.75	3.70
			(550~750MHZ)
			≤4.5	3.76	3.90	3.82
			(750~1000MHZ)
2	Mutual Isolation	dB	≥22	31.0	31.9	31.4	Qualified
			(5~65MHZ)
			≥25	34.0	30.2	31.0
			(65~550MHZ)
			≥22	34.1	28.8	29.6
			(550~750MHZ)
			≥22	30.7	24.3	26.6
			(750~1000MHZ)
3	Return Loss	dB	≥14	28.4	26.8	28.2	Qualified
			(5~65MHZ)
			≥16	24.9	28.6	25.2
			(65~550MHZ)
			≥14	29.6	24.6	28.4
			(550~750MHZ)
			≥14	27.0	23.8	26.7
			(750~1000MHZ)
4	Screening attenuation	dB	≥100	105.0	105.5	104.5	Qualified

Jiangsu Yuandong electronic and technology Co., Ltd. Was founded in 2012, we are a manufacturer and professional in CATV connector area.

We can do OEM and ODM for service, our designer can make special design according to your requirements.

As for quality controlling, we think quality is priority. Our company always attach great importance to quality controlling from the very beginning to the very end:

1). All the material we used are according to RoHS.;

2). Skillful workers care every details in handling the producing and packing processes;

3). Quality control department specially is responsible for quality checking in each process.

Electronic appliances, connectors, branch distributor, metal products, cable television equipment, electronic cable connectors, communications equipment, photoelectric products, auto parts, self-support and agent all kinds of goods and technology import and export business
