Quality Consumer Electronics High Tg Fr4 PCB

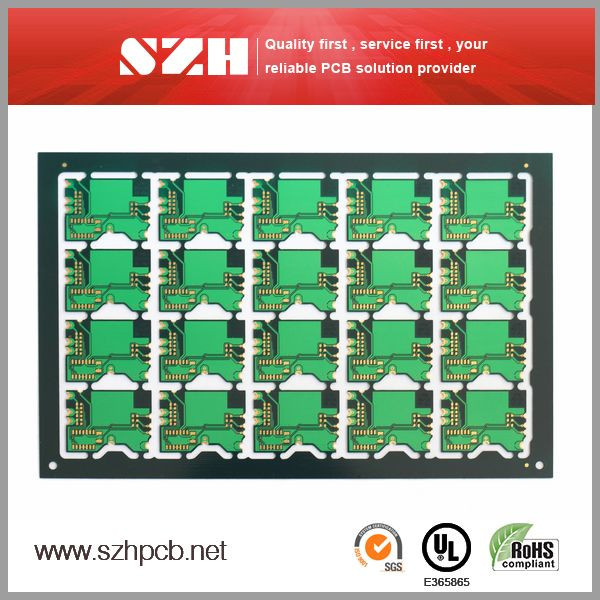

Name: Quality Consumer Electronics High Tg Fr4 PCB
Brand: all-electronics-online.com
SKU: 744172215
Availability: InStock
Rating: 4.9 (49 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,DAP,FCA
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	SZH980PCB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Layer:	6 Layer
Laminate:	Fr4
Copper Thickness:	1oz
Board Thickness:	1.0mm
Solder Mask Colour:	Green
Silk Screen Colour:	White
Tg Value:	180
Cti Rating:	175
Surface Finish:	Enig
Min Trace Width/Space:	0.075/0.075mm
Structure:	Multilayer Rigid PCB
Material:	Epoxide Woven Glass Fabric Laminate
Production Process:	Semi-Additive Process

Product Description

Quality consumer electronics high tg fr4 PCB

1, RoHS & Lead Free
2, UL & ISO certified
3, Quality & service
4, Quick turn
5, Surface finish: Immersion Gold/HALS/OSP/Gold finger/Carbon print/Peelable mask/Plating gold
6, Solder mask colour: Green/white/yellow/blue/red/black
7, Silk screen: White/black/yellow/red/blue/green
8, Applied in industrial facilities/medical facilities/consumer electronics/telecommunications/power supply

We deliver services, not only products.
We offer solutions, not only goods.

Technical Capacity

Layers	1-16 layers	Min Board Thickness(2-layer)	0.2mm
Max Board Size	635 × 1100mm	Min Board Thickness(4-layer)	0.6mm
Min Board Size	20 × 30mm	Min Inner-layer Thickness	0.1mm
Min Trace	0.075mm	Min Annular Ring	0.1mm
Min Space	0.075mm	Min Hole Location Tolerance	±0.075mm
Min Hole Size	0.15mm	Min Hole Size Tolerance	±0.05mm
Board Warp	≤ 1°	Min Outer Dimension Tolerance	±0.1mm
Solder Mask	Green, Yellow, Red, Black, Blue, White
Surface Finish	HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP
Board Material	FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic
Acceptable file	Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD
CAM software	Genesis, CAM350

Sunthone is a one-stop PCB & PCBA solutions provider, offers PCB manufacturing, PCB assembly, components sourcing, stencils and PCBA testing services, and helps to simplify your job, improve your efficency and focus on your strength.

Firstly established as a PCB factory, more and more of our existing PCB customers ask us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' request and market developing trends, Sunthone develops into a one-stop PCB & PCBA solutions provider with all related services.

Sunthone has ISO 9001 and UL certificates, so all the products delivered from Sunthone are quality guaranteed with ISO and UL standards. Under such quality guarantees, its products are widely applied in many industrials, such as Industrial Control, Security System, LED & lightning, Medical Facilities, Power Supply, Computers and Communications. The UL certificate of power supply thick copper PCBs is available, too.

Flexibility is another strength of Sunthone. It provides various services at flexible quantities from prototype to mass production in a flexible way, to meet different requirements from clients.

Sunthone is always having an open mind and listening ears to learn your ideas, willing to work with you on a mutual beneficial basis to achieve bilateral success.
