| Prod Model: |
PCB877 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Layer: |
2 |
| Copper Thickness: |
1oz |
| Board Thickness: |
1.6mm |
| Solder Mask Colour: |
Black |
| Silk Screen Colour: |
White |
| CTI Rating: |
175 |
| Surface Finish: |
HASL |
| Min Hole: |
0.25mm |
| Min Trace Width/Space: |
0.71/0.71mm |
| OEM: |
Yes |
| Structure: |
Multilayer Rigid PCB |
| Material: |
Epoxide Woven Glass Fabric Laminate |
| Production Process: |
Semi-Additive Process |
Product Description
Welcome to Sunthone

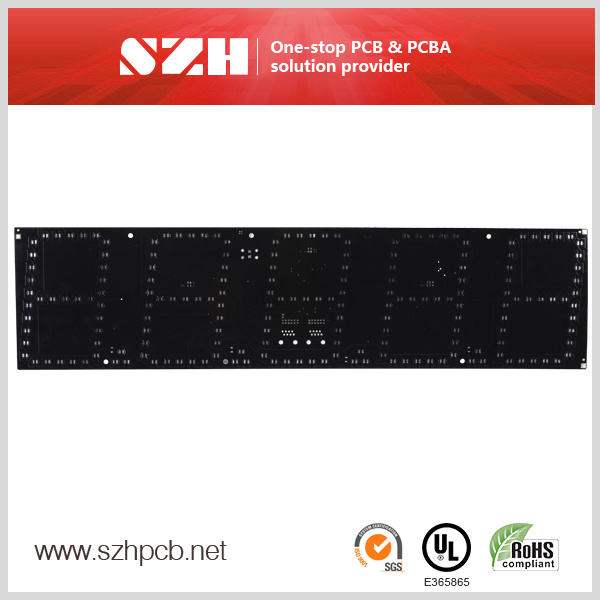

Quality High Power LED Traffic Light PCB manufacturer.
Sunthone is a one-stop PCB & PCBA solutions provider, offers PCB manufacturing, PCB assembly, components sourcing, stencils and PCBA testing services. Sunthone aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry.
If you are looking for prototype PCB manufacturing & PCB assembly of high quality, Sunthone would be you best choice, because our team of experts will be there for you each step of the way.
PCB/PCBA assembly service
| PCB capability and services: |
| 1. Single-sided, double side & multi-layer PCB with competitive price, good quality and excellent service. |
| 2. FR-4, FR-4 High TG, Aluminum base material, etc. |
| 3. HAL, HAL lead free, Immersion Gold, OSP surface treatment. |
| 4. Quantities range from sample to mass order< |
| 5. 100% E-Test |
| SMT (Surface mounting technology), COB, DIP. |
| 1. Material Sourcing Service |
| 2. SMT assembly and Through hole components insertion |
| 3. IC pre-programming / Burning on-line |
| 4. Function testing as requested |
| 5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc) |
| 6.OEM/ODM also welcomed |
Our Advantages :
1) High-end and Various kinds of PCBA service offered;
2) Speedy, Flexible and one-stop service in PCBA;
3) Assembly and Purchasing service offered, all components are promised to be purchased 100% from Original factories or their pointed agents;
4) Transparent quotation,cost and benefit are detailedly opened to customer;
5) With professional Engineers and Long-term successful experience in cooperating with customers inland and overseas, all new projects can be developed faster and better than expected;
6) With USA or Japan imported tin cream and tin bar, and 100% AOI testing during production, all PCBAs we made are more reliable.
7) ISO and UL certificate.
Technical Capability & Support
| Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm |
| Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm |
| Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm |
| Min Trace | 0.1mm | Min Annular Ring | 0.1mm |
| Min Space | 0.1mm | Min Hole Location Tolerance | ±0.075mm |
| Min Hole Size | 0.2mm | Min Hole Size Tolerance | ±0.05mm |
| Board Warp | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm |
| Solder Mask | Green, Yellow, Red, Black, Blue, White |
| Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP |
| Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic |
| Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD |
| CAM software | Genesis, CAM350 |
What we need:
* Gerber files of the bare PCB
* Bill of materials to include: Manufacturer's part number, type of part, type of packaging, component locations listed by reference designators and quantity
* Dimensional specifications for non-standard components
* Assembly drawing, including any change notices
* Final test procedures (if available)
Delivery Time for PCB Board:1) PCB production time: sample: 3-4 days / mass production: within 7 days 2) Component purchase: 2 days if all components is available in our domestic market. 3) PCB Assembly: samples: whthin 2 days / mass production: within 5 days Project name: Quality High Power LED Traffic Light PCB.
We sincerely hope to establish longtime and friendly business relationship with you. Please kindly feel free to contact us for any questions or RFQs!
Sunthone is a one-stop PCB & PCBA solutions provider, offers PCB manufacturing, PCB assembly, components sourcing, stencils and PCBA testing services, and helps to simplify your job, improve your efficency and focus on your strength.
Firstly established as a PCB factory, more and more of our existing PCB customers ask us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' request and market developing trends, Sunthone develops into a one-stop PCB & PCBA solutions provider with all related services.

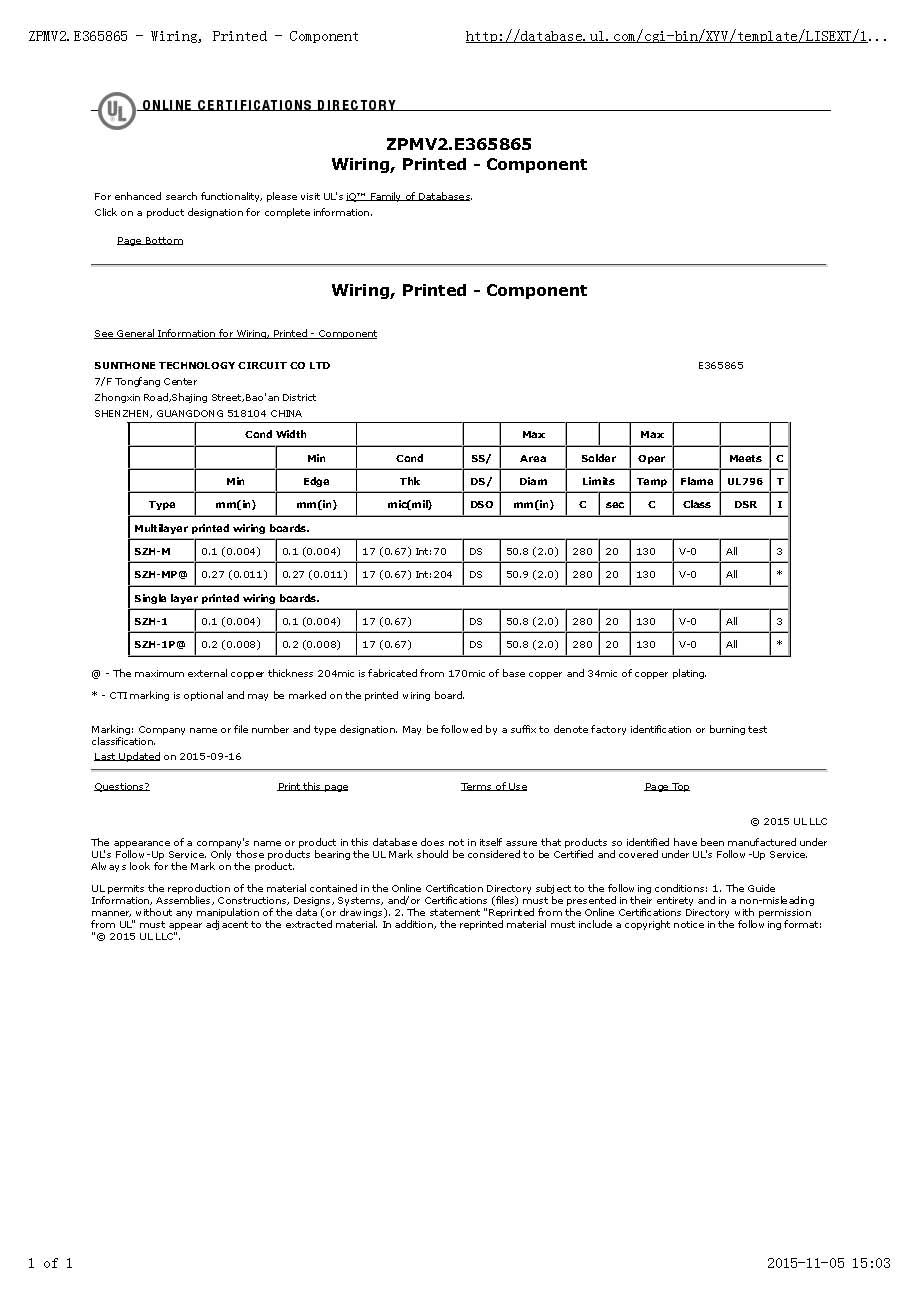

Sunthone has ISO 9001 and UL certificates, so all the products delivered from Sunthone are quality guaranteed with ISO and UL standards. Under such quality guarantees, its products are widely applied in many industrials, such as Industrial Control, Security System, LED & lightning, Medical Facilities, Power Supply, Computers and Communications. The UL certificate of power supply thick copper PCBs is available, too.
Flexibility is another strength of Sunthone. It provides various services at flexible quantities from prototype to mass production in a flexible way, to meet different requirements from clients.
Sunthone is always having an open mind and listening ears to learn your ideas, willing to work with you on a mutual beneficial basis to achieve bilateral success.
