| Prod Model: |
PE PVC Power cable |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
UL |
| Brand: |
Jinshui |
Product Description
Product standard
XLPE insulated Flame retardant and Fire resistant Power cables are fixed laid in the circuit with frequency 50Hz and voltage up to 3.6/6KV.
We can produce Flame retardant and Fire resistant power cables according to standard GB/T19666-2002, Grade A,B,C or D.
Rated voltage 0.6/1KV and 3.6/6KV.
Conductor of cables can be Copper and Aluminum.

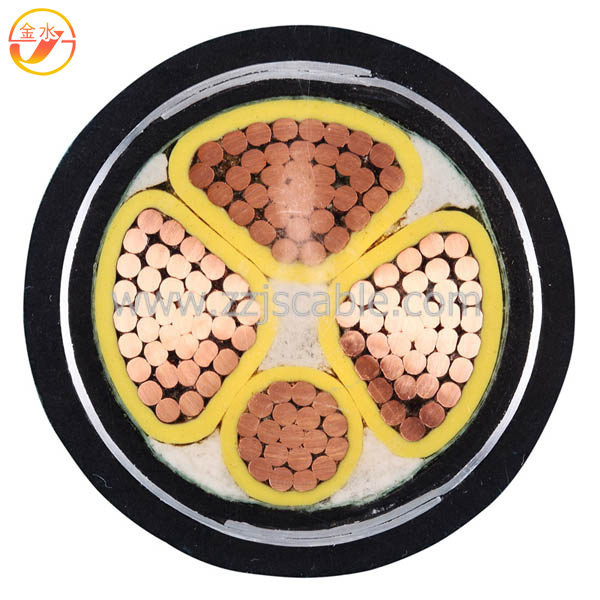

The cables can be single core, two cores ,three cores, four cores(include three main cores and one neutral), five cores(include three main cores and one neutral and one earthing core; Four main cores and one neutral).The cables can be with armor and without armor.
We can produce cables with PVC outer sheath., flame retardant PVC outer sheath or with fire resistant insulation. The cables are produced according to GB/T12706(eqv IEC 60502) and GB/T18380-2001(eqv IEC60332) or GB/T19216(eqv IEC60331) and or the BS, DIN or other international standards. And we also design and produce cables according to the requirement of our clients.
Application characteristics
1.Long term working temperature is up to 90 degree C.
2.The highest conductor temperature is not more than 250 degree C.(lasting time not over 5 seconds.)
3.Laying temperature not less than 0 degree C and the drop height is out of consideration.
4.The cable with chemical stability, anti acid, anti alkali, and oil, anti organic solvent, not easy to be burning.
5.Easy for installation, easy beading and light.
6.Bending ratio as follow:
Item | Single core | Three cores |
Non armor | With armor | Non armor | With armor |
Min. bending radius during installation | 20D | 15D | 15D | 12D |
Near joint box or cable terminal, bending with care and use template. | 15D | 12D | 12D | 10D |
Note: D is the diameter of cable. |
Cable type, name and application
Type | Description | Application |
Cu | Al |
(ZR)YJV | (ZR)YJLV | XLPE insulated and PVC sheathed power cable | Can be laid in indoor, tunnels, cable canal, pipelines and loose soil. Cable should not hear a certain breaking force. |
(ZR)YJY | (ZR)YJLY | XLPE insulated and PE sheathed power cable |
(ZR)YJV22 | (ZR)YJLV22 | Steel tape armored, XLPE insulated and PVC sheathed power cable | Laid underground, cable can bear mechanic force, but should not bear large breading force. |
(ZR)YJV23 | (ZR)YJLV23 | Steel tape armored, XLPE insulated and PE sheathed power cable |
(ZR)YJV32 | (ZR)YJLV32 | Steel wire armored, XLPE insulated and PVC sheathed power cable | Laid in water or soil with drop height, the cable can bear mechanic force and large breaking force. |
(ZR)YJV33 | (ZR)YJLV33 | Steel wire armored, XLPE insulated and PE sheathed power cable |
(ZR)YJV42 | (ZR)YJLV42 | Steel wire armored, XLPE insulated and PVC sheathed power cable | Can be laid in water or soil with drop height, the cable can bear larger breaking force. |
(ZR)YJV43 | (ZR)YJLV43 | Steel wire armored, XLPE insulated and PE power cable |
Established in 1984, Henan Jinshui Cable Group Co., Ltd. specializes in design and manufacture of various kinds of wires and cables. Our company's headquarters is located in Zhengzhou City of Henan Province, a famous city with convenient transportation in China.
Our company is in charge of 23 domestic sale companies and one trade company, Zhengzhou Jin Hang High-Tech Co., Ltd., mainly responsible for overseas market. There are 638 staff members in the factory, including 18 experienced engineers, 52 lab assistants and 568 workers. The capital asset reached USD10, 507, 000. We have various advance product lines and equipment, including 180 sets for producing use and 40 sets for testing and measurement use. Our product can perfectly meet requests of different standards, for example GB, IEC, BS and ASTM. We also have some ability to satisfy special need of customers. The annual product capacity of cables and wires of our factory is more than 10, 000, 000 kilometers.
As one of the leading manufacturers of cable industry in Henan Province, we obtained certificate of ISO9001 in 2003. All cables of colliery have gotten the certificate of safety for colliery. Our fire retardant cables are approved with the certification of proof products, and most of them met the standards of China Compulsory Certification (CCC). Moreover, we have been already licensed to enter the "Supplier of the China Government Procurement" by the government.
For years, we are keeping providing products with high quality and good service. Our cables and wires are widely used in the construction of buildings airports, power transportation, urban and rural power network reformation and other main projects. Both of products and the factory are greatly commended by customers. Also, we really highly value the overseas market. Our factory has the qualification to export independently which is awarded by Chinese government. The main products of our company have been exported to Africa, Australia, America, Italy, Singapore and other Asian countries. We insisted that pay adequate attention to every customer's request. We insist on our principle of "Good Quality Results Trust and Honesty Makes Success". We sincerely welcome you to touch with us and visit us.
