| Prod Model: |
SYWV046 |
| Color: |
Black,Grey,White,Blue,Yellow |
| Sizes: |
Customized |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Gemt |
Product Description

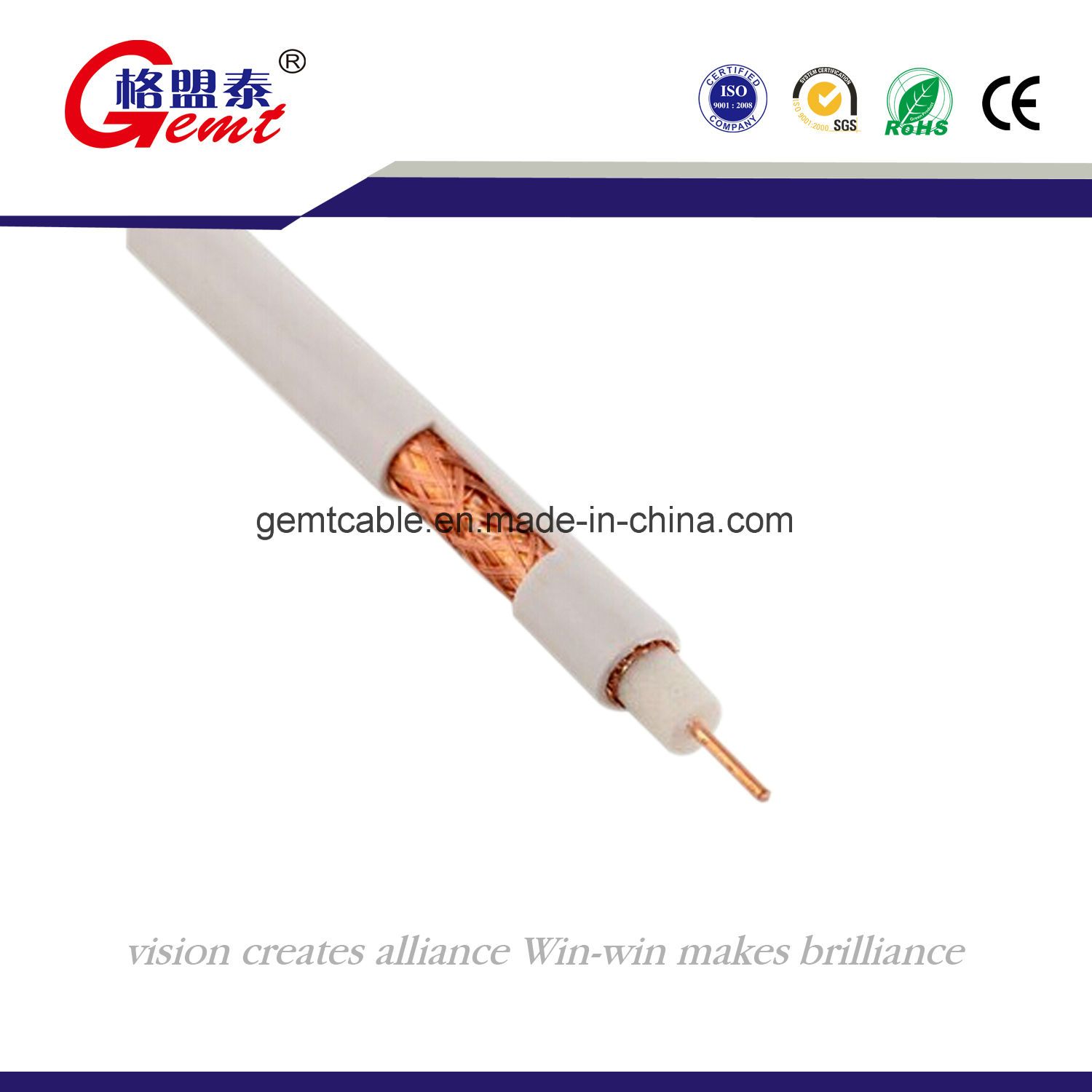

Quality SYWV-Single Coaxial Cable 1. Product Description:| SYWV-single net coaxial cable |
| Class: | Coaxial cable |
| Specification: | 0 |
| Content: | |
| |
SYWV-TV Antenna coaxial cableSingle Network
SYWVYtype physically foamed
PE insulated community antenna television system cable
usefor community antenna television system(including fiber distributed data interface coaxial commix net HFC),transmit data,voice,and image signal.
Operation characteristic:small attenuation,good structure equlity,Anti-jamming excellent performance,Tide ability,Small temperature coefficient.
stardardGY/T135198,SJ/T111381997
structure size
| Project | inner conductor | insulated | out conductor | sheathed | | Note | single anaerobic round copper wire | physically foamed PE | Aluminum-plastic composite membrane copper or aluminum and tin-weaving, Braided line nominal diameter 0.12-0.18
Braided perspective ≤ 45 filling coefficient ≥ 42 | PVC PE | Materials | | Item | Dia | Dia | max Dia | Dia | PVC PE | | SYWV-75-52P SYWY-75-52P | 1.00±0.02 | 4.8±0.20 | 5.80 | 7.20±0.30 | PVC PE | | SYWV-75-54P SYWY-75-54P | 1.00±0.02 | 4.7±0.10 | 6.25 | 7.50±0.20 | PVC PE | | SYWV-75-72P SYWY-75-72P | 1.66±0.02 | 7.25±0.25 | 8.3 | 10.30±0.30 | PVC PE | | SYWV-75-74P SYWY-75-74P | 1.66±0.02 | 7.10±0.10 | 9.10 | 10.60±0.30 | PVC PE | | SYWV-75-92P SYWY-75-92P | 2.15±0.03 | 9.00±0.25 | 10.30 | 12.30±0.30 | PVC PE | | SYWV-75-94P SYWY-75-94P | 2.15±0.03 | 8.90±0.10 | 10.90 | 12.60±0.30 | PVC PE | | SYWV-75-122P SYWY-75-122P | 2.77±0.04 | 11.50±0.30 | 12.50 | 14.80±0.30 | PVC PE | | SYWLY-75-7 | 1.65±0.01 | 7.2±0.10 | 8.3 28×0.045 Double-sided aluminum foil | 10.3±0.20 | PE | | SYWLY-75-9 | 2.15±0.02 | 9.0±0.2 | 10.2 34×0.25 Aluminium tape | 12.3±0.2 | PE | | SYWLY-75-12 | 2.77±0.02 | 11.5±0.2 | 12.8 43×0.25 Aluminium tape | 15.1±0.20 | PE |
|
2. Technical Sheet:Application: Used for general purpose, as building wire for power, lighting and control wire. They can be fixed into truck and conduit.
Standard: IEC227/BS6004
Structure: Solid Pure copper or CCA
Rated Voltage: 300/500V, 450/750V
Insulator: Polyvinyl Chloride (PVC) Rated 70oC
Color: White, Black, Yellow, Red, Blue, Yellow/Green, etc

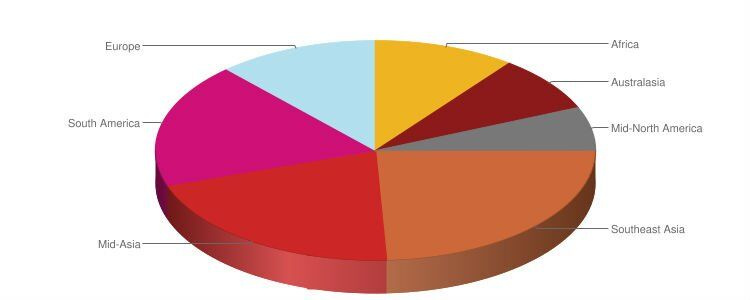

3. To Which Market:
4. Why Choose Us(GEMT): G--Guaranteed quality
E--Effective service
M--Mutual benefit
T--Top technique
GEMT Cable, Friend Reliable
5. FAQ:
Q: Can I have a sample?
A: Yes, we welcome sample order to test and check quality.
Mixed samples are acceptable.
Q: How long is the lead time?
A: Sample needs 1-2 days; mass production needs 15-30 days.
Q: Do you have the MOQ limit?
A: Our MOQ is 100-10000meters, depending on the products;
Sea Port: FOB Shenzhen.
Q: Do you provide OEM or ODM services?
A: Yes, we do.
Q: Do you offer guarantee for the products?
A: Yes, we offer five years guarantee for the product
6. Company Information:
company:
factory:
trade show:

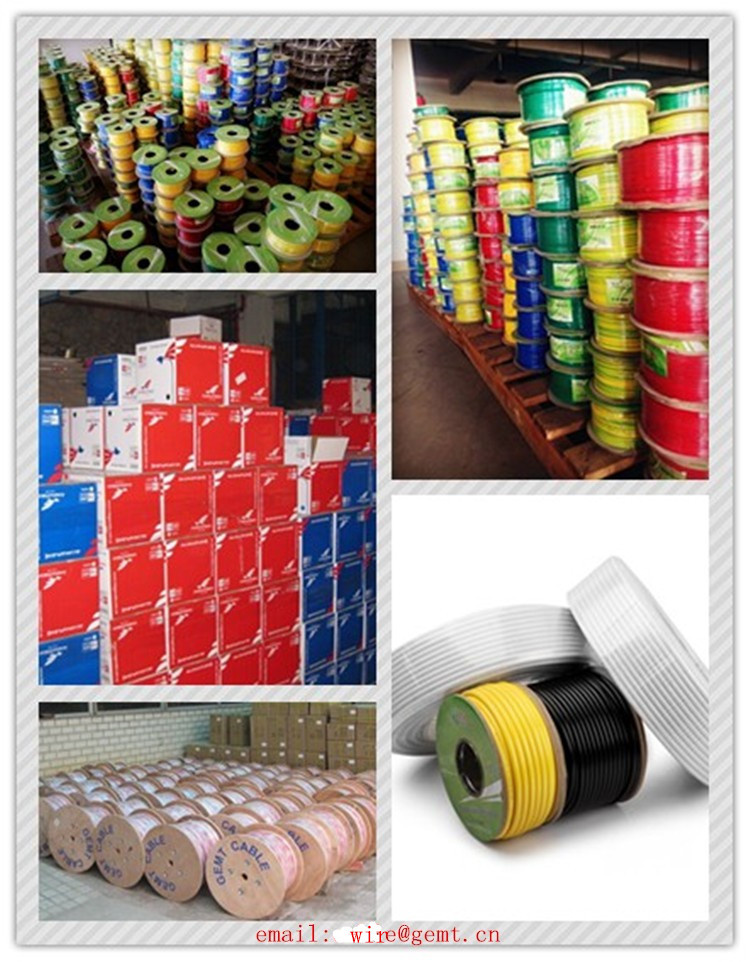

packing & shipping:
certification:
WARMLY WELCOME TO VISIT TO OUR FACTORY AND SHOWROOM , AND KNOW MORE ABOUT US ~~~~
PLS FEEL FREE TO
CONTACT ME : VERA ZHUANG
TEL:+86-13415529380
Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.
The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.
Our tenet is "Specialized quality, Sincere service",
From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise
Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
