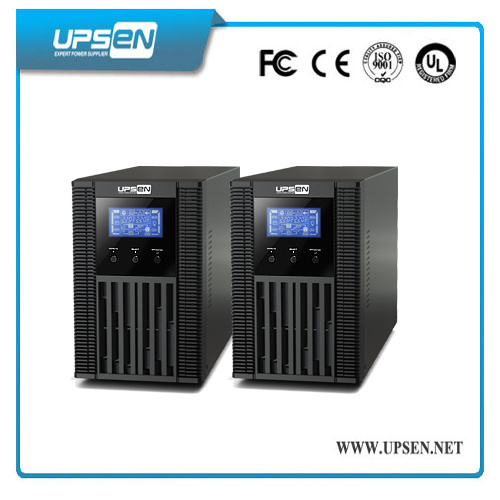

Quality UPS with Wide Input Voltage and Short Circuit Protection

Prod Model:	Green star series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Factor:	>= 0.99 @ 100% Load
AC Voltage Regulation:	± 1%
Nominal Voltage:	208/220/230/240VAC
Current Crest Ratio:	3:1
Phase:	Single Phase
Type:	On-line
Protection:	Short Circuit
Standby Time:	Both
Brand:	Upsen

Product Description

Quality UPS with Wide input voltage and Short Circuit Protection

UPS Overview

1: 6Kva & 10Kva UPS with True Online double conversion tech
2: UPS Power with Pure Sine Wave Output and Large LCD Display
3: UPS System with 1 / 1 Phase 110 / 115 / 120Vac or 220 / 230 / 240Vac
4: UPS with N + X Parallel Function
5: UPS with RS232 , RJ11, RJ45, USB Ports

Key Features
1. Wide range of input voltage
The UPS can offer normal and stable service voltage under its input voltage range. When the input voltage is out of its range the machine will switch to battery mode automatically to keep the output power in order to protect the equipment, such as computers, ensure they will not be damaged by the over high or over low voltage, users can continue the operation of equipment for a while or save the data on computers while the power network is abnormal.

2. Wide range of AVR(Automatic voltage regulation)
In the product's input voltage range and under 3 steps of intelligent AVR function, it can provide a stable output voltage.

3. Automatic self detection when UPS on(LED).
Before the UPS on, red, yellow, blue LED will light up two times by cycle turns, after self detection UPS switch to AC mode/battery mode or working mode.

4. Silence function
In the "battery mode", shortly press the switch to turn off the buzzer. But the battery is about to run out or the load is too heavy, the buzzer sound cannot be muted.

5. Overload protection
In the battery mode, output voltage turn down correspondingly when it is overload, after the capacity of load is lower than the rated power then output voltage will back to rated value, it ensures the UPS will not shut down by abrupt overload which caused by surging current during the computer is working and other equipment is added.

6. Short circuit protection
When the mis-operation caused the load short circuit or computer failure (such as power tube breakdown of switch) cause short circuit, the UPS will shutdown automatically for protection.

7. The low current switch
This UPS adopts low current switch to extend the service life which is longer than conventional battery and high current switch in AC current path.

8. Automatic charging
There are two charging mode, charging time is faster than ordinary charging mode, higher efficiency, and greatly prolonging the service life of the battery.

9. With a bypass output
Independent bypass output socket for external printers or scanners of computer peripherals, with surge protection of the load.


Technical Specification


Technical Specification
GREEN STAR 6K/10K ONLINE UPS SPECIFICATION
MODEL		G6K (L)	G10K (L)
PHASE		1 phase in / 1 phase out
CAPACITY		6000 VA / 4800 W	10000 VA / 8000 W
INPUT
Nominal Voltage		208/220/230/240VAC
Voltage Range	Low Line Loss	110 VAC ± 3% at 50% Load 176 VAC ± 3% at 100% Load
	Low Line Comeback	120 VAC ± 3% at 50% Load 186 VAC ± 3% at 100% Load
	High Line Loss	300 VAC ± 3%
	High Line Comeback	290 VAC ± 3%
Frequency Range		46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz
Power Factor		>= 0.99  @ 100% load
OUTPUT
Nominal Voltage		208/220/230/240VAC
AC Voltage Regulation		± 1%
Frequency Range (Synchronized Range)		46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz
Frequency Range (Batt. Mode)		50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz
Current Crest Ratio		3:1 (max.)
Harmonic Distortion		<= 3 % THD (Linear Load)  <= 6 % THD (Non-linear Load)
Transfer Time	Bypass to Inverter (Line mode)	Zero
	Inverter to Bypass (Line mode)	Zero
Waveform (Batt. Mode)		Pure Sinewave
EFFICIENCY
Line Mode		89%	90%
Battery Mode		88%	89%
BATTERY
Standard Model	Battery Type	12 V / 7 AH	12 V / 9 AH
	Numbers	16	16
	Typical Recharge Time	9 hours recover to 90% capacity
	Charging Current	Default:1.0 A ±  10%,           Max.:2.0A ±  10%	Default:1.0 A ±  10%,          Max.:2.0A ±  10%
	Float Charging Voltage	218.4 VDC ±  1%
Long-run Model	Battery Type	Depending on applications
	Numbers	16-20** (adjustable)
	Charging Current	Default:4.0 A ±  10%,  Max.:6.0A ±  10%	Default:4.0 A ±  10%,           Max.:6.0A ±  10%
	Float Charging Voltage	273 VDC ±  1% (based on 20 pcs batteries)
INDICATORS
LCD Panel		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode		Sounding every 4 seconds
Overload		Sounding twice every second
Fault		Continuously sounding
PHYSICAL
Standard Model	Dimension, D X W X H (mm)	369 x 190 x 688	442 x 190 x 688
	Net Weight (kgs)	60	75
Long-run Model	Dimension, D X W X H (mm)	369 x 190 x 318	442 x 190 x 318
	Net Weight (kgs)	21	23
ENVIRONMENT
Operation Humidity		0-95 % RH @ 0- 40°C (non-condensing)
Noise Level		Less than 55dBA @ 1 Meter	Less than 58dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB		Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP		Power management from SNMP manager and web browser
*Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208VAC.
*If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated
one percent per 100m.
*Product specifications are subject to change without further notice

* Long-run model is only available in 200/208/220/230/240VAC systems.

UPS Application

Home, Office, Servers, Data-center, critical network devices, Sensitive electronic equipment, Telecom, Bank system, ATM, Computers, Railway, Weak electricity system integration, security system, CCTV, Army, Programmable Logic Controller (PLC), Direct Digital Controller, Building Automation System (BAS) etc.
