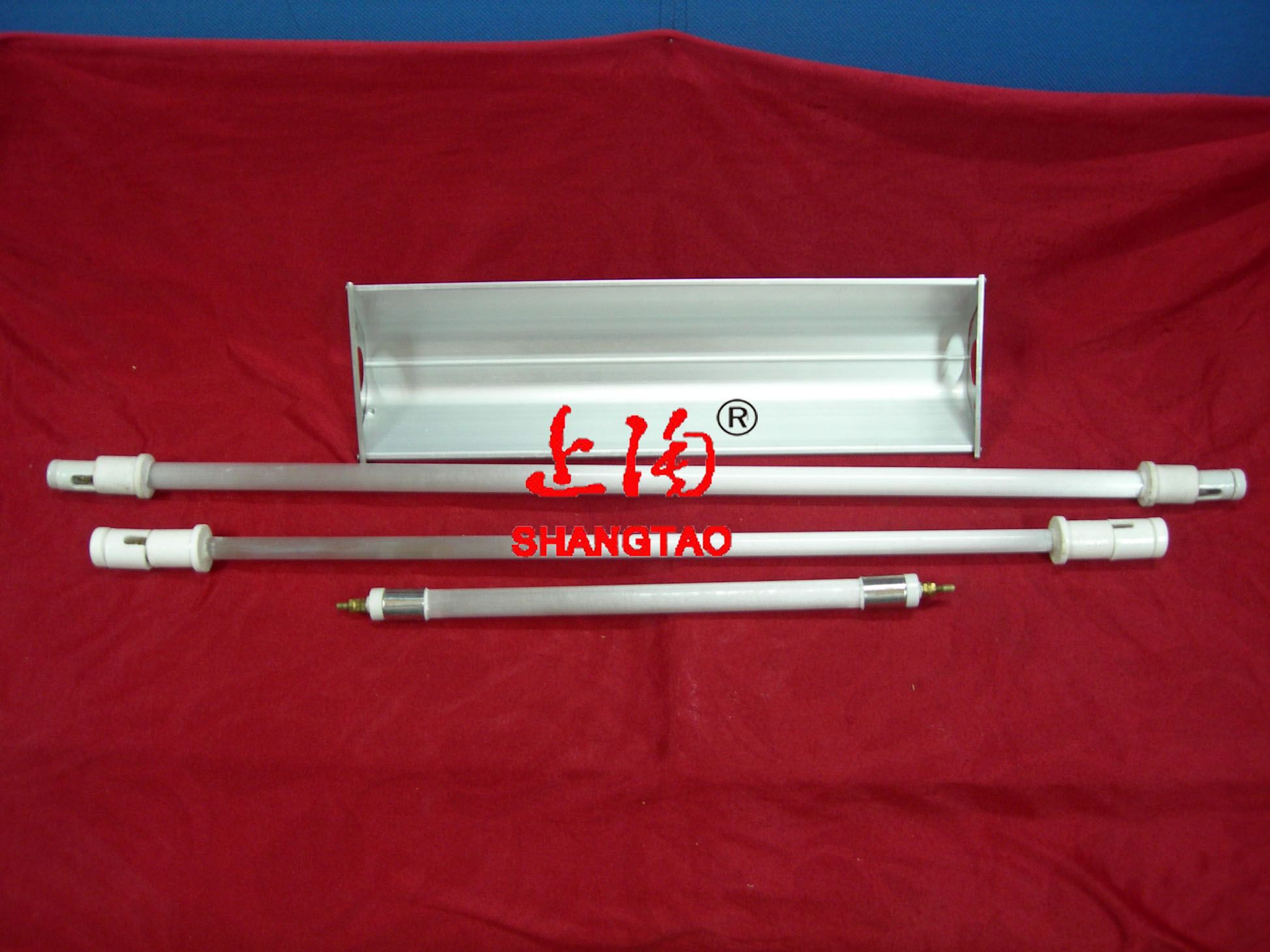

Quartz Far Infrared Radiation Heating Element

Prod Model:	GT-022
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	White
Wave Length:	Short Wave, Medium Wave, or Fast Response Medium W
Life Span:	5000-10000 Hours
Power:	300W~5000W
Application:	Heater
Structure Material:	Ceramic
Heat Transfer Surface:	Tubular Heat Exchanger
Principle:	Mixing Heat Exchanger

Product Description

1. Principles of energy saving technology
Quartz far infrared radiation heating element applies a special milk quartz glass tube that is machininged by special technics, with resistance composite materials as the heater. Because Milk quartz glass can absorb almost all of the visible and near infrared light from radiation of the heating wire, and make it into the far-infrared radiation. Milky quartz is a heating element of far-infrared energy, with high conversion efficiency, It has excellent features for far-infrared radiation. Energized, the quartz tube blocks and absorbs 95% of near infrared and visible light sent up from heat alloy wire, which make the temperature in the tube rise, producing pure silicon-oxygen bond of molecular vibration, radiation far from the red line. 95% of visible light, near-infrared light can be transformed into far-infrared radiation, far infrared ray with the wavelength>2.5 micron is named as far infrared far infrared. Far-infrared heating refers to the use of 2.5 to 25 microns wavelength radiation heating technology.

2. Property and Purpose
Quartz heating elements do not apply paint, stable emissivity, no deformation in high temperature, no harmful radiation, no environmental pollution, high temperature resistance, high corrosion resistance, chemical stability, small thermal inertia, speedy thermal response and high thermal conversion efficiency. The heating temperature can be choosen and no regression for long-term use of radiation performance, reasonable structure, easy to use. Quartz heating element is the only selective radiation far-infrared heating elements. It can be widely used in electrical and mechanical, chemical, electronic, textile, printing and dyeing, plastics, printing, food, food processing and medical health, heating and drying for leather, curing dehydration and all kinds of heating equipment of drying tunnel, drying room, oven.

3. Main technical parameters:
Rated voltage: 380V, 220V, 110V 36-24V (according to requirement)
Length: 300 - 2500mm, can be customized.
Component matching: 200w - 5000W
Outside diameter: 10mm-30mm (according to requirement). Common specifications 18 and 20;
Thermal response speed: 3 - 5 minutes
Surface temperature: Low temperature of 380 ~ 460 C, middle temperature of 500 to 580 c
According to user requirements, can be increased to 700 to 750 c, or reduced to 100 ~ 300 c
Spectral range: 2.5 - 6 μ M (with a higher radiation intensity)
The spectral emission coefficient: 0.92 (wavelength is 48um)
Technology: Quartz heating tube is produced based on resistance wire (made of high temperature iron-chromium alloy wire and nickel-chromium alloy wire Cr20Ni80) as heating element, high-quality quartz glass tube as insulator and thermal conductor, a nickel-plated sleeve fixed to terminal

4. Installation Note:
(1)A horizontal installation, the inclination is not greater than 30 degrees.
(2) when used, matched with aluminum reflector or stainless steel reflector, flat or parabolic reflector. But parabolic reflector is the best: To improve the high utilization of radiation.
(3) Avoid excessive vibration and shaking.
(4)The optimal control of distance between the heating element and the object to be heated is 100 - 400 mm.
(5) Quartz heating elements are brittle materials, when installation and use, should be aware of safety, according to the specific circumstances of the object to be heated, to take the necessary protective measures in order to avoid mechanical damage.
(6) Measured lifetime of single tube heating element is 15000 hours, life of micky quartz tube up to ten years. In order to improve the radiation efficiency, should regularly clean the pipe surface dirt and dust.

Diameter of tube(mm)	Total length in mm	Power (W)	Voltage (V)
18-20	200mm	200W	220V
18-20	300mm	300W	220V
18-20	400mm	400W	220V
18-20	500mm	500W	220V
18-20	600mm	600W	220V
18-20	700mm	700W	220V
18-20	800mm	800W	220V
18-20	900mm	900W	220V
18-20	1000mm	1000W	220V
18-20	1200mm	1200W	220V
18-20	1500mm	1500W	220V
18-20	1600mm	1600W	220V
18-20	2000mm	2000W	220V
