Queenswing 20A 720W Voltage Transformer DC 12V to DC 36V Converter

Name: Queenswing 20A 720W Voltage Transformer DC 12V to DC 36V Converter
Brand: all-electronics-online.com
SKU: 721243132
Availability: InStock
Rating: 4.6 (59 reviews)

Price:	US $ 78-81/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WG-12S3620
Output Power:	720W
Input Voltage:	12V
Type:	DC12V to DC36V
Output DC Voltage:	36V
Rated Current:	20A
Efficiency:	91-95%
Modulation System:	PWM
Levels Of Protection:	IP68
Working Temperature:	-30 ~ +80
Key Word:	DC to DC Converter
Application:	Power
Phase:	Single
Coil:	Core-type Transformer
Winding Type:	Auto-transformer
Cooling Method:	Natural Cooling

Product Description

QUEENSWING 20A 720W Voltage Transformer DC 12V to DC 36V Converter

Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 10-16Vdc
4. Industry grade DC12V to DC36V step-up converter, high efficiency up to 96%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.

Application
Our this converter is widely used. Except for cars, this product also used for communication, military, medical equipment, monitoring system, wind energy photovoltaic system ect. It is a industrial-grade converter.

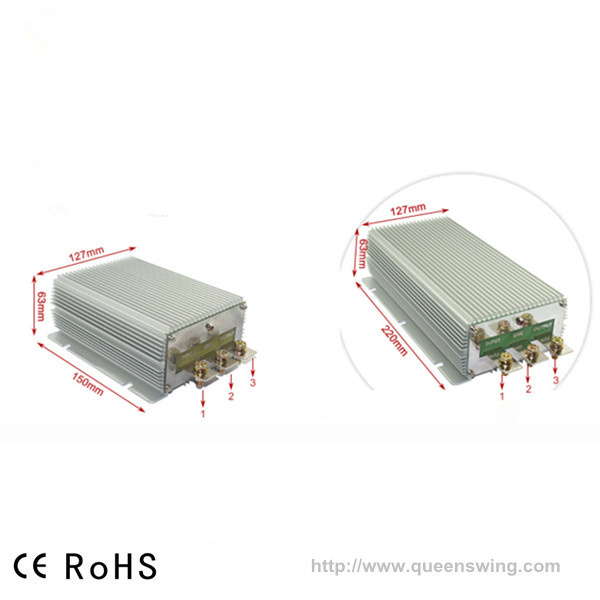

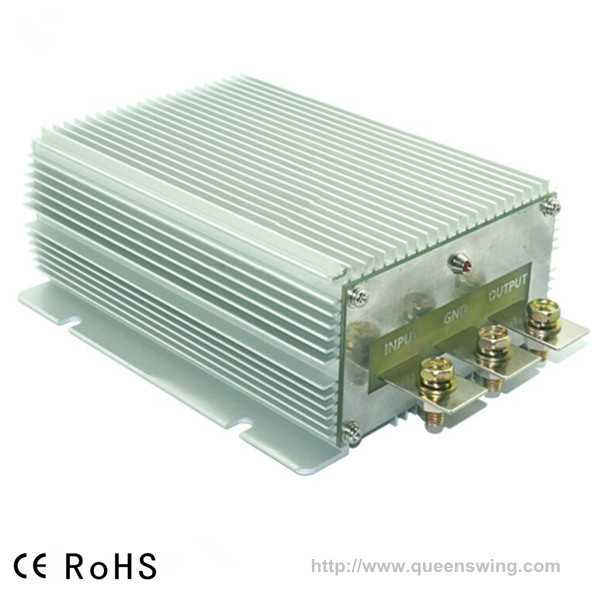

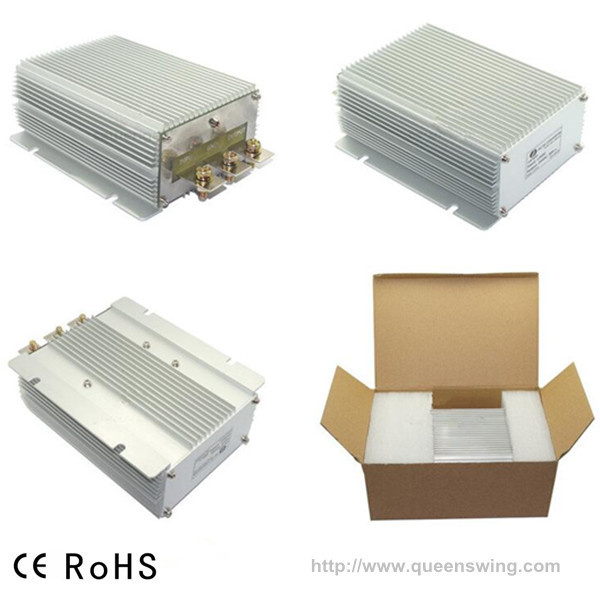

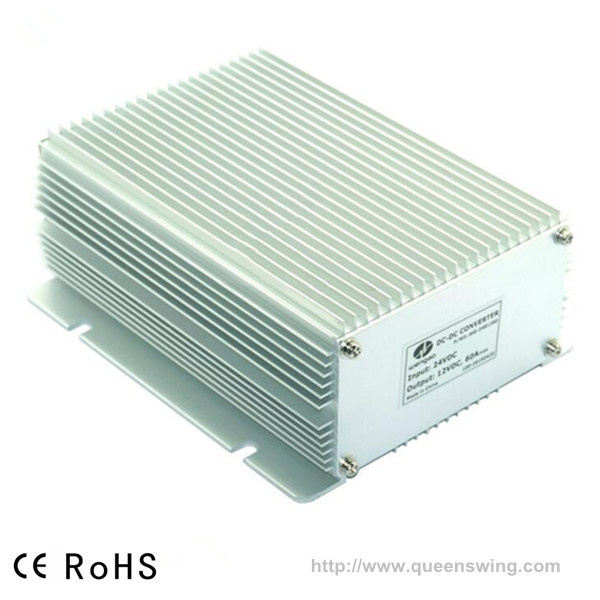

Product Pictures

Specification

Product Name	DC-DC Converter
Model No.	WG-12S3620
Input Voltage	12V DC
Input Voltage range	10-18V DC
conversion efficiency	>96%
Output Voltage	36V
Output current	20A
Output rated Power	720W
Output surge power	130%
voltage regulation	< 1%
load regulation	< 2%
No-load current	< 30mA
ripple wave	< 200mV
Working Temperature	-30ºC to +80ºC
grade of waterproof	IP68
overcurrent protection	YES
over voltage protection	YES
overheat protection	YES
short circuit protection	NO
Product Size	18012763mm
Packing Size	22015180mm
Net Weight	1.60kg
Gross Weight	1.70kg
Cooling	Die casting aluminum Natural Cooling

Payment Terms:
T/T, Western Union, Money Gram
Production arranged after receipt of payment.

Lead Time:
Sample order will be delivered within 7 working days.
Order quantity below 100PCS, delivery time is 7-15 working days.
Container order will be delivered within 15-30 working days.

Shipment:
Courier: FedEx, DHL, TNT, UPS, Aramex, EMS ect.
Forwarder: By sea / air or Customer designated
