Quick 12sq045 Mc4 Solar Connector

Name: Quick 12sq045 Mc4 Solar Connector
Brand: all-electronics-online.com
SKU: 715103712
Availability: InStock
Rating: 5 (26 reviews)

Price:	US $ 3.5-3.7/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FD
Name:	Quick 12sq045 Mc4 Solar Connector
Adapting Current:	10A
Rated Voltage:	1000V (TUV),600V(UL)
Contact Resistance:	< 0.5mΩ
Degree Of Protection:	IP67
Ambient Temperature Range:	-40ºC~ +85ºC
Flame Class:	UL94-V0
Pin Dimensions:	4mm
Color:	Black
Gender:	Male and Female
Application:	Solar Energy System

Product Description

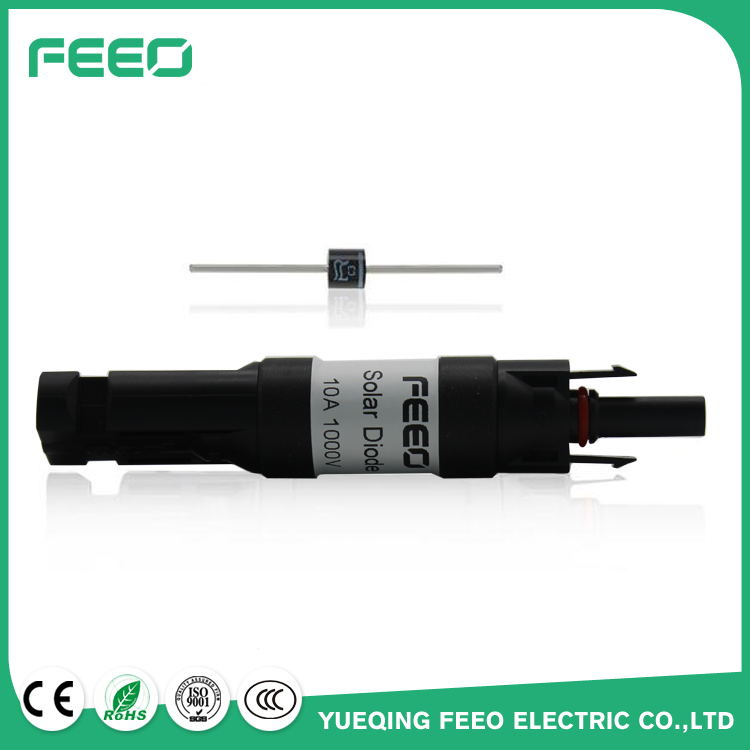

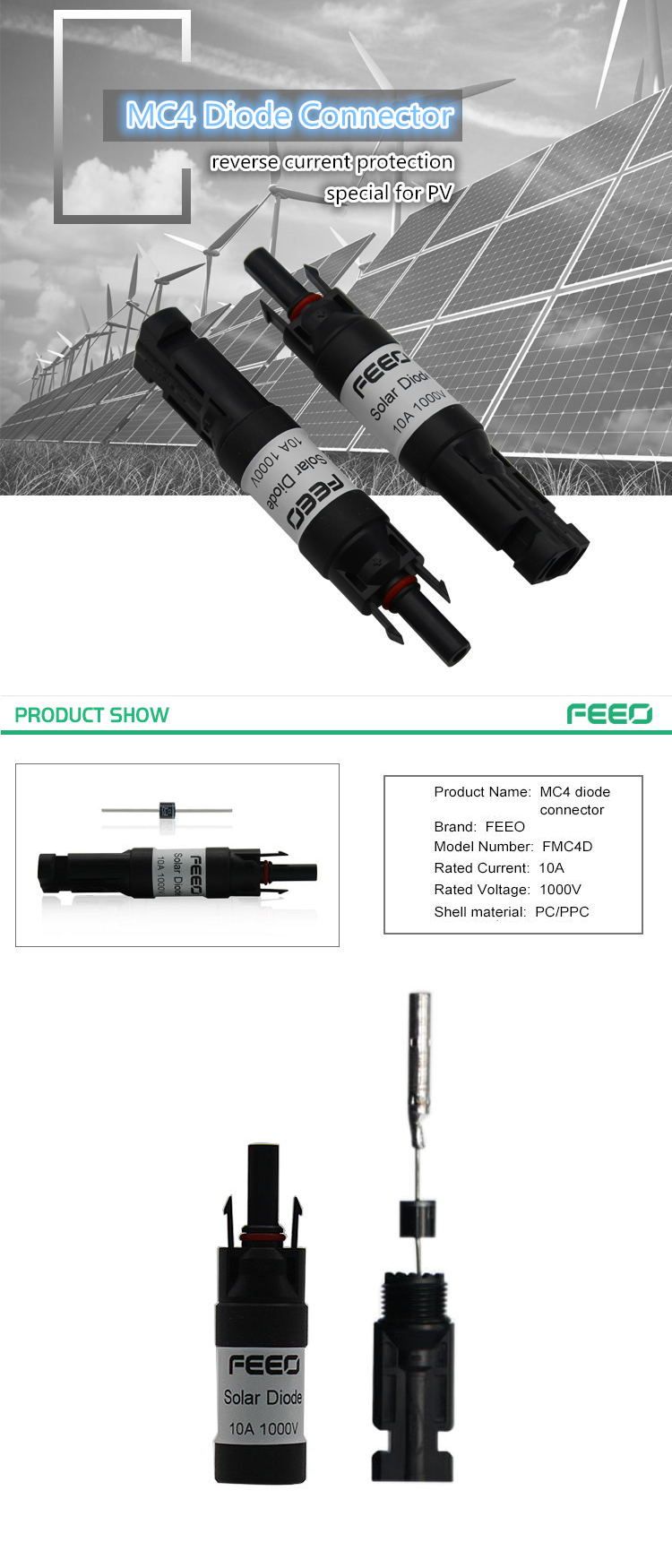

Quick 12sq045 Mc4 Solar Connector

Product Description
Mc4 Solar Connector Features:
1. The fuse/diode series connectors
2. Low power loss
3. Auto-lock equipment of male and female points enable connection more easy and reliable.
4. With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover
5. Popular figure suit most of field installation
6. Simple on-site processing
7. With convenient installation,strong commonality
Mc4 Solar Connector Parameters:

Item	MC4 connector diode
Insulation Material	PPO
Contact Material	Copper,Tin plated
Adapting Current	10A
Rated Voltage	1000V
Test Voltage	8KV
Contact Resistance	< 0.5mΩ
Degree of protection	IP67
Flame class	UL94-V0
Safety class	2
Ambient Temperature Range	-40ºC~ +85ºC
Pin Dimensions	Φ4mm

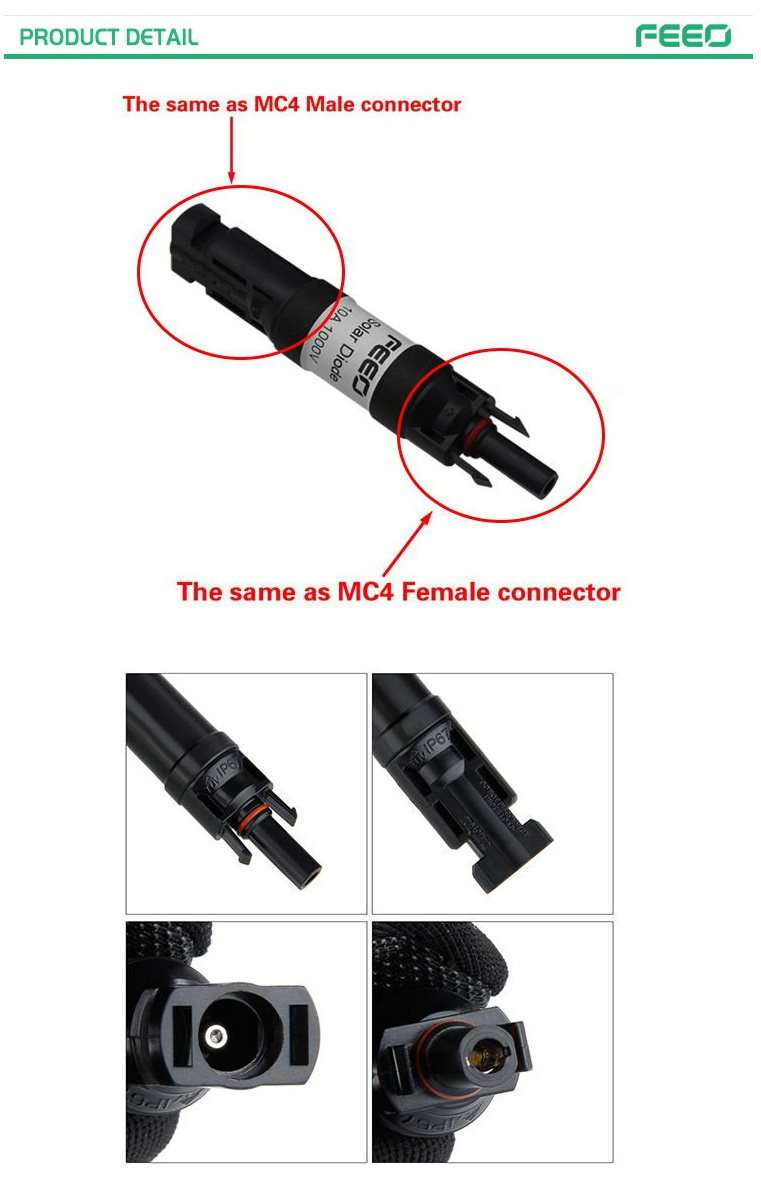

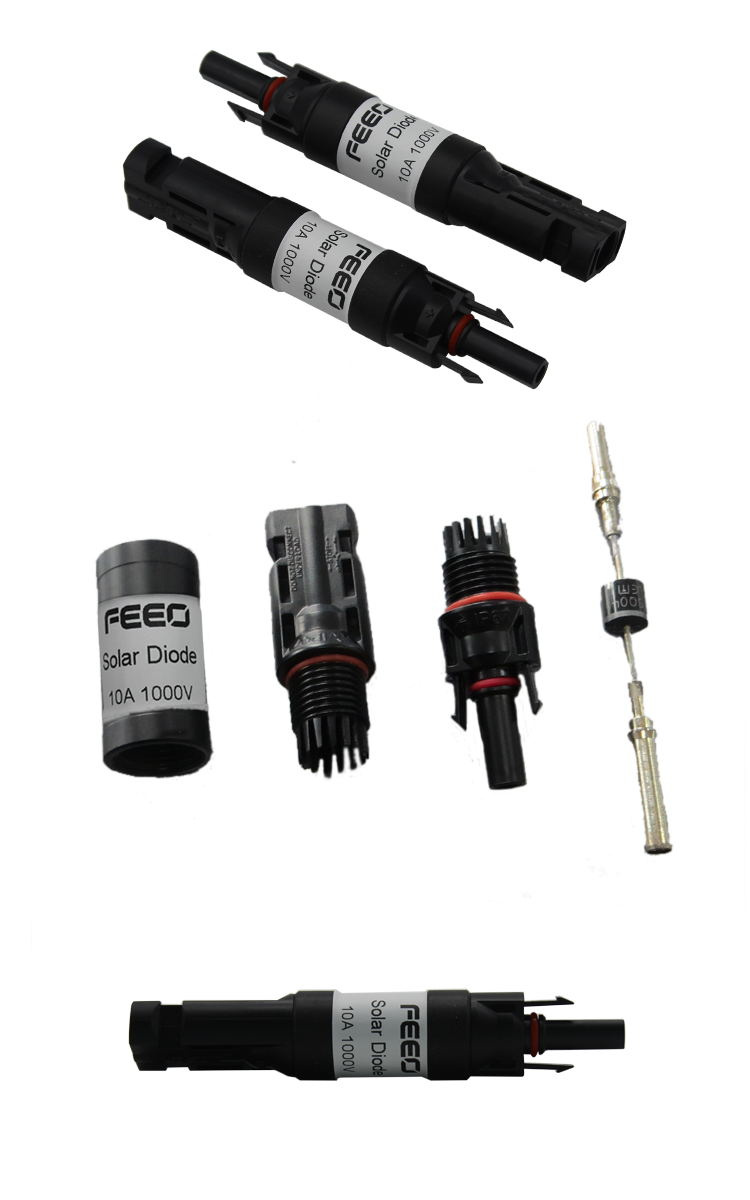

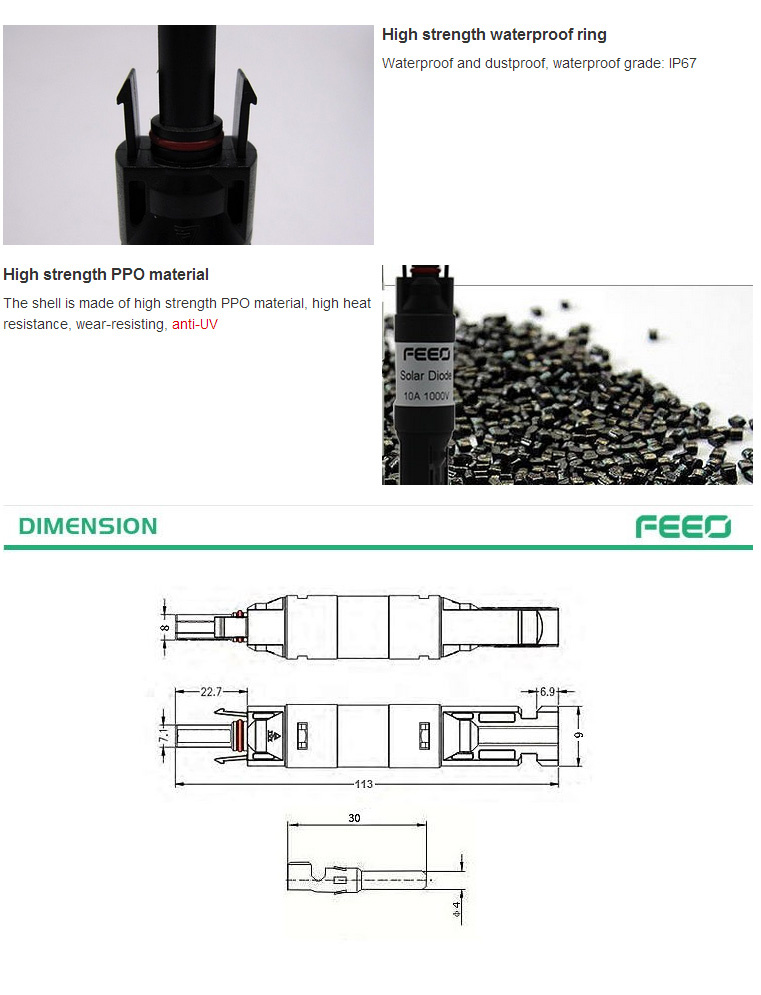

Detailed Images

Packaging & Shipping
Mc4 Solar Connector Package:
Standard export carton packing
Mc4 Solar Connector Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Mc4 Solar Connector Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
