Quick Printed Circuit Board with Low Price From PCB Manufacturing

Name: Quick Printed Circuit Board with Low Price From PCB Manufacturing
Brand: all-electronics-online.com
SKU: 833790105
Availability: InStock
Rating: 4.4 (125 reviews)

Price:	US $ 0.1-2/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-Quick Turn PCB
Board Thickness:	0.2mm to 6.0mm
Surface Finish:	HASL Lead Free, Enig,OSP, Immersion Gold, Tin,
Solder Mask Colour:	Green, White, Black, Blue, Yellow
Min Hole Size:	0.1mm
Min Track & Space:	0.002"
Max Board Size:	500 X 1200mm
Base Materials:	Fr4, High Tg, Cem1, Cem3, Rogers, Aluminum Base...
Carbon Ink:	Yes
Peelable Mask:	Yes
Copper Thickness:	1oz ~ 5oz
Structure:	Multilayer Rigid PCB
Material:	Polyester Glass Fiber Mat Laminate
Production Process:	Subtractive Process
Brand:	Shared

Product Description

Material	FR4, CEM1, CEM3, High Tg, Rogers, Al-base
Board Thickness	0.2mm, 0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm,
Copper Thickness	1 oz ~ 5oz
Surface Finish	HAL Lead free, ENIG, Immersion Tin, OSP
Solder mask Color	Green, White, Black, Blue, Yellow

Fast delivery time:

Layers	Prototype	Mass production
		(above 20 Square meters)
2 Layers	Quick turn:12 hours	5-10days
	Usual time:3-4days
4 Layers	Quick turn:24 hours;	8-15days
	Usual time:5-6days
6 Layers	Quick turn:48 hours;	10-16days
	Usual time:6-8days
8 Layers	Quick turn:72 hours;	16-18days
	Quick turn:72 hours;
10 Layers	Quick turn:72 hours;	18-20days
	Quick turn:72 hours;

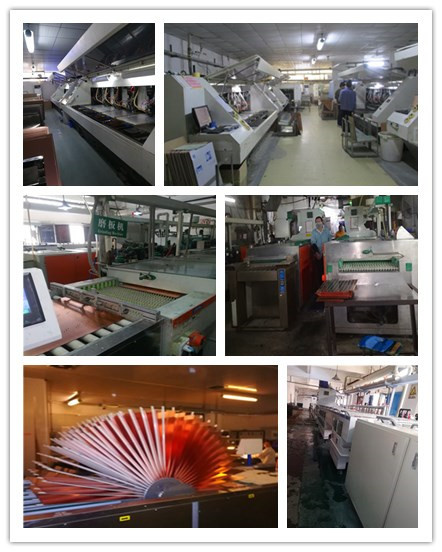

Workshop

Our advantage is competitive prices with quick quotation, manufacture and delivery, especially for samples, low to mid volume orders. Welcome to contact us for any inquiries. Thank you!

Shenzhen Shared PCB Electronics Co., Ltd is a professional manufacturer of Printed Circuit Board(PCB). Products include Single layer, Double sided, Multilayers of Rigid PCBs. High quality with favorable price.

After several years of rapid development, we introduced international advanced conductive polymer film technology, character printing technology, PLC automatic control line, plating line and most of full automatic equipments to ensure reliable quality. We have more than 300 staffs, and through the experienced technical staffs and management personnel, our PCB manufacture capability over 30, 000 square meters per month.

We offer Competitive prices, Efficient production time and Good after-sales service, and stick to the principle of quality first, service first, continuous improvement and innovation to meet the customers.

Welcome to contact us for any inquiries. Thank you!
