Quick Turn Small Run PCB Manufacture with Assembly Service
| Price: |
US $ 0.98-1.34/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Structure: |
Multilayer Rigid PCB |
| Material: |
Polyester Glass Fiber Mat Laminate |
| Production Process: |
Subtractive Process |
Product Description
Quick Turn Small Run PCB Manufacture with Assembly Service
Manufacture Assembly CapabilitiesIt is a trend that product design company outsources manufacture assembly globally and only focuses on its advantages such as R&D, sales etc. In this way, product design company can push projects and earn the marketplace at very lost cost and with high efficiency, which is huge important for startup programs. | Total Pad Size | Standard | Advanced |
| Capture Pad | Drill + 0.008 | Drill + 0.006 |
| Landing Pad | Drill + 0.008 | Drill + 0.006 |
| BC Mechanical Drill (Type III) | 0.008 | 0.006 |
| Laser Drill Size | 0.004-0.010 | 0.0025 |
| Material Thickness | 0.0035 | 0.0025 |
| Stacked Via | Yes | Yes |
| Type I Capabilities single & Double Deep | Yes | Yes |
| Type II Capabilities Buried Vias with Microvias | Yes | Yes |
| Type III Capabilities | Yes | Yes |
| Copper Filled Microvia | Yes | Yes |
| Smallest Copper Filled Microvia | 0.004 | 0.0025 |
| Copper Filled Microvia Aspect Ratio | 0.75:1 | 1:01 |
| Smallest Laser Microvia Hole Size | 0.004 | 0.0025 |
| Laser Via Aspect Ratio (Depth:Diameter) | 0.75:1 | c |
PCB Assembly CapabilitiesIf bare PCB is bone, PCB assembly is flesh and blood. PCB manufacture assembly highly determines the total quality of PCBA funtions. Our sophisticated engineers excute SOPs and weekly training to ensure the manufacturing processes. Advanced SMT lines can catch up with your demand of high-precision soldering, such as 0201, 0.25mm BGAs, PQFP, PLCC, SOP, SOJ etc. Now we have 6 SMT assembly lines and 4 DIP lines. | Turn Times | Selected Volume | Selected Solder Types |
| Same day through four weeks turns | No minimum order quantity | Leaded |
| Scheduled deliveries | Engineering prototypes | Lead-free/RoHS compliant |
| | Low cost first article builds | No-clean process available |
| Parts Procurement | Selected Stencils | Selected Ball Grid Arrays (BGA) |
| Turnkey | Laser cut stainless steel | As small as .5mm pitch |
| Kitted/Consigned | Nano-coating available | All BGA placements are x-ray inspected |
| Partial Turnkey | | |
| Assembly Types | Selected Component Types | Selected Other Capabilities |
| Surface Mount (SMT) | As small as 0402 package | Pitch components as small as 15 mil |
| Thru-hole | As small as 0201 with design review | Repair/Rework services |
| Mixed Technology (SMT/Thru-hole) | | Mechanical Assembly |
| Single or double sided placement | | Box Build/Electromechanical Assembly |
| | | Sub-assemblies |

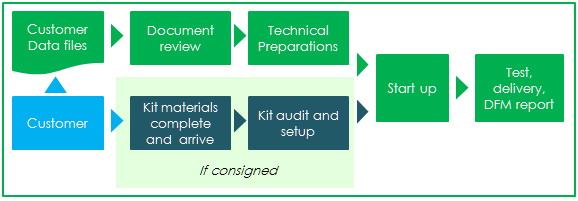

PCB Assembly Process
About UsAs a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10,000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15,000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.If you have any questions about PCB manufacture, feel free contact us any time.
As a service-leading PCB manufacturing and PCB assembly (PCBA) partner, NOD Electronics strives to support international small-medium business with 10+ years engineering experience in Electronic Manufacturing Services (EMS). Our headquarter is located in Guangzhou, China. We have 10, 000 square meters plant, 287 employees and 42 engineers, monthly capabilities of 15, 000 square meters PCB design & fabrication and 80 million spot SMT. We were approved by ISO9001-2008, TS16949, UL, CE, RoHS.
We strive to be your rightest partner in electronic manufacturing serivce with a commitment from creative team members. Do you agree that every electronic product has its soul, bearing the designer's product concept, just like the Apples and Steve Jobs? Electronic product is a bridge between the customer and designer rather than a cold and ruthless object. Although they have no verbal communication, they have soul connection in between.
So, we perform and create a bridge, which turns your concept or design into a product and present in front of the customers by offering reliable manufacturing solutions and engineering support, including New Product Introduction (NPI), Printed Circuit Board (PCB) design, Printed Circuit Board Assembly (PCBA), Casing (plastic & mental) solutions.
