QVR PVC Auto Cable, Low Voltage Car Cable for Automotive Used

Name: QVR PVC Auto Cable, Low Voltage Car Cable for Automotive Used
Brand: all-electronics-online.com
SKU: 712380162
Availability: InStock
Rating: 4.5 (149 reviews)

Price:	US $ 0.2-0.3/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QVR
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Copper
Insulation Material:	PVC
Certification:	RoHS
Range Of Application:	for Autos or Elctrics
Brand:	Sansen

Product Description

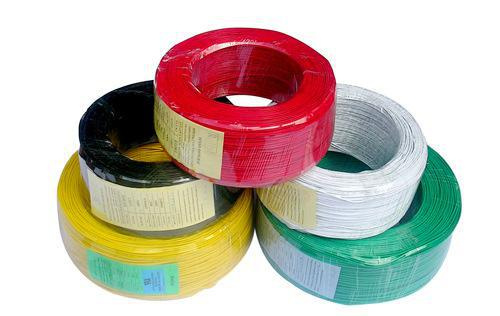

QVR PVC Auto Cable, Low Voltage Wire of Automotive Used
QVR cable

Applications:
To be used in the dry or wet situations, specially in vehicles and Instruments

Properties:
The cables have excellent oil resistance, solvent resistance, heat resistance, scrape resistance and low temperature resistance properties due to its special insulation materials.
Working temperature: +105 degree
Standard: GB9238-88
Structure:
Conductor: Copper acc. To VDE 0295 CLASS 5
Insulation: 105 degree flame retardant PVC
Color is optional
Insulation resistance at +70 degree>/=109 nm
Test voltage for insulation: Insulation thickness bTesting voltage: 2.5KV
Options: As request

Type	Specification mm 2	Conductor. No.	Conductor Dia (mm)	Weight (Kg/Km)	Insulation O.D. (Down)		Insulation O.D. (Up)
QVR	0.2	13	0.14	3.8	1.2	~	1.4
QVR	0.3	20	0.14	4.7	1.3	~	1.5
QVR	0.4	26	0.14	6.2	1.5	~	1.7
QVR	0.5	33	0.14	10.0	2.1	~	2.3
QVR	0.75	49	0.14	13.1	2.4	~	2.6
QVR	1	35	0.19	15.9	2.5	~	2.7
QVR	1.5	53	0.19	21.0	2.8	~	3.0
QVR	2.5	89	0.19	32.8	3.5	~	3.7
QVR	4	56	0.30	51.3	4.3	~	4.5
QVR	6	84	0.30	71.9	5.2	~	5.4
QVR	10	84	0.40	124.6	6.7	~	6.9
QVR	16	126	0.40	178.5	7.8	~	8.0
QVR	25	196	0.40	279.6	9.7	~	9.9
QVR	35	276	0.40	380.6	11.1	~	11.5
QVR	50	396	0.40	537.9	13.3	~	13.7
QVR	70	557	0.40	742.2	15.3	~	15.9
QVR	95	756	0.40	970.6	17.7	~	18.3
QVR	120	955	0.40	1221.6	19.5	~	20.1

FAQ:
Q1. What kind of products can your company supply?
A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF, EXW term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
A: Yes, we can.

Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.

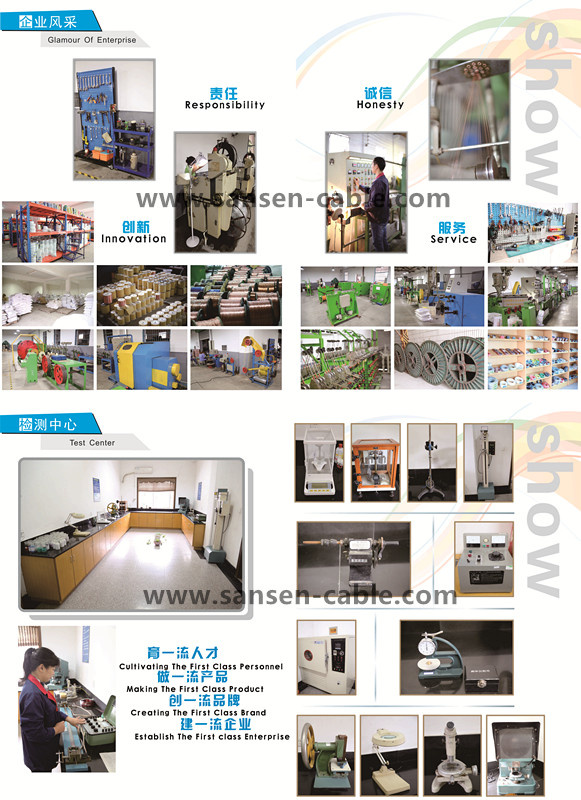

We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.

At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.

We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
